Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

24-Slot 2.5" Disk Backplane

<a href="../../Systems/SupportHeaders/SCSI_SFX4270_M2_24Slot_Bkpl.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

511-1511 541-4303 7049258 7049260

FAB 271-1511 Backplane Assembly
Backplane 511-1511 FAB 271-1511 Backplane Assembly
Backplane 7049258

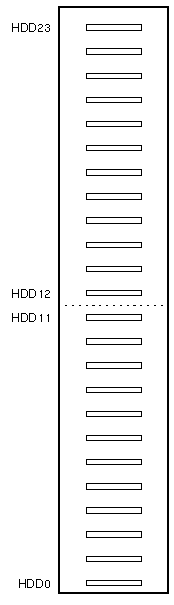

Front View

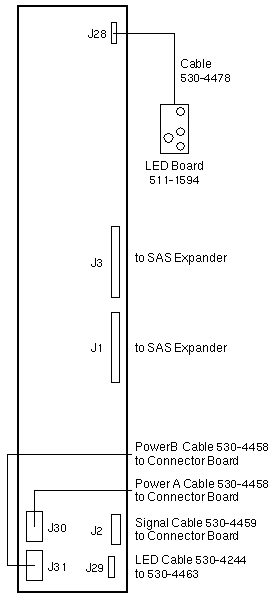

Rear View

Sun Fire X4270 M2 Codename: Lynx 2U (Hyde+)

Notes

Connector board connectors J5 and J3 are designated Power A and Power B.
24-Slot Backplane connectors J30 and J31 are designated Power A and Power B.

References

Sun Fire X4270 M2 Server Documentation.
