8-Port 6Gbps SAS-2 RAID HBA

Codename: Niwot-INT

Option SGX-SAS6-R-INT-Z

371-4746	371-4982	7050794
Lithium Ion Battery BBU07 August 2009	Lithium Ion Battery BBU08 August 2010	Lithium Ion Battery BBU08 >30% Charge August 2012

375-3644	375-3701	7047503
LSI L3-25239-xx B2 Liberator ASIC x8 PCI Express Battery 371-4746 August 2009	LSI L3-25239-xx B4 Liberator ASIC x8 PCI Express Battery 371-4982 August 2010	LSI L3-25239-xx B4 Liberator ASIC x8 PCI Express Battery 7050794 August 2012

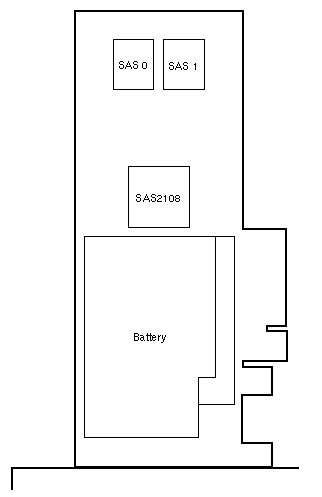

Additional Information & Views

Notes

1. The minimum Solaris OS is Solaris 10 10/09 per 820-7885-11 of August 2010.
2. The recommended minimum Solaris OS is Solaris 10 01/13 per E22410-05 of September 2013.
3. For the latest recommended OS support levels, see the Installation Guide.
4. The 8-Port SAS HBA was released in August 2009. (WO_41911)
5. BBU08 allows the operational range of the HBA to increase from 45C to 55C.
6. Only install this HBA in X4470 and X4470 M2 Slot-4.
7. X4470 ambient temperature with this HBA installed is 5° to 32° Centigrade.
8. X4470 M2 ambient temperature with this HBA installed is 5° to 32° Centigrade.
9. PCI Identifiers are Vendor ID 0x1000, Device ID 0x0079, and Subsystem ID 0x9263.
10. Vital Product Data VPD=PN is 375-3701 for both part numbers.

Exadata Notes

1. Support of the BBU08 battery PN#371-4982 or as a replacement for BBU07 PN#371-4746 requires
   minimum _LSI HBA_ firmware package build 12.9.0-0037 available in Exadata image patch update
   11.2.2.1.1 or later. Refer to MOS note 888828.1 for the latest image patch details.

References

1. Sun Storage 6 Gb SAS PCIe RAID HBA Documentation.
2. Sun Engineering Specification, 950-6031.
