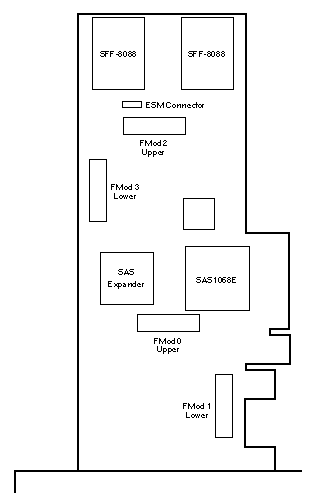

Flash Accelerator F20

Codename: Aura

Option XTA-FAS-S3IE96GB

371-4650 511-1275 511-1500
5.4V/11F
ESM
40mm Wire Length
see ESM page		 FAB 271-1275
without Memory		 FAB 271-1500
without Memory
541-3731 7075796 555-1960 555-1970
96GB Memory
XTA-FAS-S3IE96GB		 96GB Memory
F20 + ESM + FMOD		 F20 ESM CIC Kit
371-4650 + 511-1500
Cover + Spacer + Rivet		 F20 FMOD Clip Kit
Clip 330-5058






Notes

  1. The minimum Solaris operating system is Solaris 10 5/09.
  2. The x-option includes Low Profile Bracket 341-5571 installed.
  3. The x-option includes Standard Profile Bracket 341-5730 in the box.
  4. The F20 is used in the X4275 as part of the Oracle Exadata V2.
  5. F511-1275 does not include Capacitor Cover 330-5057 or ESM 371-4650.
  6. F511-1500 does not include Capacitor Cover 330-5057 or ESM 371-4650.
  7. 511-1275 was released in September 2009.
    511-1500 was released in November 2009. (WO_42353)
  8. Customer Intensive Care Kit 555-1960 was released in January 2010. (WO_42655)
  9. SPARC Enterprise M4000/M5000/M8000/M9000 requires Firmware XCP 1102.
  10. See Product Notes for important information on the use of one of the two ESM (Energy Storage Module) Monitoring Utilities to determine when to replace the ESM.
    The ILOM ESM Monitoring Option described in the Product Notes requires Firmware 7.2.7.d
    (otherwise the minimum Firmware requirement is 7.2.4.e).

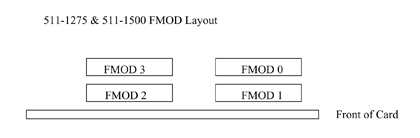

  11. See FMODs available for the F20 card.

Reference

  1. Sun Flash Accelerator F20 PCIe Card Documentation.

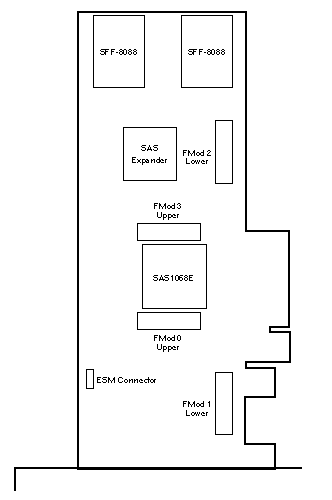

Flash Accelerator F20 M2

Codename: Aura 1.1

371-4953 511-1646 541-4416 541-4417
371-4953 FRU
5.4V/11F ESM
35mm Wire Length
see ESM page		 FAB 271-1646
without ESM
Without FMOD
Without Heatsinks
Without ESM Bracket		 F20 M2 FRU
Without ESM
Without FMOD		 96GB Assy/FRU
ESM 371-4953
FMOD 371-5014






Notes

  1. The x-option includes Low Profile Bracket 341-5571 installed.
  2. The x-option includes Standard Profile Bracket 341-5730 in the box.
  3. ESM 371-4650 should never be used on F20 M2 card. If replacing a F20 card FRU 511-1275 or 511-1500 with a F20 M2 card FRU 541-4416, then the ESM should be replaced as well. FMOD 371-4415 may be used on F20 M2 cards, as long as the FMODs have been updated with firmware D20Y shipped with Exadata Storage Cell image 11.2.2.1.0 and later.

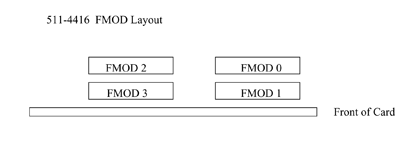

  4. See FMODs available for the F20 M2 card.

Reference

  1. Sun Flash Accelerator F20 PCIe Card Documentation.
