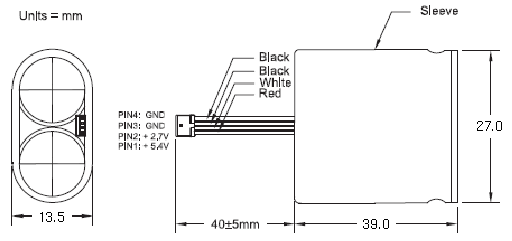

Energy Storage Module (ESM)

Go to 371-4650
Go to 371-4953

<a href="../../Systems/SupportHeaders/DCPOWER_ESM_371_4650.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-4650

No Specification

7018497 7018498 7018499

4-Pack
Pkg FRU 12-Pack
Pkg FRU 28-Pack
Pkg FRU

Specifications

Model PBLL-11/5.4

Voltage +5.4V

Capacitance 11F

Capacitance
Tolerance +20%
-10%

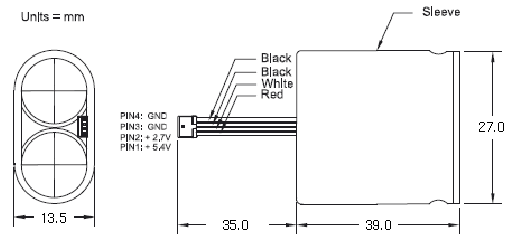

Energy Storage Module (ESM)

<a href="../../Systems/SupportHeaders/DCPOWER_ESM_371_4650_SH_ANCHOR_4953.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-4953 7051731 7051732 7051733

No Specification 4-Pack
Pkg FRU 12-Pack
Pkg FRU 28-Pack
Pkg FRU

Specifications

Model PBLL-11/5.4

Voltage +5.4V

Capacitance 11F

Capacitance
Tolerance +20%
-10%
