Hitachi HUC109030CSS600 (300.0GB)

2 1/2" 10000 RPM 6Gb/Sec Serial Attached SCSI

Option XRB-SS2ND-300G10K2
Option XRB-SS2CF-300G10K2
Option XRB-SS2CM-300G10K2
Option XRA-SS2NF-300G10K2<
Options SELX3E11Z / SESX3G12Z / SE6X3G12Z
Options 7100407 / 7100410 / 7105212

7045226 7066794
15mm Height
Cobra E		 15mm Height
Cobra E
Common Drive P/N
540-7903 542-0316 542-0384 542-0387
Nemo Bracket FRU
Disk 7045226
Bracket 541-3004
SELX3E11Z		 NEBS Nemo Bracket FRU
Disk 7045226
542-0384 + 350-1286
XCP32X0-RTM-300GBD		 NEBS Nemo Bracket FRU
Disk 7045226
Bracket 541-3004
XRB-SS2ND-300G10K2		 Mantaray Bracket FRU
Disk 7045226
Bracket 371-4760
XRB-SS2CM-300G10K2
542-0388 542-0422 7012423
Marlin Bracket FRU
Disk 7045226
15mm Bkt 541-2123
XRB-SS2CF-300G10K2
SESX3G12Z
SE6X3G12Z		 NEBS Marlin Bracket FRU
Disk 7045226
15mm Bkt 541-2123
XRA-SS2NF-300G10K2		 Nemo Bracket FRU
Disk 7045226
15mm Bkt 541-3004
Option 7100410
7020384 7044283 7064133
Nemo Bracket FRU
Disk 7045226
15mm Bracket 541-3004
Option 7100407		 Evo Bracket FRU
Disk 7045226
2.5" Bracket 7044311		 Marlin Bracket FRU
Disk 7045226
Disk 7066794
15mm Bkt 541-2123
Option 7105212

Notes

  1. Drive 7045226 was released in September 2012. (E0012120)
  2. Drive 7045226 was added to 542-0384, 542-0387, 542-0388 and 542-0422 in September 2012. (E0012120)
  3. Drive 7045226 was added to 7020384 in September 2012. (E0012159)
  4. Drive 7045226 was added to 540-7903 and 7012423 in September 2012. (E0012436)
  5. Drive 7045226 was added to 7064133 in July 2013. (E0016844)
  6. Assembly 7044283 with 7045226 was released in December 2012. (E0010727)

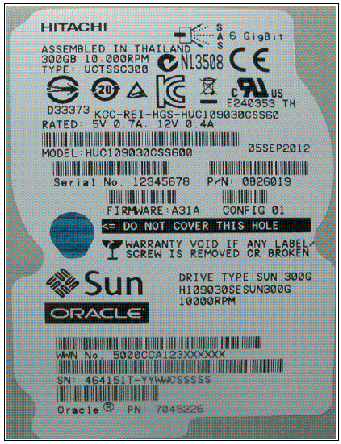

  7. The Hitachi model number on the serial number label is HUC109030CSS600.
  8. The Sun model number on the serial number label is H109030SESUN300G.
  9. The Product Identification in SCSI Inquiry bytes 16-31 is H109030SESUN300G.
