Hitachi HUC103014CSS600 (146.8GB)

2 1/2" 10000 RPM 6Gb/Sec Serial Attached SCSI

<a href="../../Systems/SupportHeaders/DISK_Htchi_HUC103014CSS600.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Option SEMX3B11Z
Options SEVX3C11Z / SESX3C11Z
Option XRA-SS2CF-146G10K2
Option XRB-SS2CD-146G10K
Option XRB-SS2CF-146G10K

390-0450

15mm Height
Cobra C

540-7407 540-7864 540-7868 542-0217 7021888

Nemo Bracket FRU
15mm Bracket 541-3004
SEMX3B11Z Nemo Bracket FRU
15mm Bracket 541-3004
XRB-SS2CD-146G10K
SEVX3C11Z Marlin Bracket FRU
15mm Bracket 541-2123
XRB-SS2CF-146G10K
SESX3C11Z Marlin Bracket FRU
15mm Bracket 541-2123
XRA-SS2CF-146G10K2 Nemo Bracket FRU
15mm Bkt 541-3004
SEMX3B11Z

Notes

Drive 390-0450 was released and added to 540-7864 and 540-7868 in April 2009. (WO_41192)
Drive 390-0450 was added to 540-7407 in November 2009. (WO_42332)
Assembly 540-7864 was added to SEVX3C11Z in April 2009. (WO_41161)
Assembly 540-7868 replaced 540-7355 in SESX3C11Z in April 2009. (WO_40981, WO_41247)
Assembly 542-0217 with 390-0450 was released in August 2009. (WO_41790)
Drive 390-0450 was added to 540-7407 in November 2009. (WO_42332)
Assembly 7021888 with 390-0450 was released in September 2011. (E0005261)

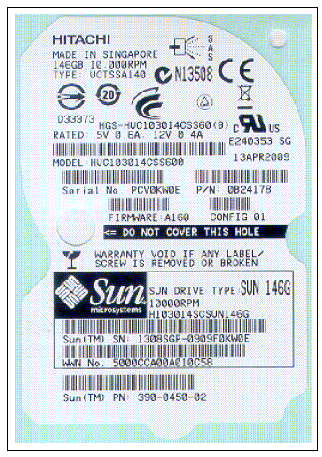

The Hitachi model number on the serial number label is HUC103014CSS600.
The Sun model number on the serial number label is H103014SCSUN146G.
The Product Identification in SCSI Inquiry bytes 16-31 is H103014SCSUN146G.
