DC Power Distribution Board

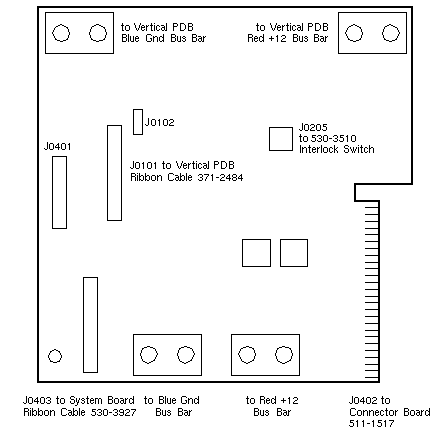

Vertical PDB

Go to Horizontal PDB

341-3166 341-3167
Blue Gnd Bus Bar Red +12 Bus Bar
511-1513 541-4223
Vertical PDB PDB Assy/FRU
VPDB 511-1513
7049252 7049253
Vertical PDB PDB Assy/FRU
VPDB 7049252

Sun Fire X4270 M2



SPARC T3-1 / T4-1


Sun Fire X4270 M2 Codename: Lynx 2U (Hyde+)
Oracle Exadata X2-2 Codename: EX2-2 (Plus)
Oracle Exadata X2-8 Codename: EX2-8 (Plus-Plus)
ZFS Storage 7120 Codename: Amber Road (Iwashi+)
SPARC T3-1 Codename: Serpa
SPARC T4-1 Codename: Serpa YF

X4270 M2 Notes

  1. The Bus Bar and PDB to Chassis screws include captive washers.
  2. The X4270 M2 System Board does not need to be removed to replace the PDB.

SPARC T3-1 / T4-1 Notes

  1. The Bus Bar screws include captive washers.
  2. The PDB to Chassis screw does not include captive washers.
  3. The PDB to Power Supply Cage screw does not include captive washers.
  4. The SPARC T3-1 System Board does not need to be removed to replace the PDB.

References

  1. Sun Fire X4270 M2 Server Documentation.
  2. SPARC T3-1 Server Documentation.
  3. SPARC T4-1 Server Documentation.


DC Power Distribution Board

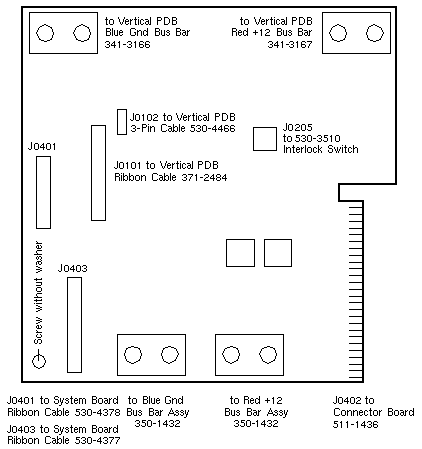

Horizontal PDB

Go to Vertical PDB

341-3166 341-3167
Blue Gnd Bus Bar Red +12 Bus Bar
511-1437 541-4223
Horiztontal PDB PDB Assy/FRU
HPDB 511-1437
7051687 7049253

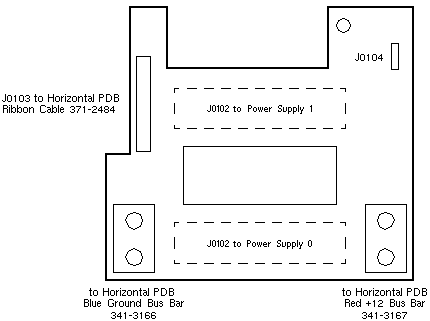

Horiztontal PDB
 PDB Assembly
HPDB 7051687

Sun Fire X4270 M2


SPARC T3-1 / T4-1

Sun Fire X4270 M2 Codename: Lynx 2U (Hyde+)
Oracle Exadata X2-2 Codename: EX2-2 (Plus)
Oracle Exadata X2-8 Codename: EX2-8 (Plus-Plus)
ZFS Storage 7120 Codename: Amber Road (Iwashi+)
SPARC T3-1 Codename: Serpa
SPARC T4-1 Codename: Serpa YF

X4270 M2 Notes

  1. The Bus Bar and PDB to Chassis screws include captive washers.
  2. The X4270 M2 System Board does not need to be removed to replace the PDB.
  3. Remove the Horizontal PDB before removing the Connector Board.

SPARC T3-1 / T4-1 Notes

  1. The Bus Bar screws include captive washers.
  2. The PDB to Chassis screw does not include captive washers.
  3. The PDB to Power Supply Cage screw does not include captive washers.
  4. The SPARC T3-1 System Board does not need to be removed to replace the PDB.

References

  1. Sun Fire X4270 M2 Server Documentation.
  2. SPARC T3-1 Server Documentation.
  3. SPARC T4-1 Server Documentation.
