Hitachi HUC103030CSS600 (300.0GB)

2 1/2" 10000 RPM Serial Attached SCSI 6.0Gb/s

Option XRA-SS2CD-300G10K
Option XRA-SS2CF-300G10K
Option XRA-SS2CM-300G10K2
Option XRB-SS2NF-300G10K2
Options SEVX3G11Z / SESX3G11Z

390-0451
15mm Height
Cobra C
540-7865 540-7869 540-7903 540-7988
Nemo Bracket FRU
15mm Bracket 541-3004
XRA-SS2CD-300G10K
SEVX3G11Z		 Marlin Bracket FRU
15mm Bracket 541-2123
XRA-SS2CF-300G10K
SESX3G11Z		 Nemo Bracket FRU
Bracket 541-3004		 Nemo Bracket FRU
Bracket 541-3004
SEMX3C11Z
542-0300 542-0315 542-0424
Mantaray Bracket FRU
Bracket 371-4760
XRA-SS2CM-300G10K2		 Netra CP3020 FRU Marlin Bracket FRU
15mm Bracket 541-2123
XRB-SS2NF-300G10K2

Notes

  1. Drive 390-0451 was released and added to 541-7865 and 541-7869 in April 2009. (WO_41192)
  2. Drive 390-0451 was added to 541-7988 in December 2009. (WO_42332)
  3. Assembly 542-0300 with 390-0451 was released in February 2010. (WO_42640)
  4. Assembly 542-0424 with 390-0451 was released in December 2010. (E0000630)
  5. Drive 390-0451 was used in 540-7903 in March 2013. (D0002191)
  6. Drive 390-0451 was used in 540-7903 in April 2013. (D0002464)
  7. FRU F540-7988 was inactivated in September 2011. (E0005261)

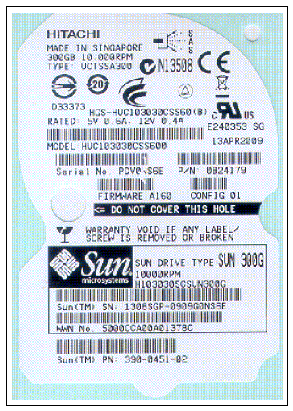

  8. The Hitachi model number on the serial number label is HUC103030CSS600.
  9. The Sun model number on the serial number label is H103030SCSUN300G.
  10. The Product Identification in SCSI Inquiry data bytes 16-31 is H103030SCSUN300G.
