Hitachi HUC109060CSS600 (600.0GB)

2 1/2" 10000 RPM 6Gb/Sec Serial Attached SCSI

Option XRA-SS2ND-600G10K2
Option XRA-SS2CF-600G10K2
Option XRA-SS2CM-600G10K2
Option XRA-SS2NF-600G10K2
Option XRB-SS2ND-600G10K2
Options SELX3F11Z / SESX3K11Z / SES6X3K11Z
Option 7100979 / 7105214 / 7106972

7045228 7066795
15mm Height
Cobra E		 15mm Height
Cobra E
Common Drive P/N
542-0287 542-0289 542-0311
Marlin Bracket FRU
Disk 7045228
15mm Bracket 541-2123
SESX3K11Z
SES6X3K11Z
XRA-SS2CF-600G10K2		 NEBS Nemo Bracket FRU
Disk 7045228
Bracket 541-3004
XRB-SS2ND-600G10K2		 Mantaray Bracket FRU
Disk 7045228
Bracket 371-4760
XRA-SS2CM-600G10K2
542-0338 542-0423
Nemo Bracket FRU
Disk 7045228
Bracket 541-3004
SELX3F11Z		 NEBS Marlin Bracket FRU
Disk 7045228
15mm Bracket 541-2123
XRA-SS2NF-600G10K2
7020386 7064135 7077588 7087722
Nemo Bracket FRU
Disk 7045228
Bracket 541-3004
Option 7100979		 Marlin Bracket FRU
Disk 7045228
Disk 7066795
15mm Bracket 541-2123
Option 7105214		 2500 M2 Series FRU
Disk 7045228
Bracket 7077832		 Marlin Bracket FRU
15mm Bracket 541-2123
Disk 7045228
OKM/MYSQL Installed

Notes

  1. Drive 7045228 was released and was added to 542-0287, 542-0289, 542-0311 and 542-0423 in September 2012. (E0012120)
  2. Drive 7045228 was added to 7020386 in September 2012. (E0012159)
  3. Drive 7045228 was added to 542-0338 in September 2012. (E0012436)
  4. Assembly 7064135 with 7066795 was released in December 2012. (E0015315)
  5. Drive 7045228 was added to 7064135 in July 2013. (E0016844)
  6. Assembly 7077588 with drive 7045228 was released in August 2013. (E0016557)
  7. Assembly 7087722 with drive 7045228 was released in December 2013. (E0018408)

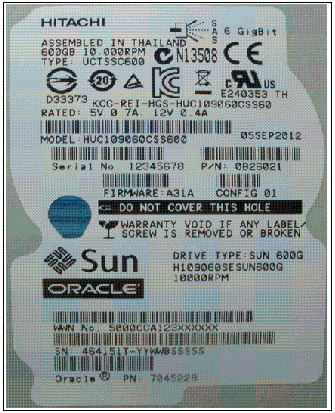

  8. The Hitachi model number on the serial number label is HUC109060CSS600.
  9. The Sun model number on the serial number label is H109060SESUN600G.
  10. The Product Identification in SCSI Inquiry bytes 16-31 is H109060SESUN600G.
