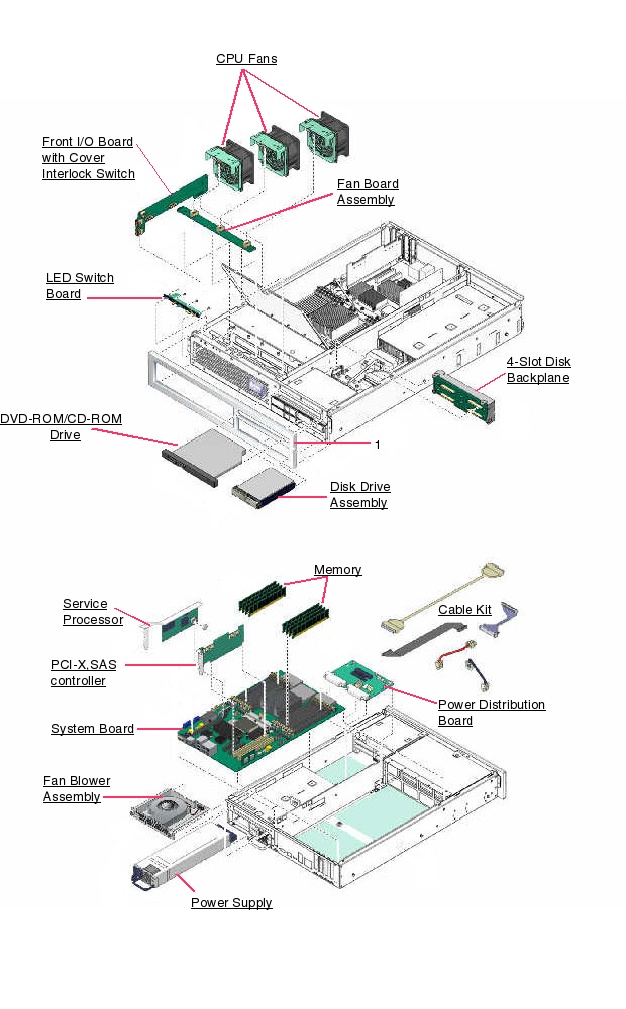

Sun Fire T2000 - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

System Notes:
The non RoHS compliant Sun Fire T2000 server uses a 550 Watt power supply and uses 1 of the 2 PCI-X slots for the SAS controller. The Sun Fire T2000 (post July 2006) server uses a 450 Watt power supply and support for the SAS controller is on the I/O board.

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-1204 ² [C]	3V Lithium Coin Cell Battery	n/a

² Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
X311L [S]	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
X312E [S]	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
X312F [S]	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
X312G [S]	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
X312L [S]	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
X314L [S]	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
X317L [S]	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X320A [S]	Localized Power Cord Kit - North America/Asia
X320A [S]	180-2164 [C] Buy	IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black	n/a
X332T [S]	International Power Cord Kit
X332T [S]	180-2071 [C]	Blue 16A IEC 309 to IEC 320 C13 International 4.0M	n/a
X333A-25-10-IL [S]	Localized Power Cord Kit Israel
X333A-25-10-IL [S]	180-2130 [C] Buy	IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black	n/a
X333A-25-15-JP [S]	Localized Power Cord Kit Japan
X333A-25-15-JP [S]	180-2243 [C] Buy	IEC 320 C13 to PSE 5-15P, 10A/125V, 2.5M, Black	n/a
X340L [S]	Power Kit for North America, L6-20 20A Twist Lock Plug
X340L [S]	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X383L [S]	Localized Power Cord Kit - Danish
X383L [S]	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
X384L [S]	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
X386L [S]	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	F530-3399 [F]	Cable Kit [SKU]	n/a
	530-3362	Front I/O Board to System Board Cable	n/a
	530-3364	Disk Backplane Power Cable	n/a
	530-3367	PDB to System Board (DVD/PSU/I²C) cable	n/a
	530-3446	SAS Cable Set	n/a
	530-3442	HDD3 to 90° PHY3 SAS Cable, 810mm	n/a
	530-3443	HDD2 to 90° PHY2 SAS Cable, 716mm	n/a
	530-3444	HDD1 to 90 ° PHY1 SAS Cable, 704mm	n/a
	530-3445	HDD0 to 90° PHY0 SAS Cable, 608mm	n/a
	541-0305	DVD Cable Assembly	n/a
	530-3365	DVD Cable	n/a
	541-0745	Blower Cable	n/a
	541-0919	Bus Bar Set	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1235A [S]	375-3260 ³ [C]	PCI-X Dual Port 4x InfiniBand Host Channel Adapter - Low Profile	n/a
X1236A-Z [S]	375-3382 [C]	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X1333A-4 [S]	375-3418 [C]	Infiniband PCI-X Card	n/a
X6000A ⁴ [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

³ Infiniband Host Channel Adapter includes no cables, so cable option 9280 or 9281 should be ordered with card.
⁴ Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7022 [F]	4-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2CD-146G10KZ [S]	540-7151 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2CD-73G10K [S]	541-0323 [C]	73GB 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0211	Fujitsu MAV2073RC [MAV2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
XRA-SS2CD-73G10KZ [S]	540-6611 [C]	73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
4455A-4 [S]	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
	501-7414 [C]	10Gb/sec PCI-X Ethernet Adapter	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
4466A [S]	375-3361 [C]	10Gb/sec XFP Optical Transceiver Single Mode Fibre	n/a
	501-7414 [C]	10Gb/sec PCI-X Ethernet Adapter	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
5544A [S]	10Gb PCI-X Ethernet Adapter w/ Transceiver (standard brackets)
	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
	501-7036 [C]	10Gb/sec PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
5544A-4 [S]	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
	501-7413 [C]	10Gb PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
6644A [S]	375-3361 [C]	10Gb/sec XFP Optical Transceiver Single Mode Fibre	n/a
	501-7413 [C]	10Gb PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
X1027A-Z ⁵ [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X4150A [S]	501-6719 [C]	GigaSwift Ethernet UTP (GCS)	n/a
X4150A-2 [S]	501-7415 [C]	GigaSwift Ethernet UTP (GCS)	n/a
X4151A [S]	501-6762 [C]	GigaSwift Ethernet MMF (GFS)	n/a
X4151A-2 [S]	501-7430 [C]	GigaSwift Ethernet MMF (GFS)	n/a
X4447A-Z [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	511-1422 [C] 501-7606 [C]
	371-2207	Bracket Low-Profile	n/a
X5544A ⁶ [S]	10Gb PCI-X Ethernet Adapter, no transceiver
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
	501-7036 [C]	10Gb/sec PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
X5544A-4 [S]	10Gb PCI-X Ethernet Adapter, no transceiver
	501-7413 [C]	10Gb PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
X5558A [S]	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
X5559A [S]	375-3361 [C]	10Gb/sec XFP Optical Transceiver Single Mode Fibre	n/a
X5560A-Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	501-7163	10Gb/sec PCI-X Ethernet Adapter	n/a
n/a	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a
n/a	501-7606 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
	371-2207	Bracket Low-Profile	n/a
	371-2348	Bracket Standard	n/a
n/a	511-1422 [C]	Quad Port GbE PCI Express, UTP	501-7606 [C]
n/a	371-2207	Bracket Low-Profile	n/a

⁵ Requires either SR X5558A or LR X5560A-Z XFP Transceiver.
⁶ Standard bracket 370-7665 is installed. Low-profile bracket 370-7792 is included. Order Option 4455A for factory integration.

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6917 [F]	Server Fan Board (A65/A87)	n/a
n/a	541-0275 [C]	CPU fan	n/a
n/a	541-0645 [C]	Rear Fan Tray	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-EM4-Z [S]	375-3398 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [C]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-EM4-Z [S]	7058528 [C]	4Gb PCI-X Dual FC Host Adapter	375-3399 [C]
SG-XPCI2FC-QF2 [S]	375-3108 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2 [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF2-Z [S]	375-3363 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [C]	4Gb PCI-X Dual FC Host Adapter	375-3294 [C]
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM4 [S]	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	375-3294 [C]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	375-3399 [C]	4Gb PCI-X Dual FC Host Adapter	n/a

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3000A [S]	375-3545 [C]	XVR-300 x8 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 ⁷ [C]	DMS-59 to Dual DVI-I Cable, 215mm	n/a
X3777 [S]	375-3433 [C]	XVR-200 Graphics Accelerator	n/a

⁷ Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6978 [F]	Front I/O Board w/Cover Interlock Switch	n/a

NOTE:

SPARC Platforms (Sun Fire T1000/T2000) Device Path Information (article 1005907.1)

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X7800A [S]	1GB (2 × 512MB DDR2) Memory Expansion Kit
X7800A [S]	370-6207 [C]	512MB DDR2 DIMM, 533 MHz	n/a
X7801A [S]	2GB (2 × 1GB DDR2) Memory Expansion Kit
X7801A [S]	370-6208 [C]	1GB DDR2 DIMM, 533 MHz	n/a
X7802A [S]	4GB (2 × 2GB DDR2) Memory Expansion Kit
X7802A [S]	370-6209 [C]	2GB DDR2 DIMM, 533 MHz	n/a
X7803A [S]	8GB (2 × 4GB DDR2) Memory Expansion Kit
X7803A [S]	370-6210 [C]	4GB DDR2 DIMM	n/a

NOTE: DIMMS must be installed in sets of 8.
Two basic memory configurations are supported: 8-DIMM or 16-DIMM. All DIMMs must have identical capacity. An 8 DIMM configuration fully populates Rank 0 slots.

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6916 [F]	LED/Switch Board (A65/A87)	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1757 [C]	Type A203 550 Watt AC Input Power Supply	n/a
n/a	501-7021 ⁸ [F]	Power Distribution Board	n/a

⁸ An electronic copy of the chassis serial number is located in a CPROM at U20.
Use the ALOM setcsn command to set the chassis serial number after replacing the PDB and powering on the system.
The

Sun Fire T2000 Server Service Manual describes the required service commands.

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-7668 [C]	Cable Management Arm	n/a
n/a	370-7669 [C]	Slide Rail Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
XT20-DVD-RW	390-0251 [F]	Slimline 8X DVD-ROM / 24X CD-Writer	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1SCSI-LM320 [S]	375-3255 [C]	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SGX-SAS6-EXT-Z [S]	7047853 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3641 [C]
SGXPCI1SCSILM320-Z [S]	375-3366 [C]	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
n/a	370-7696 ⁹ ¹⁰ [C]	PCI-X SAS controller	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a
n/a	375-3641 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a

⁹ Use the OBP 'activate_volume' command to activate an inactive RAID volume when replacing the SAS controller. Requires 1064_FCode firmware revision 1.00.39. Refer to BugID 15309646 [SUNBT6378605} and patch id

122165.
¹⁰ 370-7696 is factory installed in Slot PCI-X 0 and controls internal disk drives.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-0569 [F]	4-Core, UltraSPARC T1, 1.0GHz System + I/O Board	n/a
	541-0598	CPU/Memory + I/O Board Assembly	n/a
	501-6843	CPU/Memory Board	n/a
	501-6955	I/O Board	n/a
n/a	541-0570 [F]	8-Core, UltraSPARC T1, 1.0GHz System + I/O board	n/a
	541-0598	CPU/Memory + I/O Board Assembly	n/a
	501-6843	CPU/Memory Board	n/a
	501-6955	I/O Board	n/a
n/a	541-0599 [F]	6-Core, UltraSPARC T1, 1.0GHz System + I/O Board	n/a
	541-0598	CPU/Memory + I/O Board Assembly	n/a
	501-6843	CPU/Memory Board	n/a
	501-6955	I/O Board	n/a
n/a	541-0827 [F]	8-Core, UltraSPARC T1, 1.2GHz System + I/O Board	n/a
	541-0598	CPU/Memory + I/O Board Assembly	n/a
	501-6843	CPU/Memory Board	n/a
	501-6955	I/O Board	n/a

NOTE: In the the Sun Fire T2000, the I/O and System Boards are a single assembly.

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7130 [F]	Service Processor	n/a
	150-1204 ¹¹ [C]	3V Lithium Coin Cell Battery	n/a
	525-2146 [F]	SSCC NVRAM	n/a

¹¹ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	541-0243	Front Bezel Assembly
NS	330-3955	Power Supply Air Baffle/Damper
NS	541-0231	Empty 4-Disk Drive/DVD Bay Assembly
NS	541-0325	DVD Bezel
NS	541-0565	CPU Fan Guard
NS	541-0585	Rear Top Cover Assembly
NS	541-0605 [F]	Blank Disk Drive Filler
