Sun SPARC Enterprise T2000 - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-1204 ¹ [C]	3V Lithium Coin Cell Battery	n/a

¹ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
X311L [S]	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
X312E [S]	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
X312F [S]	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
X312G [S]	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
X312L [S]	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
X314L [S]	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
X317L [S]	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X320A [S]	Localized Power Cord Kit - North America/Asia
X320A [S]	180-2164 [C] Buy	IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black	n/a
X321L [S]	North America/Asia Power Cords 4-Pack
X321L [S]	180-2023	IEC 320 C13 to NEMA 6-15P - 10A/250V 4.0M Black	n/a
X332T [S]	International Power Cord Kit
X332T [S]	180-2071 [C]	Blue 16A IEC 309 to IEC 320 C13 International 4.0M	n/a
X333A-25-10-IL [S]	Localized Power Cord Kit Israel
X333A-25-10-IL [S]	180-2130 [C] Buy	IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black	n/a
X333A-25-15-JP [S]	Localized Power Cord Kit Japan
X333A-25-15-JP [S]	180-2243 [C] Buy	IEC 320 C13 to PSE 5-15P, 10A/125V, 2.5M, Black	n/a
X333F-25-15-JP [S]	Localized Power Cord Kit Japan
X333F-25-15-JP [S]	180-2244 [C] Buy	IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black	n/a
X340L [S]	Power Kit for North America, L6-20 20A Twist Lock Plug
X340L [S]	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X383L [S]	Localized Power Cord Kit - Danish
X383L [S]	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
X384L [S]	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
X386L [S]	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	530-3365	DVD Cable	n/a
n/a	F530-3686 [F]	Cable Kit [SKU]	n/a
	530-3362	Front I/O Board to System Board Cable	n/a
	530-3364	Disk Backplane Power Cable	n/a
	530-3367	PDB to System Board (DVD/PSU/I²C) cable	n/a
	530-3440	SAS Cable Set	n/a
	530-3436	HDD0 to PHY0 SAS Cable, 508mm	n/a
	530-3437	HDD1 to PHY1 SAS Cable, 501mm	n/a
	530-3438	HDD2 to PHY2 SAS Cable, 356mm	n/a
	530-3439	HDD3 to PHY3 SAS Cable, 336mm	n/a
	541-0745	Blower Cable	n/a
	541-1472	Bus Bar Set	n/a
	541-1474	DVD Cable Assembly	n/a
	530-3365	DVD Cable	n/a
	375-3104	Paddleboard	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1235A [S]	375-3260 ² [C]	PCI-X Dual Port 4x InfiniBand Host Channel Adapter - Low Profile	n/a
X1236A-Z [S]	375-3382 [C]	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X1333A-4 [S]	375-3418 [C]	Infiniband PCI-X Card	n/a
X6000A ³ [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

² Infiniband Host Channel Adapter includes no cables, so cable option 9280 or 9281 should be ordered with card.
³ Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7755 [F]	4-Slot Disk Backplane	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
SEPX3A11Z [S]	540-7307 [C]	73GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
SEPX3C11Z [S]	540-7777 [C]	146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks	540-7151 [C]
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2CD-146G10KZ [S]	540-7151 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2CD-73G10KZ [S]	540-6611 [C]	73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1027A-Z [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X4150A [S]	501-6719 [C]	GigaSwift Ethernet UTP (GCS)	n/a
X4150A-2 [S]	501-7415 [C]	GigaSwift Ethernet UTP (GCS)	n/a
X4151A [S]	501-6762 [C]	GigaSwift Ethernet MMF (GFS)	n/a
X4151A-2 [S]	501-7430 [C]	GigaSwift Ethernet MMF (GFS)	n/a
X4447A-Z [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	511-1422 [C] 501-7606 [C]
	371-2207	Bracket Low-Profile	n/a
X5544A ⁴ [S]	10Gb PCI-X Ethernet Adapter, no transceiver
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
	501-7036 [C]	10Gb/sec PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
X5544A-4 [S]	10Gb PCI-X Ethernet Adapter, no transceiver
	501-7413 [C]	10Gb PCI-X Ethernet Adapter	n/a
	370-7665	Bracket Standard 10Gb PCI-X Ethernet	n/a
	370-7792	Bracket Low-Profile 10Gb PCI-X Ethernet	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a
n/a	501-7606 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
	371-2207	Bracket Low-Profile	n/a
	371-2348	Bracket Standard	n/a
n/a	511-1422 [C]	Quad Port GbE PCI Express, UTP	501-7606 [C]
n/a	371-2207	Bracket Low-Profile	n/a

⁴ Standard bracket 370-7665 is installed. Low-profile bracket 370-7792 is included. Order Option 4455A for factory integration.

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6917 [F]	Server Fan Board (A65/A87)	n/a
n/a	541-0275 [C]	CPU fan	n/a
n/a	541-0645 [C]	Rear Fan Tray	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-EM4-Z [S]	375-3398 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [C]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-EM4-Z [S]	7058528 [C]	4Gb PCI-X Dual FC Host Adapter	375-3399 [C]
SG-XPCI2FC-QF2-Z [S]	375-3363 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [C]	4Gb PCI-X Dual FC Host Adapter	375-3294 [C]
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM4 [S]	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM8-Z [S]	371-4295 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM8-Z [S]	7053433 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF8-Z [S]	371-4324 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	375-3294 [C]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	375-3399 [C]	4Gb PCI-X Dual FC Host Adapter	n/a

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3000A [S]	375-3545 [C]	XVR-300 x8 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 ⁵ [C]	DMS-59 to Dual DVI-I Cable, 215mm	n/a
X3777 [S]	375-3433 [C]	XVR-200 Graphics Accelerator	n/a

⁵ Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6978 [F]	Front I/O Board w/Cover Interlock Switch	n/a

NOTE:

SPARC Platforms (Sun Fire T1000/T2000) Device Path Information (article 1005907.1)

Memory
Option #	Manufacturing Part #	Description	Previous Part #
SEKX2A1Z [S]	1GB (2 x 512MB DDR2) Memory Expansion Kit
SEKX2A1Z [S]	370-6207 [C]	512MB DDR2 DIMM, 533 MHz	n/a
SEKX2B1Z [S]	2GB (2 x 1Gb DDR2) Memory Expansion Kit
SEKX2B1Z [S]	370-6208 [C]	1GB DDR2 DIMM, 533 MHz	n/a
SEKX2C1Z [S]	4GB (2 x 2GB DDR2) Memory Expansion Kit
SEKX2C1Z [S]	370-6209 [C]	2GB DDR2 DIMM, 533 MHz	n/a
SEKX2D1Z [S]	8GB (2 x 4GB DDR2) Memory Expansion Kit
SEKX2D1Z [S]	370-6210 [C]	4GB DDR2 DIMM	n/a
X7800A [S]	1GB (2 × 512MB DDR2) Memory Expansion Kit
X7800A [S]	370-6207 [C]	512MB DDR2 DIMM, 533 MHz	n/a
X7801A [S]	2GB (2 × 1GB DDR2) Memory Expansion Kit
X7801A [S]	370-6208 [C]	1GB DDR2 DIMM, 533 MHz	n/a
X7802A [S]	4GB (2 × 2GB DDR2) Memory Expansion Kit
X7802A [S]	370-6209 [C]	2GB DDR2 DIMM, 533 MHz	n/a
X7803A [S]	8GB (2 × 4GB DDR2) Memory Expansion Kit
X7803A [S]	370-6210 [C]	4GB DDR2 DIMM	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6916 [F]	LED/Switch Board (A65/A87)	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7021 ⁶ [F]	Power Distribution Board	n/a
n/a	F300-1735	Type A208 450 Watt AC Input Power Supply	n/a
	300-1735 [C]	Type A208 450 AC Input Watt Power Supply	n/a
	300-1817	Type A208 450 Watt AC Input Power Supply	n/a
	300-2110	Type A208 450 Watt Power Supply	n/a

⁶ An electronic copy of the chassis serial number is located in a CPROM at U20.

Use the ALOM setcsn command to set the chassis serial number after replacing the PDB and powering on the system.

The a href="http://download.oracle.com/docs/cd/E19076-01/sparc.t2k/index.html" target="_syshbk">Sun SPARC Enterprise T2000 Server Service Manual describes the required service commands.

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-7668 [C]	Cable Management Arm	n/a
n/a	370-7669 [C]	Slide Rail Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	390-0251 [F]	Slimline 8X DVD-ROM / 24X CD-Writer	n/a
n/a	541-1474	DVD Cable Assembly	n/a
	530-3365	DVD Cable	n/a
	375-3104	Paddleboard	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1SCSI-LM320 [S]	375-3255 [C]	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
SG-XPCI8SAS-E-Z [S]	7050791 [C]	3Gb PCI-X SAS 8-Port Host Adapter	375-3488 [C]
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SGXPCI1SCSILM320-Z [S]	375-3366 [C]	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
SGXPCIESAS-R-EXT-Z [S]	375-3537 [C]	8-Port SAS RAID External HBA	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3488 [C]	3Gb PCI-X SAS 8-Port Host Adapter	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2142 [F]	0MB 8-Core 1.0GHz System Board	n/a
	541-2448	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7823	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2192 [F]	0MB 8-Core 1.2GHz System Board	n/a
	541-2448	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7823	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2226 [F]	0MB 4-Core 1.0GHz System Board	n/a
	541-2448	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7823	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a
n/a	541-2449 [F]	0MB 8-Core 1.4GHz System Board	n/a
	541-2448	System Board Assembly w/o UltraSPARC T1	n/a
	501-7501	CPU/Memory Board	n/a
	501-7823	I/O Board	n/a
	530-3361	CPU/Memory to I/O Board Cable	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7849 [F]	Service Processor	n/a
n/a	150-1204 ⁷ [C]	3V Lithium Coin Cell Battery	n/a

⁷ Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

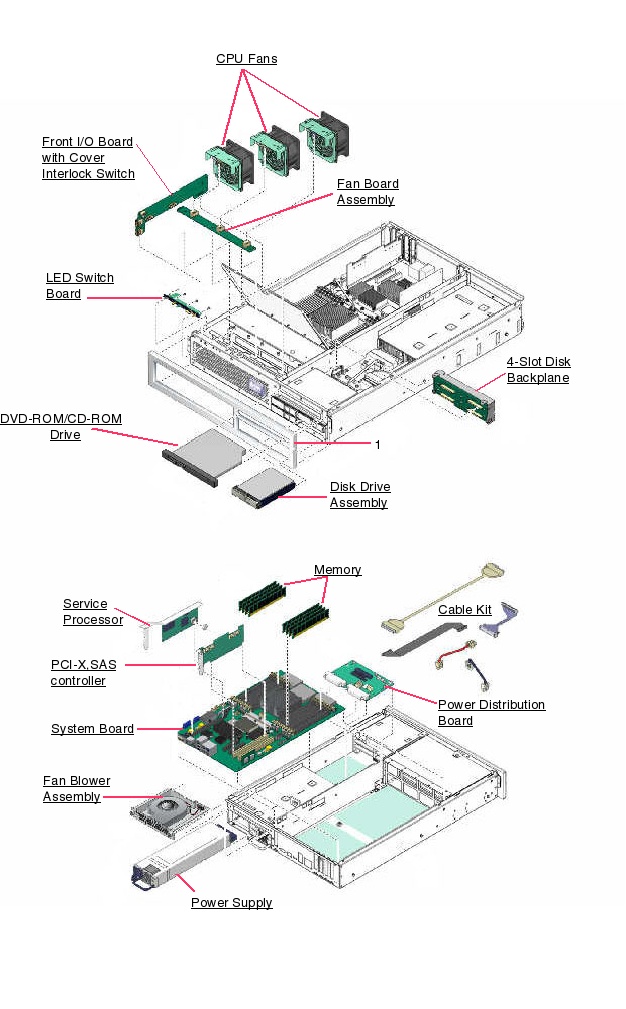

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	530-3440	SAS Cable Set
-	530-3436	HDD0 to PHY0 SAS Cable, 508mm
-	530-3437	HDD1 to PHY1 SAS Cable, 501mm
-	530-3438	HDD2 to PHY2 SAS Cable, 356mm
-	530-3439	HDD3 to PHY3 SAS Cable, 336mm
1	541-0243	Front Bezel Assembly
NS	375-3104	Paddleboard
NS	541-1472	Bus Bar Set
