Sun Server X4-2L - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 150-3993 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7020776 [F] CPU Heatsink n/a
n/a 7026168 CPU Installation/Removal Tool n/a
n/a 7069232 [F] 2.7GHz 12-Core Intel Xeon E5-2697 v2, 130W n/a
n/a 7069239 [F] 3.0GHz 10-Core Intel Xeon E5-2690 v2, 130W n/a
n/a 7069240 [F] 2.6GHz 8-Core Intel Xeon E5-2650 v2, 95W n/a
n/a 7069242 [F] 2.6GHz 6-Core Intel Xeon E5-2630 v2, 80W n/a
n/a 7069243 [F] 2.5GHz 4-Core Intel Xeon E5-2609 v2, 80W n/a
n/a 7082521 CPU Installation/Removal Tool n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
7102869 Buy 7039990 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 10M n/a
7102870 Buy 7039999 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 20M n/a
7102871 Buy 7040001 [C] MPO to MPO High Bandwidth QSFP Optical Cable, 50M n/a
7105199 Buy 7063849 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M n/a
7105206 Buy 7063852 [C] InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M n/a
X2121A-1M-N Buy 530-4444 [C] 10Gbps QSFP to QSFP Cable, 1m n/a
X2121A-2M Buy 530-4567 [C] 10Gbps QSFP to QSFP Cable, 2m n/a
X2121A-3M-N Buy 530-4445 [C] 10Gbps QSFP to QSFP Cable, 3m n/a
X2121A-5M-N Buy 530-4446 [C] 10Gbps QSFP to QSFP Cable, 5m n/a
X2130A-1M-N Buy 530-4441 [C] 10Gbps SFP+ TwinX Cable, 1m n/a
X2130A-3M-N Buy 530-4442 [C] 10Gbps SFP+ TwinX Cable, 3m n/a
X2130A-5M-N Buy 530-4443 [C] 10Gbps SFP+ TwinX Cable, 5m n/a
X333V-20-15-C14-N Buy 7040692 [C] IEC 320 Sheet E to IEC 320 C13, 10A/250V, 2M n/a
X333V-30-15-C14-N Buy 7040693 [C] IEC 320 Sheet E to IEC 320 C13, 10A/250V, 3M 180-2443 [C]
X9237-1-A-N Buy 180-2082 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 1.0M n/a
X9238-1-A-N Buy 180-2085 [C] IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 2.5M n/a
n/a 180-2443 [C] IEC 320 C13 to IEC 320 Sheet E - 15A/250V 3.0M n/a
n/a 530-4037 2-Slot 10-Pin Disk Backplane Power Cable n/a
n/a 7014226 [C] Interlock Cable, 125mm n/a
n/a 7014930 Rear Disk Data Cable, SATA to 90° SATA, 400mm n/a
n/a 7014931 Rear Disk Data Cable, SATA to 90° SATA, 320mm n/a
n/a 7015654 1 Disk Data Cable, SFF-8087 to iPass+ HD, 203mm n/a
n/a 7047255 [F] 8-Slot Backplane Cable Kit n/a
  • 530-4537
  • Disk Drive Flex Cable
 n/a
  • 7041996
  • Disk Data Cable, SFF-8087 to SFF-8643, 650mm
 n/a
  • 7068329
  • Dual Backplane Power Cable
 n/a
  • 7309766
  • Disk Drive Flex Cable
 n/a
n/a 7047257 [F] 12-Slot Backplane Cable Kit n/a
  • 530-4536
  • Disk Drive Flex Cable
 n/a
  • 7014921
  • 4-Slot Disk Backplane Power Cable
 n/a
  • 7015651
  • Disk Data Cable, iPass+ HD to iPass+ HD, 600mm
 n/a
  • 7068329
  • Dual Backplane Power Cable
 n/a
  • 7309765
  • Disk Drive Flex Cable
 n/a
n/a 7047258 [F] 24-Slot Backplane Cable Kit n/a
  • 530-4534
  • Disk Drive Power Cable
 n/a
  • 530-4537
  • Disk Drive Flex Cable
 n/a
  • 7020903
  • Disk Data Cable, SFF-8087 to SFF-8643, 620mm
 n/a
  • 7020904
  • Disk Data Cable, SFF-8087 to iPass+ HD, 740 mm
 n/a
  • 7020905
  • Disk Data Cable, SFF-8087 to iPass+ HD, 711mm
 n/a
  • 7309766
  • Disk Drive Flex Cable
 n/a
1 FRU|CRU part 7014391 "SAS Expander Assembly" includes quantity 1 7015654 "Disk Data Cable".
Chassis
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7310026 Left Ear Assembly n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
7104074 Buy 7092757 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 7046442 [C]
n/a 7046442 [C] Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 n/a
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7038971 [F] 24-Slot 2.5" Disk Cage Assembly n/a
  • 530-4037
  • 2-Slot 10-Pin Disk Backplane Power Cable
 n/a
  • 541-4674
  • 2-Slot Rear Disk Cage Assembly
 n/a
    • 7012767
    • Rear Disk Cage
 n/a
    • 2-Slot Backplane
 n/a
  • 7014930
  • Rear Disk Data Cable, SATA to 90° SATA, 400mm
 n/a
  • 7014931
  • Rear Disk Data Cable, SATA to 90° SATA, 320mm
 n/a
  • 7015654 3
  • Disk Data Cable, SFF-8087 to iPass+ HD, 203mm
 n/a
  • 7020903
  • Disk Data Cable, SFF-8087 to SFF-8643, 620mm
 n/a
  • 7020904
  • Disk Data Cable, SFF-8087 to iPass+ HD, 740 mm
 n/a
  • 7020905
  • Disk Data Cable, SFF-8087 to iPass+ HD, 711mm
 n/a
  • 7039836
  • 24-Slot Disk Cage Assembly
 n/a
    • 341-7139
    • Right Ear Cover
 n/a
    • 341-7140
    • Left Ear Cover
 n/a
    • 530-4534
    • Disk Drive Power Cable
 n/a
    • 530-4537
    • Disk Drive Flex Cable
 n/a
    • 7012294
    • 24-Slot 2.5" Disk Cage
 n/a
    • SAS Expander Assembly
 n/a
      • 7010672
      • SAS Expander Subassembly
 n/a
        • 7023751
        • SAS Expander w/o Heatsink
 n/a
      • 7015388
      • Plunger
 n/a
      • 7015394
      • Grommet
 n/a
    • 7014929
    • LED Cable
 n/a
    • 24-Slot 2.5" Disk Backplane Assembly
 n/a
      • 341-6231
      • Mounting Bracket
 n/a
      • 24-Slot 2.5" Disk Backplane
 n/a
    • Disk Backplane Right LED Indicator Module
 n/a
    • 7027303
    • Front LED Indicator Module Cable
 n/a
    • Disk Backplane Left LED Indicator Module
 n/a
    • 7309766
    • Disk Drive Flex Cable
 n/a
  • 7012293
  • Fan Door for 12-Slot 2.5" Disk Configuration
 n/a
    • 350-1812
    • Fan Door
 n/a
n/a 7038979 12-Slot 3.5" Disk Cage Assembly n/a
  • 530-4037
  • 2-Slot 10-Pin Disk Backplane Power Cable
 n/a
  • 541-4674
  • 2-Slot Rear Disk Cage Assembly
 n/a
    • 7012767
    • Rear Disk Cage
 n/a
    • 2-Slot Backplane
 n/a
  • 7014930
  • Rear Disk Data Cable, SATA to 90° SATA, 400mm
 n/a
  • 7014931
  • Rear Disk Data Cable, SATA to 90° SATA, 320mm
 n/a
  • 7015651
  • Disk Data Cable, iPass+ HD to iPass+ HD, 600mm
 n/a
  • 7015654 6
  • Disk Data Cable, SFF-8087 to iPass+ HD, 203mm
 n/a
  • 12-Slot 3.5" Disk Cage Assembly
 n/a
    • 341-7139
    • Right Ear Cover
 n/a
    • 341-7140
    • Left Ear Cover
 n/a
    • 530-4536
    • Disk Drive Flex Cable
 n/a
    • SAS Expander Assembly
 n/a
      • 7010672
      • SAS Expander Subassembly
 n/a
        • 7023751
        • SAS Expander w/o Heatsink
 n/a
      • 7015388
      • Plunger
 n/a
      • 7015394
      • Grommet
 n/a
    • 7014921
    • 4-Slot Disk Backplane Power Cable
 n/a
    • 7014929
    • LED Cable
 n/a
    • Disk Backplane Right LED Indicator Module
 n/a
    • 4-Slot 3.5" Disk Backplane Assembly
 n/a
      • 4-Slot 3.5" Disk Backplane
 n/a
      • 7049434
      • 3.5" Lightpipe Assembly
 n/a
    • Disk Backplane Left LED Indicator Module
 n/a
    • 7051157
    • 12-Slot 3.5" Disk Cage
 n/a
      • 541-4671
      • Left Ear Assembly
 n/a
      • 7051565
      • Right Ear Assembly
 n/a
      • 7310026
      • Left Ear Assembly
 n/a
      • 350-1812
      • Fan Door
 n/a
    • 7068329
    • Dual Backplane Power Cable
 n/a
    • 7309765
    • Disk Drive Flex Cable
 n/a
n/a 7045661 8-Slot 2.5" Disk Cage Assembly n/a
  • 341-7139
  • Right Ear Cover
 n/a
  • 341-7140
  • Left Ear Cover
 n/a
  • 530-4537
  • Disk Drive Flex Cable
 n/a
  • 7014929
  • LED Cable
 n/a
  • Disk Backplane Right LED Indicator Module
 n/a
  • 7027303
  • Front LED Indicator Module Cable
 n/a
  • 4-Slot 2.5" Disk Backplane Assembly
 n/a
    • 4-Slot 3.5" Disk Backplane
 n/a
    • 7049472
    • 2.5" Lightpipe Assembly
 n/a
  • Disk Backplane Left LED Indicator Module
 n/a
  • 7068329
  • Dual Backplane Power Cable
 n/a
  • 7309766
  • Disk Drive Flex Cable
 n/a
n/a 7052898 [C] Left Ear Kit n/a
  • 7014929
  • LED Cable
 n/a
  • Disk Backplane Left LED Indicator Module
 n/a
n/a 7052899 [F] Right Ear Kit n/a
  • Disk Backplane Right LED Indicator Module
 n/a
  • 7027303
  • Front LED Indicator Module Cable
 n/a
n/a 7310865 XATO 12-Slot 3.5" Disk Cage n/a
  • 530-4037
  • 2-Slot 10-Pin Disk Backplane Power Cable
 n/a
  • 541-4674
  • 2-Slot Rear Disk Cage Assembly
 n/a
    • 7012767
    • Rear Disk Cage
 n/a
    • 2-Slot Backplane
 n/a
  • 7014930
  • Rear Disk Data Cable, SATA to 90° SATA, 400mm
 n/a
  • 7014931
  • Rear Disk Data Cable, SATA to 90° SATA, 320mm
 n/a
  • 7015651
  • Disk Data Cable, iPass+ HD to iPass+ HD, 600mm
 n/a
  • 7015654 9
  • Disk Data Cable, SFF-8087 to iPass+ HD, 203mm
 n/a
  • 7047257 [F]
  • 12-Slot Backplane Cable Kit
 n/a
    • 530-4536
    • Disk Drive Flex Cable
 n/a
    • 7014921
    • 4-Slot Disk Backplane Power Cable
 n/a
    • 7015651
    • Disk Data Cable, iPass+ HD to iPass+ HD, 600mm
 n/a
    • 7068329
    • Dual Backplane Power Cable
 n/a
    • 7309765
    • Disk Drive Flex Cable
 n/a
  • 7310864
  • 12-Slot 3.5" Disk Cage Assembly
 n/a
    • 341-7139
    • Right Ear Cover
 n/a
    • 341-7140
    • Left Ear Cover
 n/a
    • 7014929
    • LED Cable
 n/a
    • Disk Backplane Right LED Indicator Module
 n/a
    • 7027303
    • Front LED Indicator Module Cable
 n/a
    • Disk Backplane Left LED Indicator Module
 n/a
    • 7310503
    • 12-Slot 3.5" Disk Cage
 n/a
      • 7310026
      • Left Ear Assembly
 n/a
      • 7310027
      • Right Ear Assembly
 n/a
      • 350-1812
      • Fan Door
 n/a
    • 7313311 [F]
    • 4-Slot 3.5" Disk Backplane Assembly
 n/a
      • 7084448
      • 3.5" Lightpipe Assembly
 n/a
      • 7313312
      • 4-Slot Disk Backplane
 n/a
2 Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.
3 FRU|CRU part 7014391 "SAS Expander Assembly" includes quantity 1 7015654 "Disk Data Cable".
4 FRU|CRU part 7014391 includes a quantity of 1 7015654 "Disk Data Cable".
5 Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.
6 FRU|CRU part 7014391 "SAS Expander Assembly" includes quantity 1 7015654 "Disk Data Cable".
7 FRU|CRU part 7014391 includes a quantity of 1 7015654 "Disk Data Cable".
8 Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.
9 FRU|CRU part 7014391 "SAS Expander Assembly" includes quantity 1 7015654 "Disk Data Cable".
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
7111108 Buy 7093037 [C] 1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
n/a
  • Marlin 2.5" Bracket
 n/a
7106617 [S] 7045850 [C] 1.2TB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)
n/a
  • Marlin 2.5" Bracket
 n/a
7106638 [S] 7066824 [C] 4TB - 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUS724040ALS640 [H7240AS60SUN4.0T] (4TB - 7200 RPM - SAS Disk)
 n/a
  • Coral 3.5" Disk Drive Bracket
 n/a
7107550 [S] 7077233 [C] 400GB Solid State SATA Drive Assembly n/a
  • 400GB 2.5" SATA-3 Solid State Drive Intel SSDSC2BA400G3S [ITVSC2BA3SUN400G]
n/a
  • Marlin 2.5" Bracket
 n/a
XRA-SS2CF-600G10K2 [S] 542-0287 [C] Buy 600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks; n/a
  • Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)
 n/a
  • Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRB-SS2CF-300G10K2 [S] 542-0388 [C] Buy 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 7350766 [C] [A] 1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) n/a
  • HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
7100477 Buy 7070195 [C] Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP n/a
7100481 Buy 7070202 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF 7014747 [C]
7100488 Buy 7070006 [C] Dual 10-Gigabit Base-T PCI Express Gen2 n/a
X1109A-Z Buy 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP n/a
X2129A-N Buy 530-4449 [C] 10Gb/Sec Short Wave SFP+ Transceiver n/a
X5562A-Z Buy 135-1205 [C] 10Gb/Sec Long Wave SFP+ Transceiver n/a
X2124A [S] 7326504 [C] 10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver 135-1204 [C]
n/a 135-1204 [C] 10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver n/a
n/a 7014747 [C] Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7045042 [C] Dual Counter Rotating Fan Module n/a
  • 7045041
  • 80×80mm Counter Rotating Fan
 n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
7101674 Buy 7023303 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic n/a
7101676 Buy 7023325 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101678 Buy 7023315 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
 n/a
7101680 Buy 7023066 [C] Pair of 16Gbps Long Wave SFP+ n/a
  • 16Gb/Sec Long Wave SFP+ Transceiver, QLogic
 n/a
7101684 Buy 7023036 [C] Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex n/a
7101686 Buy 7023059 [C] Pair of 16Gbps Short Wave SFP+ n/a
  • 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
7101688 [S] 7023057 [C] Pair of 10Gbps Short Wave SFP+ n/a
  • 10Gb/Sec Short Wave SFP+ Transceiver, Emulex
 n/a
SG-XPCIE2FC-EM8-N [S] 7053434 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex n/a
SG-XPCIE2FC-QF8-N [S] 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
7100790 [S] 7020486 [C] 8GB DDR3-1600 DIMM, 1.35V n/a
7100794 [S] 7018701 [C] 16GB DDR3-1600 DIMM, 1.35V n/a
7106548 [S] 7071891 [C] 32GB DDR3L-1600 1.35V Load Reduced DIMM n/a
n/a 7038488 [C] 4GB USB 2.0 Flash Drive n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7044130 [C] Type A258 1000 Watt AC Input Power Supply n/a
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
XSR-JUMP-1MC13-N Buy 7015399 [C] 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M 180-2379 [C]
XSR-JUMP-2MC13-N Buy 7015400 [C] 10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M 180-2380 [C]
n/a 180-2379 [C] 13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M n/a
n/a 180-2380 [C] 13A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M n/a
n/a 350-1719 [C] 1U/2U Snap-In Slide Rail Rackmount Kit n/a
n/a 7042273 [C] 1U/2U Cable Management Arm (Snap-in) n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-4688 13 [C] Slot-Load DVD Assembly n/a
  • 7014928
  • DVD Data/Power Cable
 n/a
  • 7020884
  • DVD Mounting Tray
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 n/a
n/a 7081551 14 [C] Tray-Load DVD Assembly n/a
  • 7014928
  • DVD Data/Power Cable
 n/a
  • 7071296
  • 8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer
 n/a
  • 7081553
  • DVD Tray
 n/a
13 541-4688 is available in the 8-Slot 2.5" Disk Cage Assembly
14 708155 is available in the 8-Slot 2.5" Disk Cage Assembly
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
7105387 [S] 8-Port 6Gbps SAS-2 PCI Express HBA
7047853 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
7107092 [S] 7069200 [C] 800GB PCI Express Flash Accelerator F80 SAS HBA n/a
SGX-SAS6-EXT-Z [S] 7047853 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
SGX-SAS6-INT-Z [S] 7047852 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
SGX-SAS6-R-INT-Z [S] 7047503 [C] 8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC n/a
7050794 [C] 6Gbps SAS-2 RAID PCI Battery Module, BBU08 n/a
n/a 7014391 15 [C] SAS Expander Assembly n/a
  • 7010672
  • SAS Expander Subassembly
 n/a
    • 7023751
    • SAS Expander w/o Heatsink
 n/a
  • 7015388
  • Plunger
 n/a
  • 7015394
  • Grommet
 n/a
15 FRU|CRU part 7014391 includes a quantity of 1 7015654 "Disk Data Cable".
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 7058152 [F] X4-2L System Board Assembly n/a
  • 350-1730
  • System Board Tray
 n/a
  • 7023964
  • Pass Thru Mezzanine
 n/a
  • 7046334
  • System Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a
  • Rear I/O Board
 n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

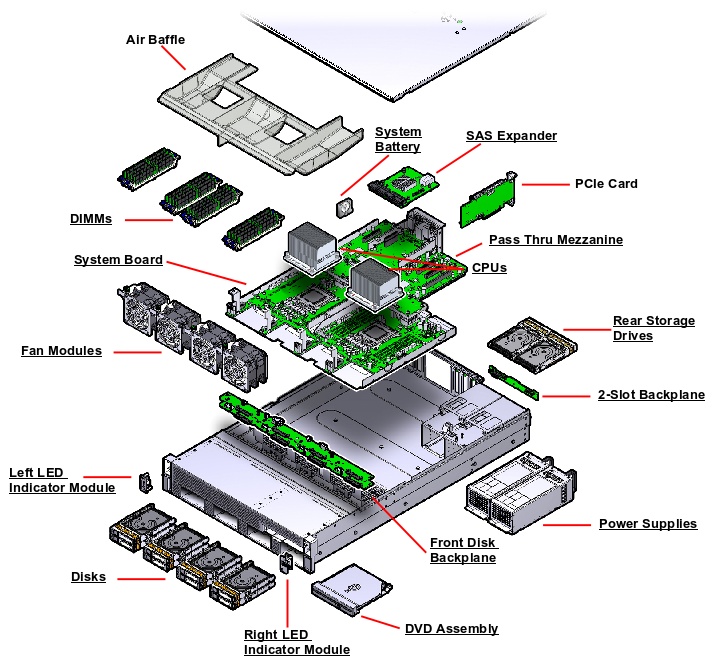

Sun Server X4-2L Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
- 240-4674 PCI Express Filler Panel
- 7012293 Fan Door for 12-Slot 2.5" Disk Configuration
-
  • 350-1812
  • Fan Door
- 7014216 Rear Disk Filler Panel
- 7015920 Fan Door for 8-Slot 2.5" Disk Configuration
- 7019246 Air Baffle
NS 350-1288 DIMM Slot Filler
NS 541-2629 2.5" Disk Drive Filler Panel
NS 541-3066 3.5" Disk Filler Panel
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
