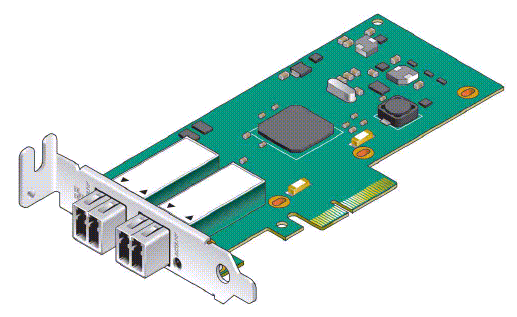

Dual Gigabit Ethernet PCIe 2.0 Low Profile MMF

Codename: Powerville LP Fiber

Option 7100481

7014747	7070202
Intel PCA G29837 Intel Item Number 916403 Firmware 3.11	Intel PCA G29837 Intel Item Number 916403 Firmware 3.15

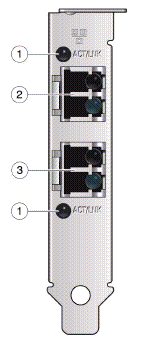

Front Panel

1   ACT/LNK (activity/link) LED 2   Port 0 3   Port 1

Notes

1. The minimum Solaris operating system is Solaris 10 8/11.
2. The igb(7D) device driver is required.
3. Firmware on 7070202 supports Single Root I/O Virtualization (SR-IOV).
4. No change was made to Specification 7014752 when 7070202 was released.
5. PCI Identifiers are Vendor ID 0x8086, Device ID 0x1521, and Sub Device ID 0x7b19.
6. Vital Product Data VPD=PN is not documented.

References

1. Sun Dual Port GbE PCIe 2.0 Low Profile Adapter, MMF, Documentation.
