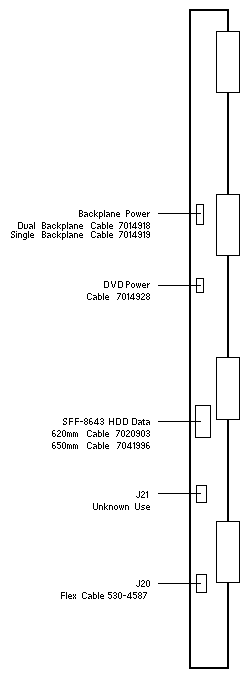

4-Slot Disk Backplane for 1U Server
| 7027478 |
7027479 |
4-Slot Assembly/FRU
2.5" Disk Cage |
4-Slot Assembly/FRU
3.5" Disk Cage |
Notes
- Cables 7014918 and 7014919 changed from 105C to 80C insulation in
December 2012
to prevent the possibility of fan stoppage and to improve cable routing.
References
 Sun Server X3-2 / Sun Fire X4170 M3 Server Documentation.
- Sun Server X3-2L / Sun Fire X4270 M3 Server Documentation.
- Sun Server X4-2 Documentation.
- Sun Server X4-2L Documentation.
4-Slot Disk Backplane for 2U Server
| 7027478 |
7027479 |
4-Slot Assembly/FRU
2.5" Disk Cage |
4-Slot Assembly/FRU
3.5" Disk Cage |
| 7045661 |
7045664 |
8-Slot Assembly
2×
7027478 4-Slot Backplane
2.5" Disk Cage |
12-Slot Assembly
3×
7027479 4-Slot Backplane
3.5" Disk Cage |

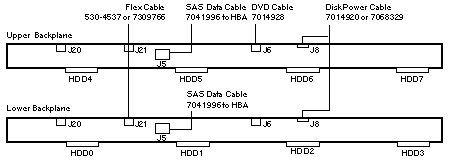

| 8-Slot Configuration |
 |

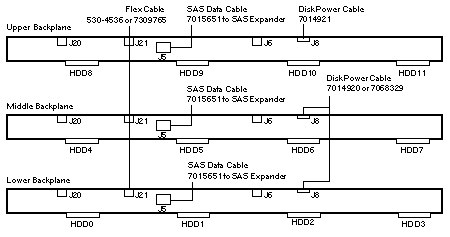

| 12-Slot Configuration |
 |
Sun Fire X4270 M3/Sun Server X3-2L Codename: Concord
Sun Server X4-2L Codename: Concord+ |
Note
- 8-Slot Cable Kit 7047255 includes 530-4537, 7041996, and 7068329.
- 8-Slot Cable Kit 7047255 Rev 03 includes 7309766, 7041996, and 7068329.
- 12-Slot Cable Kit 7047257 includes 530-4536, 7014921, 7015651, and 7068329.
- 12-Slot Cable Kit 7047257 Rev 03 includes 7309765, 7014921, 7015651, and 7068329.
- Cable 7014920 changed to 7068329 before the Sun Server X4-2L was released.
References
- Sun Server X3-2L (Sun Fire X4270 M3) Documentation.
- Sun Server X4-2L Documentation.
|
