Front Indicator Module
| 7017223 |
7017231 |
7048864 |
2.5"/3.5" Disk Cage
Left Indicator |
2.5"/3.5" Disk Cage
Right Indicator |
2.5"/3.5" Disk Cage
Left Indicator |
| 7052898 |
7052899 |
Left Indicator Kit
Indicator 7048864 |
Right Indicator Kit
Indicator 7017231
|

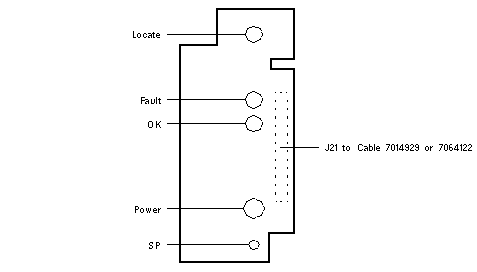

| Left Indicator Module |
 |

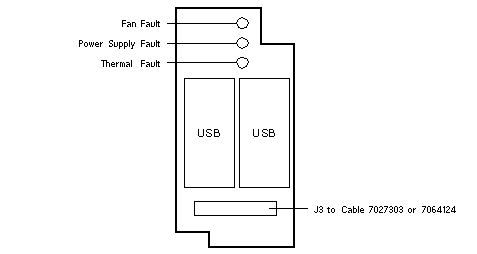

| Right Indicator Module |
 |
Notes
- Right Indicator Kit 7052899 includes 20-Pin Braided/Shielded Cable 7027303.
- Cable 7027303 is not used in X5-2L, X6-2L, or T7-1.
- X3-2L and X4-2L use cables 7014929 (540mm) and 7027303 (458mm).
- X5-2L, X6-2L, and T7-1 use cables 7064122 (290mm) and 7064124 (394mm).
References
 Sun Server X3-2L Documentation (formerly Sun Fire X4270 M3).
- Sun Server X4-2L Documentation.
- Sun Server X5-2L Documentation.
|
