Delta ECD14020023

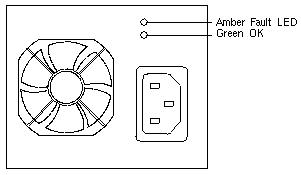

1000 Watt Power Supply

7044130 7335737 7352200
Type A258
AC Input Power Supply
Specification 7038481
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition 		Type A258
AC Input Power Supply
Specification 7038481
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition
India ISI Mark 		Type A258
AC Input Power Supply
Specification 7038481
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition
Taiwan RoHS

AC Input

100-240Vac 50-60Hz 12A Max

DC Output

+12V +12Vsb
80.6A 2.7A

Efficiency

115V 10% Load 75%
20% Load 85%
50% Load 89%
100% Load 87%
230V 10% Load 83%
20% Load 90%
50% Load 94%
100% Load 91%

Notes

  1. Power Supply Efficiency affects the current draw in AC
    Watts from the branch circuit. As efficiency increases,
    the current draw in AC Watts decreases.
  2. To calculate maximum theoretical current draw in AC Watts,
    multiply the maximum power supply output in DC Watts by
    the reciprocal of the power supply efficiency.
  3. Theoretical values are typically higher than published values
    which are based on measured outputs under controlled test
    conditions.
