24-Slot Disk Backplane

7020908	7015229
24-Slot Backplane	24-Slot Assembly 2.5" Disk Cage

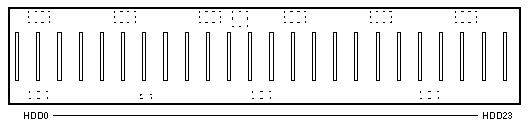

Front View

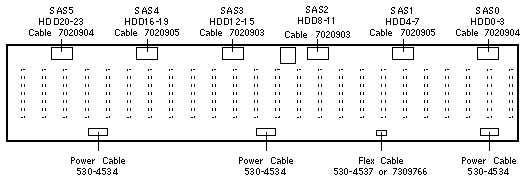

Rear View

Sun Fire X4270 M3/Sun Server X3-2L Codename: Concord Sun Server X4-2L Codename: Concord+

Notes

1. The difference between the SAS0 to SAS5 Data Cables is length.
2. Cable 7020903 is 620mm. Cable 7020905 is 711mm. Cable 7020904 is 740mm.
3. Cable Kit 7047258 includes 530-4534, 530-4537, 7020903, 7020904, and 7020905.
4. Cable Kit 7047258 Rev 03 includes 530-4534, 7309766, 7020903, 7020904, and 7020905.
5. Cable 7020904 was used instead of 7020905 for SAS1 and SAS4 in March 2014. (Deviation D0002994)

References

1. Sun Server X3-2L (Sun Fire X4270 M3) Documentation.
2. Sun Server X4-2L Documentation.
