Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter

Codename: Ganymede-Q

Option 7101674

7023303
Qlogic QLE8362-ORL-BK x8 PCI Express Gen1/Gen2/Gen3

Additional Information & Views

Notes

1. HBA Options and FRUs include FH Bracket 7023343 and LP Bracket 7023342.
2. Mixing Transceiver types is not supported. Use 16Gbps SFP+ or 10Gbps SFP+.
3. The 10Gbps SFP+ and 16Gbps SFP+ transceivers are sold and FRU'd as pairs.
4. Use 10Gbps Shortwave SFP+ 7023316, FRU Pair 7023315, Option 7101678.
5. Use 16Gbps Shortwave SFP+ 7023324, FRU Pair 7023325, Option 7101676.
6. Use 16Gbps Longwave SFP+ 7023064, FRU Pair 7023066, Option 7101680.

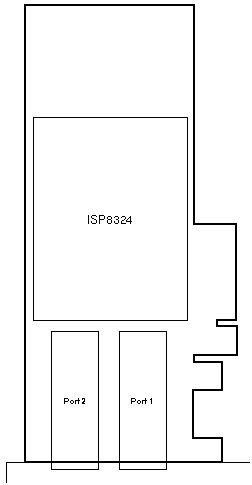

7. Fibre Channel PCI Identifiers are Vendor ID 0x1077 and Device ID 0x2031.
8. Ethernet PCI Identifiers are Vendor ID 0x1077 and Device ID 0x8030.
9. FCoE PCI Identifiers are Vendor ID 0x1077 and Device ID 0x8031.
10. Vital Product Data VPD=PN is 7023303.

References

1. Sun Storage 16 Gb FC PCIe Universal HBA Documentation For HBA Model 7101674.

Notes

1. HBA Options and FRUs include FH Bracket 7023090 and LP Bracket 7023088.
2. Mixing Transceiver types is not supported. Use 16Gbps SFP+ or 10Gbps SFP+.
3. The 10Gbps SFP+ and 16Gbps SFP+ transceivers are sold and FRU'd as pairs.
4. Use 10Gbps Shortwave SFP+ 7023046, FRU Pair 7023057, Option 7101688.
5. Use 16Gbps Shortwave SFP+ 7023053, FRU Pair 7023059, Option 7101686.

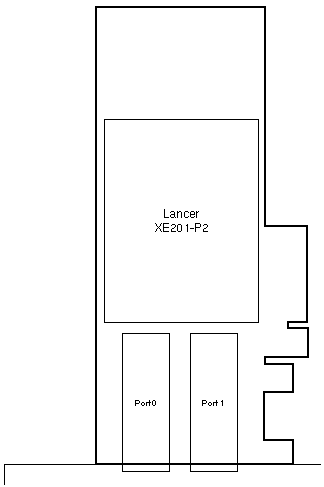

6. Fibre Channel PCI Identifiers are Vendor ID 0x10df and Device ID 0xe200.
7. Ethernet PCI Identifiers are Vendor ID 0x10df and Device ID 0xe220.
8. FCoE PCI Identifiers are Vendor ID 0x10df and Device ID 0xe260.
9. Vital Product Data VPD=PN is 7023036.

References

1. Sun Storage 16 Gb Fibre Channel PCIe Universal HBA, Emulex Documentation For HBA Model 7101684.
2. Emulex HBA Program Documentation Third Party Licenses and Notices.
