8X DVD-ROM Writer / 24X CD-ROM Writer

Options 7413 / 7424

370-6145 370-6635 371-0879 540-6068
Toshiba SD-R6112
ATAPI/IDE Interface
Slimline 1/2" Height
December 2003		 Toshiba SD-R6112
ATAPI/IDE Interface
Slimline 1/2" Height
April 2004		 Toshiba TS-L532A
ATAPI/IDE Interface
Slimline 1/2" Height
September 2005
(Deviation WO_31657) 		Netra 440 Assy/FRU
Bracket 240-4588
DVD 370-6635
or
DVD 371-0879
(Deviation WO_31657)
8x DVD-ROM Read
2x/2x DVD-R/RW Write
24x CD-ROM Read
16x/4x CD-R/RW Write		 8x DVD-ROM Read
2x/2x DVD-R/RW Write
24x CD-ROM Read
16x/4x CD-R/RW Write		 8x DVD-ROM Read
8x/4x DVD-R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write

Front View

Top View

Paddleboards

Paddleboard 370-6005 (Netra 240)
PCB 316721200002-R0E

Paddleboard 370-6005 (Netra 240)
PCB 316721200002-R0D

Netra 240 Notes

  1. DVD FRU F370-6145 includes Bracket 341710500003.
  2. SCCR FRU F370-6126 includes the cables to J501 and J504.
  3. SCSI Interface FRU F370-6128 includes the cable to J505.

Netra 440 Notes

  1. DVD FRU F540-6068 includes DVD 370-6635 and Bracket 240-4588.
  2. SCCR FRU F540-5856 includes Netra 440 DVD Paddleboard 375-3104.


8X DVD-ROM Writer / 24X CD-ROM Writer

Options 7413A / 7413A-4 / 7424A-4 / 8214A-Z

DVD Drives

371-0127 371-0913 371-2445 390-0289 390-0345
Toshiba TS-L532
ATAPI/IDE Interface
Slimline 1/2" Height
May 2005
Option 7413A		 TSST TS-L532U
ATAPI/IDE Interface
Slimline 1/2" Height
November 2005
Option 7413A/7413A-4
Option 8214A-Z		 TSST TS-L632D
ATAPI/IDE Interface
Slimline 1/2" Height
December 2006
Black Bezel		 TSST TS-L532U
ATAPI/IDE Interface
Slimline 1/2" Height
May 2006
Option 7424A-4		 TSST TS-L632D
ATAPI/IDE Interface
Slimline 1/2" Height
December 2006
Option 7424A-4
8x DVD-ROM Read
8x/4x DVD-R/RW Write
8x/4x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write		 8x DVD-ROM Read
8x/4x DVD-R/RW Write
8x/4x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write		 8x DVD-ROM Read
8x/4x DVD-R/RW Write
8x/4x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write
390-0350 390-0401 390-0406 390-0429 390-0430
TSST TS-L632D
ATAPI/IDE Interface
Slimline 1/2" Height
February 2007
Option 8214A-Z		 Teac DV-W28E-RZ3
ATAPI/IDE Interface
Slimline 1/2" Height
June 2008		 TSST TS-L632H
ATAPI/IDE Interface
Slimline 1/2" Height
November 2008		 Teac DV-W28E-RZ4
ATAPI/IDE Interface
Slimline 1/2" Height
April 2008
Option 7424A-4		 Teac DV-W28E-RK4
ATAPI/IDE Interface
Slimline 1/2" Height
April 2008
Option 7413A/7413A-4
Option 8214A-Z
8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write

DVD FRUs

370-7078 371-0914 371-0101
Netra 240 FRU
Bracket 341710500003
DVD 371-0127
7413A		 Netra 240 FRU
Bracket 341721200021
DVD 371-0913
DVD 390-0350
DVD 390-0430
7413A/7413A-4		 Netra 210 FRU
DVD 371-0913
DVD 390-0350
DVD 390-0430
8214A-Z
540-6312 540-7753 541-0847 541-3451 542-0190
Netra 440 FRU
Bracket 240-4588
DVD 390-0289
DVD 390-0345
DVD 390-0429
7424A-4		 Netra 440 FRU
Bracket 240-4588
DVD 390-0429		 M4000/M5000 FRU
DVD 390-0289
DVD 390-0345
DVD 371-2445
DVD 390-0401		 M4000/M5000 FRU
DVD 390-0401		 DVD Writer FRU
DVD 371-2005
DVD 390-0401

Front View

Top View

Additional Information & Views

Paddleboards

Paddleboard 370-6005 (Netra 240)
PCB 316721200002-R0E

Paddleboard 370-6005 (Netra 240)
PCB 316721200002-R0D

Paddleboard 370-7593 (Netra 210)

Netra 210 Notes

  1. SCCR FRU F370-7676 includes DVD Paddleboard 370-7593 and SCCR 371-0838.
  2. SCCR FRU F370-7676 includes the cables to J501, J502, and J505.
  3. The DVD includes barcode label 371-0101 and 371-0913.
  4. The Sun Approved Vendor List does not include make and model information.
  5. DVD models, vendors, and specifications are subject to change without notice.

Netra 240 Notes

  1. Assembly 370-7078 includes DVD 371-0127 and Bracket 341710500003.
  2. SCCR FRU F370-6126 includes the cables to J501 and J504.
  3. SCSI Interface FRU F370-6128 includes the cable to J505.

Sun Fire V490 Notes

  1. DVD 390-0345 was added to Assembly 541-1519 in December 2006. (WO_34814)
  2. DVDs 390-0406 and 390-0429 were added to Assembly 541-1519 in May 2008. (WO_39107)
  3. DVD FRU F390-0429, which includes 390-0406 or 390-0429, was released in October 2008. (WO_40238)

Netra 440 Notes

  1. DVD 390-0345 was added to Assembly 541-6312 in February 2007. (WO_35024)
  2. DVD 390-0429 was added to Assembly 541-6312 in April 2008. (WO_38641)
  3. Assembly 540-7753 was released in April 2008. (WO_38641)

Netra 1290 Notes

  1. DVD 390-0429 was not qualified on Netra 1290.
  2. DVD FRU F390-0429, which includes 390-0406 or 390-0429, was released in October 2008. (WO_40238)
  3. DVD FRU F390-0406 was released for Netra 1290 in November 2008. (WO_40069)
  4. DVD 390-0406 and 390-0429 are not available as options for the Netra 1290.


8X DVD-ROM Writer / 24X CD-ROM Writer

Options 7276A / 8019A
Options 4356A / 7277A / 8410A-Z
Options 5286A-Z / 8116A / X8117A
Options 4356A-Z / 6323A / 4352A-Z
Options SESX9DV1Z / SEVX9DV1Z

DVD Drives

370-7970 370-7970 371-1106
Panasonic UJ-845
ATAPI/IDE Interface
Slimline 1/2" Height
Option 7276A/8019A		 Teac DV-W28SLA-093
ATAPI/IDE Interface
Slimline 1/2" Height
Option 7276A/8019A		 Panasonic UJ-845
ATAPI/IDE Interface
Slimline 1/2" Height
Options 7277A/8410A-Z
8x DVD-ROM Read
8x/4x DVD-R/RW Write
8x/4x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write		 8x DVD-ROM Read
8x/4x DVD-R/RW Write
8x/4x DVD+R/RW Write
24x CD-ROM Read
24x/16x CD-R/RW Write		 8x DVD-ROM Read
8x/4x DVD-R/RW Write
8x/4x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write
371-2005 371-2304 371-2549
Panasonic UJ-850
Philips SDVD8821
ATAPI/IDE Interface
Slimline 1/2" Height
Option 5286A-Z		 Panasonic UJ-85J-B/C
ATAPI/IDE Interface
Slimline 1/2" Height		 Panasonic UJ-85J-BPK
ATAPI/IDE Interface
Slimline 1/2" Height
Option 8410A-Z
8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/4x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/4x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/16x CD-R/RW Write
390-0282 390-0337 390-0380 390-0403 390-0439
Panasonic UJ-845
ATAPI/IDE Interface
Slimline 1/2" Height		 TSST TS-T632A
ATAPI/IDE Interface
Slimline 1/2" Height		 Panasonic UJ-85J-BMX
ATAPI/IDE Interface
Slimline 1/2" Height		 Teac DV-W28SLC-0Z3
ATAPI/IDE Interface
Slimline 1/2" Height
Options 7277A/8410A-Z
Option SEVX9DV1Z		 Panasonic UJ-875-BPK
ATAPI/IDE Interface
Slimline 1/2" Height
Option 8410A-Z
8x DVD-ROM Read
8x/4x DVD-R/RW Write
8x/4x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/10x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/16x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/16x CD-R/RW Write

DVD FRUs

F371-2304 540-7563
U40 M2 FRU
Front Panel 330-4448
Housing 341-3130
DVD/CD 371-2304
Paddleboard 373-0018
Front I/O Board 373-0073
Cable 422740700003		 Netra FRUs:
X4200M2/X4250/X4450
T2000/T5220/T5440
DVD 390-0337
DVD 390-0403
X4356A-Z
See PATA/SATA
Compatibility Table
541-2110 F541-1025 542-0190
X4150/X4450 FRU
T5120/T5140 FRU
T5140/T5240 FRU
Bracket 330-4418
DVD 390-0337
USB 501-7698
Bezel 541-2111
X6323A/SESX9DV1Z
See PATA/SATA
Compatibility Table		 V445 Assembly/FRU
Bracket 341-1645
DVD 390-0282
DVD 390-0337
DVD 390-0380
DVD 390-0403		 DVD Writer FRU
DVD 371-2005
DVD 390-0401

Front View

Top View

Paddleboards and Other Boards

Paddleboard 373-0026 (Ultra 40)

Paddleboard 373-0018 (Ultra 25/45)

Paddleboard 541-1039 (Sun Fire V445)

DVD Interface Board 371-1103 411747400021 (Netra X4200 M2)

Front USB Board 501-7698
(Sun Fire X4140/X4150/X4240/X4250/X4450/T5120/T5140/T5240)

Additional Information & Views

Notes

  1. Alignment Block 330-4959 was added to 541-2110 in November 2008. (WO_40007)

Ultra 40 Notes

  1. The drive and adapter are fastened with M2 (2 mm) screws.
  2. Use a #00 Phillips screwdriver to remove the drive mounting screws.
  3. FRU F370-7970 includes the Cable, DVD, and Paddleboard.
  4. Upgrade Option 8019 includes the DVD and I/O Board mounted in the I/O Assembly.

Ultra 25 and Ultra 45 Notes

  1. The drive and adapter are fastened with M2 (2 mm) screws.
  2. Use a #00 Phillips screwdriver to remove the drive mounting screws.
  3. FRU F371-1106 includes the Cable, DVD, and Paddleboard.
  4. FRU F371-1106 includes DVD 371-1106, 371-2549, or 390-0403.
  5. Option X7277A includes the DVD mounted in the I/O Assembly.
  6. Drive 371-2549 was added to X7277A in November 2006. (WO_34778)
  7. Drive 390-0403 was added to X7277A in February 2008. (WO_38024)
  8. Drive 390-0403 was added to X7277A in March 2008. (Deviation WO_38899)
  9. Drive 390-0403 labeled WO_38899 has firmware incompatible with V215/V245.
  10. Drives 371-2549 and 390-0403 were added to F371-1106 in March 2008. (WO_38902)

Sun Fire V215, V245, and V445 Notes

  1. Drive 371-2549 was added to X8410A-Z in April 2007. (WO_35622)
  2. Drives 390-0403 and 390-0439 were added to X8410A-Z in March 2008. (WO_38902)
  3. Drive 390-0403 was added to 541-1025 in April 2008. (Deviation WO_38992)

Sun Fire V445 Notes

  1. The drive mounting bracket in F541-1025 is fastened with double sided tape.
  2. Cable Kit 560-2849 includes Paddleboard Mounting Bracket 541-1745.
  3. Cable Kit 560-2849 includes Paddleboard Assembly 541-2027.
  4. Paddleboard Assembly 541-2027 includes Paddleboard 541-1039.
  5. Drive 390-0403 was added to 541-1025 in May 2008. (WO_39259)
  6. Assembly 540-7563 includes 390-0337 or 390-0403.
  7. No mounting hardware is included with 540-7563 and none is required.

Netra T5220 and T5440 Notes

  1. Drive 390-0403 was disqualified for use in Netra T5220 in February 2009. (WO_40700)
  2. Drive 390-0403 was disqualified for use in Netra T5440 in February 2009. (WO_40707)

541-2110 Notes

  1. Plastic shim 330-4803 was added to disk drive cardcages 541-2115 and 541-2212 to correct a DVD-to-cardcage alignment problem in January 2008. (WO_38468)
  2. Kit 540-7683, containing Gasket 343-0665 and Label 263-3555, was added to DVD FRU 541-2110-08 in January 2008. (WO_38555)
    Use Kit 540-7683 when installing the DVD into a cardcage that does not have a shim installed in the top rear of the DVD bay.


8X DVD-ROM Writer / 24X CD-ROM Writer

371-4234 F371-4974
Slimline 1/2" Height
Silver Bezel 		Slimline 1/2" Height
Black Bezel

Front View

Top View

SPARC Enterprise M3000 Notes

  1. The assembly includes left and right plastic mounting rails.
  2. The Power and Data Cable is labeled CA72001-4816.
  3. Cable CA72001-4816 is not assigned a Sun part number.
  4. The manufacturer, model, and type is unknown.


8X DVD-ROM Writer / 24X CD-ROM Writer

Options X4358A-Z / X6386A / X8325A / SE4X5DV1Z / SESX9DV2Z / X8370A

390-0442 390-0443 390-0454 390-0486 390-0495
TSST TS-T633A
SATA Interface
Slimline 1/2" Height		 Teac DV-W28SS-RZ3
SATA Interface
Slimline 1/2" Height		 TSST TS-T633C
SATA Interface
Slimline 1/2" Height		 Teac DV-W28SS-VZ3
SATA Interface Gen2
Slimline 1/2" Height		 Teac DV-W28SS-RZ5
SATA Interface
Slimline 1/2" Height
8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write
7045772 541-3493-01 541-3493-02 541-3493-03 541-4266 7070425
Teac DV-W28SS-WZ3
SATA Interface
Slimline 1/2" Height
8x DVD-ROM Read
8x/6x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x CD-ROM Read
24x/24x CD-R/RW Write		 Tray 330-5056
Bezel 541-3686
DVD 390-0442
USB 501-7698
SESX9DV2Z
SE3X9DV2Z
X6386A/X8325A		 DVD Assy 541-4266
DVD Assy 542-0280
SE3X9DV2Z
SESX9DV2Z
X6386A/X8325A		 DVD Assy 541-4266
DVD Assy 541-4327
DVD Assy 541-4697
SE3X9DV2Z
SESX9DV2Z
X6386A/X8325A		 Tray 330-5056
Bezel 350-1526
DVD 390-0443
Pkg FRU 541-3493		 Tray 330-5056
Tray 7066500
Bezel 350-1554
DVD 7045772
USB 501-7698
541-4271 541-4272 541-4327 541-4688 541-4697 7070422
Bracket 541-5317
DVD 390-0454
DVD 390-0486
DVD 390-0495
No Option		 Tray 341-5807
Bezel 341-6168
DVD 390-0443
X8370A
SE4X5DV1Z		 Tray 330-5056
Bezel 350-1554
DVD 390-0454
USB 501-7698
Pkg FRU 541-3493		 Tray 7020884
DVD 390-0486
Pkg FRU 7024978		 Tray 330-5056
Bezel 350-1554
DVD 390-0486
USB 501-7698
Pkg FRU 541-3493
Pkg FRU 541-4697		 Tray 341-6389
Bezel 341-5808
DVD 7045772
542-0280 7013722 7017475 7045440 7055072 7057476
Tray 330-5056
Bezel 541-3686
DVD 390-0442
USB 501-7698
Pkg FRU 541-3493		 Tray 341-5807
Bezel 341-6168
DVD 390-0486
X8370A
SE4X5DV1Z
Pkg FRU 7031189		 DVD Assy 541-4272
DVD Assy 7013722		 Tray 7039783
DVD 390-0486
Pkg FRU 7040274		 Tray 341-6389
Bezel 341-5808
DVD 7045772		 Tray 330-5056
Bezel 350-1554
DVD 7045772
USB 501-7698

Front View

Top View

Front USB Board 501-7698 (not in X4385A-Z)

Notes

  1. DVD 390-0443 was added to 541-3493 in January 2010. (WO_42431)
  2. DVD 390-0442 was removed from 541-3493 in May 2010. (WO_43127)
  3. DVD 390-0442 was disqualified in April 2010. (AVL change request CE_49169)
  4. Solaris 10 10/08 is the first Solaris OS to support booting from a SATA DVD.

Compatibility Notes

  1. Any SATA DVD is not compatible with:
    1U 4-Slot Backplane 501-7699
    1U 8-Slot Backplane 501-7797
    2U 8-Slot Backplane 501-7730
    2U 16-Slot Backplane 501-7760
    1U Connector Board 501-7725
    2U Connector Board 501-7720
    2-Slot Disk Assembly 371-2647
    2-Slot Disk Assembly 371-3931
    DVD Backplane 371-2533
    PDB 371-2532
    DVD/Fan Board Assembly 540-7621
    DVD Board 371-3841


8X DVD-ROM Writer / 24X CD-ROM Writer

7071296 7300356
Teac Gen4 DV-28S-A
SATA Interface

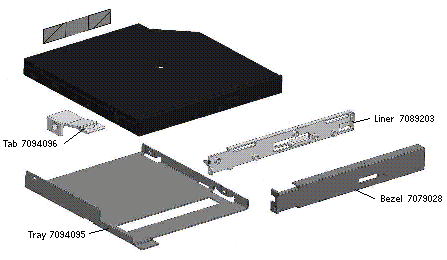

Slimline 1/2" Height		 DVD Assembly/FRU
DVD 7071296
Tray 7094095
Bezel 7079028
Liner 7089203
Tab 7094096
M2 x 2.3mm Screws
M2 x 4mm Screws
Gen 4.5 Assembly
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write

Notes

  1. Assembly 7300356 was released in November 2014. (E0021886)
  2. Changes to the Tray, Tab, and Screw were made for the Generation 5 DVD.
  3. Tray-Load Assembly 7082409 was inactivated in November 2014. (E0022906)
  4. SPARC T5-2 DVD ATO 7088934 was changed from 7082409 to 7300356 in November 2014. (E0022906)
    SPARC T4-2 and Sun Server X4-4 were EOL at the time.


8X DVD-ROM Writer / 24X CD-ROM Writer

Option 7109368

7071296 7082409
Teac Gen4 DV-28S-A
SATA Interface

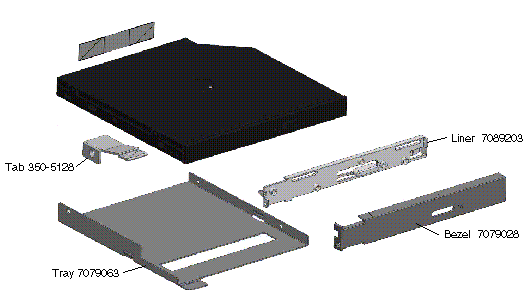

Slimline 1/2" Height		 DVD Assembly/FRU
DVD 7071296
Tray 7079063
Bezel 7079028
Liner 7089203
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write



8X DVD-ROM Writer / 24X CD-ROM Writer

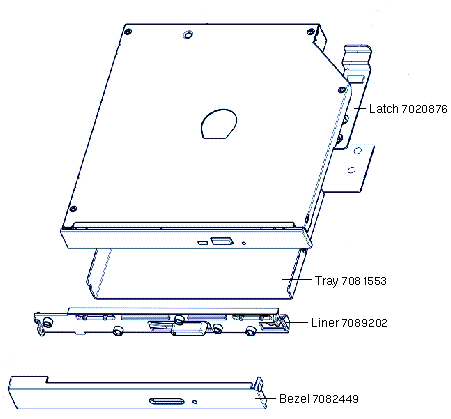

7071296 7081551
Teac Gen4 DV-28S-A
SATA Interface
Slimline 1/2" Height		 DVD Assembly/FRU
DVD 7071296
Tray 7081553
Bezel 7082449
Liner 7089202
Filler 7089494
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write



8X DVD-ROM Writer / 24X CD-ROM Writer

7071296 7089963 7309891 7079141
Teac Gen4 DV-28S-A
SATA Interface
Slimline 1/2" Height		 Teac Gen5 DV-W28S-BZ3
SATA Interface
Slimline 1/2" Height		 Teac Gen6 DV-W28S-CZ3
SATA Interface

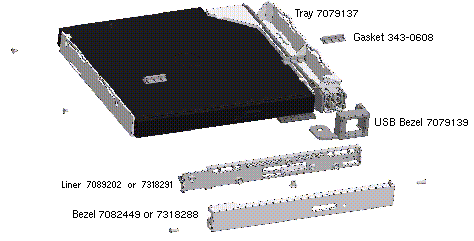

Slimline 1/2" Height		 DVD Assembly/FRU
DVD 7071296
DVD 7089963
DVD 7309891
Tray 7079137
Bezel 7082449
Bezel 7318288
USB 501-7698
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write		 8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write

  1. Assembly 7079141 was released in May 2014. (E0017011)
  2. DVD 7089963 was added to 7079141 in March 2015. (E0024279)


8X DVD-ROM Writer / 24X CD-ROM Writer

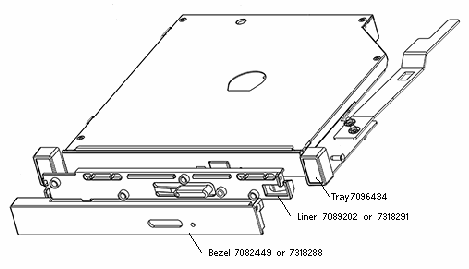

7089963 7096965
SATA Interface
Slimline 1/2" Height
Teac Gen5 DV-W28S-BZ3		 DVD Assembly/FRU
DVD 7089963
Bezel 7082449
Bezel 7318288
Liner 7089202
Liner 7318291
Tray 7096434



8X DVD-ROM Writer / 24X CD-ROM Writer

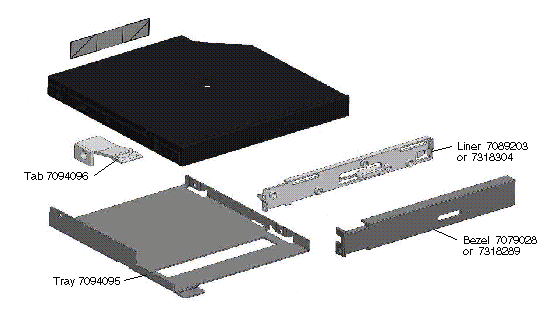

7089963 7302240
SATA Interface
Slimline 1/2" Height
Teac Gen5 DV-W28S-BZ3		 DVD Assembly/FRU
DVD 7089963
Bezel 7079028
Bezel 7318289
Liner 7089203
Liner 7318304
Tray 7094095
Tab 7094096
M2 × 2.3mm Screws
M2 × 4mm Screws



8X DVD-ROM Writer / 24X CD-ROM Writer

7089963 7309891 7336333 7309375
Teac Gen5 DV-W28S-BZ3
SATA Interface
Slimline 1/2" Height		 Teac Gen6 DV-W28S-CZ3
SATA Interface
Slimline 1/2" Height		 Teac Gen7 DV-W28S-FZ3
SATA Interface

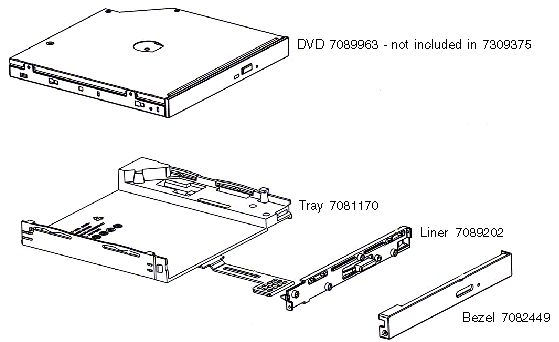

Slimline 1/2" Height		 Tray Assembly
Tray 7081170
DVD 7089963
DVD 7309891
DVD 7336333
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write		 8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write



8X DVD-ROM Writer / 24X CD-ROM Writer

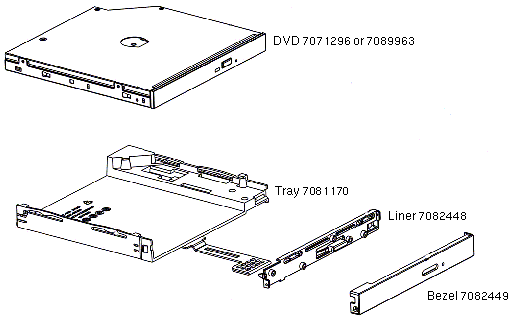

7071296 7089963 7080802
Teac Gen4 DV-28S-A
SATA Interface
Slimline 1/2" Height		 SATA Interface
Slimline 1/2" Height
Teac Gen5 DV-W28S-BZ3		 DVD Assembly/FRU
DVD 7071296
DVD 7089963
Tray 7081170
Bezel 7082449
Liner 7082448
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write

Notes

  1. Assembly 7080802 was released in June 2014. (M0009464)
  2. DVD 7089963 was added to 7080802 in February 2015. (E0022769)


8X DVD-ROM Writer / 24X CD-ROM Writer

7309891 7314403
SATA Interface
Slimline 1/2" Height

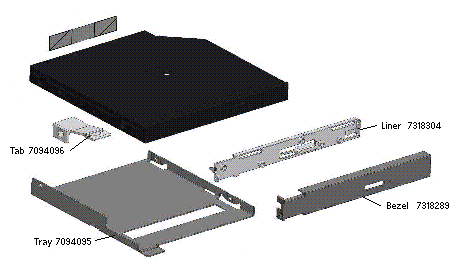

Teac Gen6 DV-W28S-CZ3		 DVD Assembly/FRU
DVD 7309891
Tray 7094095
Bezel 7318289
Liner 7318304
Tab 7094096
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write
7336333 7314403
SATA Interface
Slimline 1/2" Height
Teac Gen7 DV-W28S-FZ3		 DVD Assembly/FRU
DVD 7336333
Bezel 7318289
Tray 7094095
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write



8X DVD-ROM Writer / 24X CD-ROM Writer

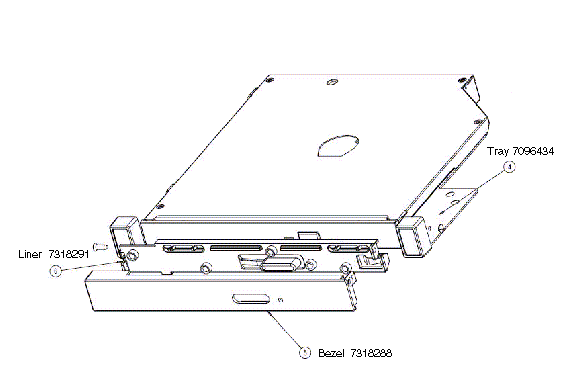

7309891 7336333 7319315
SATA Interface
Slimline 1/2" Height
Teac Gen6 DV-W28S-CZ3		 SATA Interface
Slimline 1/2" Height
Teac Gen7 DV-W28S-FZ3		 DVD Assembly/FRU
DVD 7309891
or DVD 7336333
Tray 7096434
Bezel 7318288
Liner 7318291
8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write		 8x DVD / 24x CD Read
8x/8x DVD-R/RW Write
8x/8x DVD+R/RW Write
24x/24x CD-R/RW Write

Notes

  1. The Gen6 DVD was added to the X5-2 and X5-2L in November 2015. (E0026791)
  2. The Gen6 DVD was added to the SPARC T7-1 in December 2015. (E0028008)

  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
