Notes

1. Drive 7045846 was released in August 2013. (E0016930)
2. Assembly 7045850 with drive 7045846 was released in August 2013. (E0017123)
3. Assembly 7070656 with drive 7045846 was released in August 2013. (E0016930)
4. Drive 7082883 was released in October 2013. (E0017528)
   It replaced 7045846 as the primary drive of assemblies 7045850 & 7070656.
5. Drive 7045846 was removed from 7045850 and 7070656 in September 2014. (E0021808)

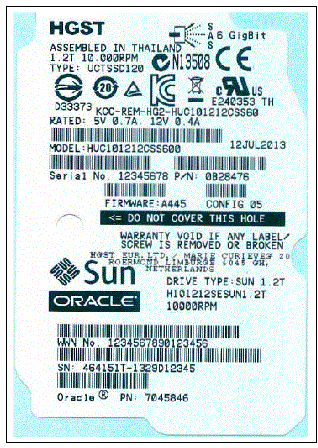

6. The Hitachi Model Number on the serial number label is HUC101212CSS600.
7. The Sun Model Number on the serial number label is HUC101212CSS600.
8. The Product Identification in SCSI Inquiry bytes 16-31 is H101212SESUN1.2T.

Hitachi HUC101212CSS600 (1.2TB) 2 1/2" 10000 RPM Serial Attached SCSI 6.0Gb/s Options 7106617 / 7106618 7045846 7082883 15mm Height Cobra-EP T10 PI Type 1 Firmware A445 15mm Height Cobra-EP T10 PI Type 1 Firmware ≥ A447 7045850 7070656 Marlin Bracket FRU Bracket 541-2123 Option 7106617 Coral-Dory Bkt FRU 2.5" Adapter 7042920 3.5" Bracket 7050989 or 3.5" Bracket 7343235 Left Bracket 7042923 Option 7106618
