2-Slot Disk Backplane

7023515	541-4674
2-Slot Backplane	2-Slot Assembly 2.5" Assembly

X3-2L and X4-2L Front Chassis View

X5-2L Front Chassis View

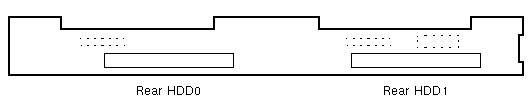

Rear Chassis View

Sun Fire X4270 M3/Sun Server X3-2L Codename: Concord Sun Server X4-2L Codename: Concord+

Notes

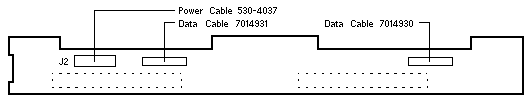

1. The 2-Slot Backplane FRU includes Cables 7014930, 7014931, and 530-4037.
2. Data Cable 7014930 is one cable, SATA to SATA, 400mm long.
3. Data Cable 7014931 is one cable, SATA to SATA, 320mm long.

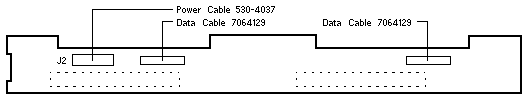

4. Data Cable 7064129 is two cables, SFF-8087 to SATA, 600mm and 700mm long.
5. Data Cable 7064129 is included with X5-2L 12-Slot Backplane Cable Kit 7094266.
6. Data Cable 7064129 is included with X5-2L 24-Slot Backplane Cable Kit 7094267.

References

1. Sun Server X3-2L (Sun Fire X4270 M3) Documentation.
2. Sun Server X4-2L Documentation.
3. Sun Server X5-2L Documentation.
