Sun Blade 1500 Workstation - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5949 [C]	3V Lithium Battery CR2032	n/a

Boot PROM
Socket	Manufacturing Part #	Patch
n/a	525-2035	119236

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	527-1071	1.064GHz USIIIi	n/a
n/a	527-1087	1.064GHz USIIIi	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
X311L [S]	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
X312L [S]	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
X314L [S]	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
X317L [S]	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X383L [S]	Localized Power Cord Kit - Danish
X383L [S]	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	530-1819 [C]
X384L [S]	Localized Power Cord Kit - Italian
X384L [S]	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
X386L [S]	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-1819 [C]	Localized Power Cord Kit - Danish	n/a

Card/Reader
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5018 [F]	Smart Card Reader	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1155A [S]	370-2728 [C]	High Speed Serial Interface PCI (HSI/P) 2.0	n/a
X1157A [S]	501-3028 [C]	SunATM-155/MFiber PCI 4.0	n/a
X1158A [S]	501-3027 [C]	SunATM-155/UTP PCI 4.0	n/a
X1159A [S]	501-3029 [C]	SunATM-622/MFiber PCI 4.0	n/a
X2156A [S]	375-0100 [C]	Serial Asynchronous Interface PCI (SAI/P) 3.0	n/a
X4011A [S]	501-6039 [C]	Crypto Accelerator 4000 UTP (copper)	n/a
X4012A [S]	501-6040 [C]	Crypto Accelerator 4000 MMF (fiber)	n/a
X4111A [S]	501-6039 [C]	Crypto Accelerator 4000 UTP (copper)	n/a
X4112A [S]	501-6040 [C]	Crypto Accelerator 4000 MMF (fiber)	n/a
X6762A [S]	375-3089 [C]	Crypto Accelerator 1000	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
X5405A [S]	80GB 7200RPM IDE Disk Drive
	370-5522 [C]	Seagate ST380011A (80GB - 7200 RPM - IDE Disk)	n/a
	370-5522 [C]	Seagate ST380021A (80GB - 7200 RPM - IDE Disk)	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1033A [S]	501-5019 [C]	Sun FastEthernet PCI Adapter (FE/P) 2.0	n/a
X1034A [S]	501-5406 [C]	Quad FastEthernet PCI (QFE/P)	n/a
X1141A [S]	501-4373 [C]	Gigabit Ethernet PCI (GBE/P) 2.0	n/a
X1150A [S]	501-5902 [C]	Sun GigaSwift Ethernet UTP (Copper)	n/a
X1151A [S]	501-5524 [C]	Sun GigaSwift Ethernet MMF (Fiber)	n/a
X3150A [S]	501-5902 [C]	Sun GigaSwift Ethernet UTP (Copper)	n/a
X3151A [S]	501-5524 [C]	Sun GigaSwift Ethernet MMF (Fiber)	n/a
X4150A [S]	501-6719 [C]	GigaSwift Ethernet UTP (GCS)	n/a
X4151A [S]	501-6762 [C]	GigaSwift Ethernet MMF (GFS)	n/a
X4444A ¹ [S]	501-6522 [C]	Quad GigaSwift Ethernet UTP (QGE)	n/a
X4445A [S]	501-6738 [C]	Quad GigaSwift PCI-X Ethernet (QGE-X)	n/a

¹ If replacing X4444A with X4445A (same driver but different chip set), a reconfigure boot is required. See Problem article 1003454.1.

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5679 [F]	Front Fan	n/a
n/a	370-5680 [F]	Rear Fan	n/a
n/a	370-5686 [F]	CPU Fan/Heatsink w/ clips	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-QF2 [S]	375-3102 [C]	2Gb PCI Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-QF2 [S]	375-3108 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2 [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF2-Z [S]	375-3363 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [C]	4Gb PCI-X Dual FC Host Adapter	375-3294 [C]
X6727A [S]	375-3030 [C]	PCI Dual FC Host Adapter+	n/a
X6799A [S]	375-3019 ² [C]	PCI Single FC Host Adapter	n/a
n/a	375-3294 [C]	4Gb PCI-X Dual FC Host Adapter	n/a

² 375-3019 with SC connector is no longer available. The substitute adapter uses a smaller LC connector.

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3685A [S]	375-3069 [C]	XVR-500 Graphics Accelerator	n/a
X3769A [S]	375-3126 [C]	XVR-100 Graphics Accelerator (32MB)	n/a
X3770A [S]	375-3181 [C]	XVR-100 Graphics Accelerator (64MB)	n/a
X3780A [S]	375-3153 [C]	XVR-600 Graphics Accelerator	n/a
X7296A [S]	375-3290 ³ [C]	XVR-100 Graphics Accelerator (64MB)	n/a

³ Refer to FAB article 1001156.1 fuzzy or blurry video with the XVR-100 Graphics Accelerator.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5682 [F]	USB Connector Board with Mounting Bracket	n/a
n/a	375-3140 [F]	I/O Combo Card	n/a

IDPROM
Socket	Manufacturing Part #	Component Type	Host ID
NVRAM0	525-2033 [F]	SEEPROM 1 × MAC	83xxxxxx

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X7402A [S]	512MB DDR Memory Option (2 × 256MB DIMMs)
X7402A [S]	370-5565 ⁴ [C]	256MB Registered DDR DIMM (SPD 0.0)	n/a
X7403A [S]	1GB DDR Memory Option (2 × 512MB DIMMs)
X7403A [S]	370-4939 ⁵ [C]	512MB Registered DDR DIMM (SPD 0.0)	n/a
X7404A [S]	2GB DDR Memory Option (2 × 1GB DIMMs)
X7404A [S]	370-4940 ⁶ [C]	1GB Registered DDR DIMM (SPD 0.0)	n/a
X7602A [S]	512MB DDR Memory Option, SPD 1.0 (2 × 256MB DIMMs)
X7602A [S]	370-6201	256MB Registered DDR DIMM (SPD 1.0)	n/a
X7603A [S]	1GB DDR Memory Option, SPD 1.0 (2 × 512MB DIMMs)
X7603A [S]	370-6202	512MB Registered DDR DIMM (SPD 1.0)	n/a
X7604A [S]	2GB DDR Memory Option, SPD 1.0 (2 × 1GB DIMMs)
X7604A [S]	370-6203	1GB Registered DDR DIMM (SPD 1.0)	n/a
X7702A [S]	512MB DDR Memory Option, SPD 0.0 or 1.0 (2 × 256MB DIMMs)
X7702A [S]	370-7680	256MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster	n/a
X7703A [S]	1GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 512MB DIMMs)
X7703A [S]	370-7670	512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster	n/a
X7704A [S]	2GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 1GB DIMMs)
X7704A [S]	370-7671	1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster	n/a
n/a	540-6228 [C]	Qty 2 - 256MB DDR, SPD 1.0 DIMMs (512MB Memory Assembly)	n/a
n/a	370-6201	256MB Registered DDR DIMM (SPD 1.0)	n/a
n/a	540-6229 [C]	Qty 2 - 512MB DDR, SPD 1.0 DIMMs (1GB Memory Assembly)	n/a
n/a	370-6202	512MB Registered DDR DIMM (SPD 1.0)	n/a
n/a	540-6230 [C]	Qty 2 - 1GB DDR, SPD 1.0 DIMMs (2GB Memory Assembly)	n/a
n/a	370-6203	1GB Registered DDR DIMM (SPD 1.0)	n/a
n/a	540-6399 [C]	Qty 2 - 256MB DDR, SPD 0.0/1.0 DIMMs (512MB Memory Assembly)	n/a
n/a	370-7680	256MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster	n/a
n/a	540-6400 [C]	Qty 2 - 512MB DDR, SPD 0.0/1.0 DIMMs (1GB Memory Assembly)	n/a
n/a	370-7670	512MB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster	n/a
n/a	540-6401 [C]	Qty 2 - 1GB DDR, SPD 0.0/1.0 DIMMs (2GB Memory Assembly)	n/a
n/a	370-7671	1GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster	n/a

⁴ FRU F370-5565 contains two 256MB DIMMs.
⁵ FRU F370-4939 contains two 512MB DIMMs.
⁶ FRU F370-4940 contains two 1GB DIMMs.
NOTE: Reference the Open Boot PROM requirements for your system.
NOTE: Options and CRUs consist of 2 DIMMs. Always swap out memory DIMMs in pairs. Ordering new memory as either X-options or CRUs should guarantee that two matched DIMMs are available for installation.

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X2134A [S]	370-6200	Rear Guide Kit	n/a
X2134A [S]	375-3116 [C]	SunPCi III 1.4GHz Co-Processor Card, 256MB memory	n/a
X2136A [S]	370-6200	Rear Guide Kit	n/a
X2136A [S]	375-3203 [C]	SunPCi IIIpro 1.6GHz Co-Processor Card, 256MB memory	n/a
X7066A [S]	370-5463 [C]	SunPCi III 256MB SODIMM memory expansion	n/a
X7067A [S]	370-5967 [C]	SunPCi III 512MB SODIMM memory expansion	n/a
n/a	370-5683 [C] [S]	Speaker	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1583 [F]	360 Watt AC Input Power Supply	n/a
n/a	300-1666 [F]	420 Watt AC Input Power Supply	n/a
n/a	300-1906 [F]	420 Watt AC Input Power Supply	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5690 [C]	16X DVD-ROM Drive	n/a
n/a	370-5693 [C]	48X CD-Writer	n/a
n/a	370-7699 [C]	16X DVD-ROM Drive	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI2SCSI-LM320 [S]	375-3191 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a
SGXPCI2SCSILM320-Z [S]	7050788 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	375-3365 ⁸ [C]
X1032A [S]	501-5656 [C]	Single-Ended Ultra/Wide SCSI/FastEthernet (SunSwift PCI)	n/a
X2222A [S]	501-5727 [C]	Dual FastEthernet / Dual SCSI PCI Adapter	n/a
X4422A [S]	501-6635 [C]	Dual GigabitEthernet / Dual SCSI PCI Adapter	n/a
X5010A [S]	375-0097 [C]	Single-Channel Single-Ended Ultra/Wide SCSI (PCI)	n/a
X6540A [S]	375-0005 [C]	Dual Single-Ended Ultra/Wide SCSI (PCI)	n/a
X6541A [S]	375-0006 [C]	Dual Differential Ultra/Wide SCSI (UDWIS/P)(HVD)	n/a
X6758A [S]	375-3057 ⁹ [C]	PCI Dual Ultra3 SCSI Host Adapter (LVD)	n/a
n/a	375-3365 ⁷ [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a

⁷ Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
⁸ Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
⁹ The necessary drivers (SUNWqus, SUNWqusu, SUNWqusx, & SUNWqusux) and patches for this product are not included in Solaris 8 or 9, but must be downloaded. Please see How To article 1018123.1 for details.
NOTE: 375-0005, 375-0006, & 375-0097 are not recognized by the Sun Blade 1500 OBP or the probe-scsi-all command, and are not bootable devices for the Sun Blade 1500.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	375-3128 ¹⁰ [F]	System Board with 1× 1.062GHz CPU, 0MB	n/a
	375-3118	Sun Blade 1500 0MB Motherboard w/o UltraSPARC IIIi	n/a
	370-5949 [C]	3V Lithium Battery CR2032	n/a
	525-2033 [F]	NVRAM with Carrier	n/a
	527-1071	1.064GHz USIIIi	n/a
	527-1087	1.064GHz USIIIi	n/a

¹⁰ CPU Fan/Heatsink (370-5686) is not included with this part.

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

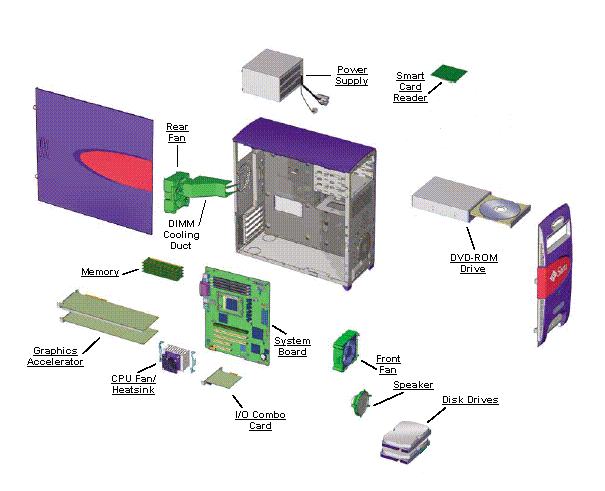

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	370-5973 [C]	FRU, Cable Kit
NS	n/a	Power Switch Cable
NS	n/a	USB Cable to Audio/USB Combo
NS	n/a	Audio Cable to Audio/USB Combo
NS	n/a	Smart Card Reader Cable
NS	n/a	Front Power Switch
NS	n/a	Secondary IDE Cable
NS	n/a	Primary IDE Cable
NS	n/a	IDE (Disk and CD) Power Cable
