Single-Ended Ultra/Wide SCSI (PCI)

Codename: Avalon

Option 5010

375-0097
3.3/5V 32Bit 33MHz

Additional Information & Views

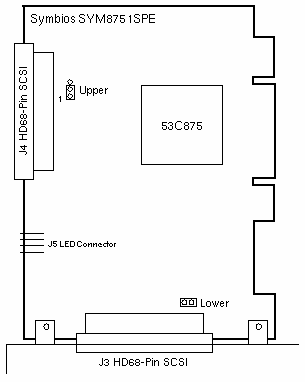

LOWER	UPPER	DESCRIPTION
1-2	1-2	Automatic Termination Enabled
Out	-	Lower Byte Termination Disabled
-	Out	Upper Byte Termination Disabled
-	2-3	Upper Byte Termination Enabled

Notes

1. The minimum OS is 2.5.1 HW: 11/97, 2.6 HW: 5/98, or 7 HW: 3/99.
2. The default jumper configuration enables automatic termination.
3. Option 5010 is not recognized by the SB1500 or SB2500 OBP. (BugIDs 15197225 [SUNBT4996464], 15114320 [SUNBT4712295], 15191019 [SUNBT4974141])
4. Option 5010 is not a bootable device in the SB1500 or SB2500. (BugIDs 15197225 [SUNBT4996464], 15114320 [SUNBT4712295], 15191019 [SUNBT4974141])

Reference

PCI UltraSCSI Host Adapter Installation Guide, 806-3126.
