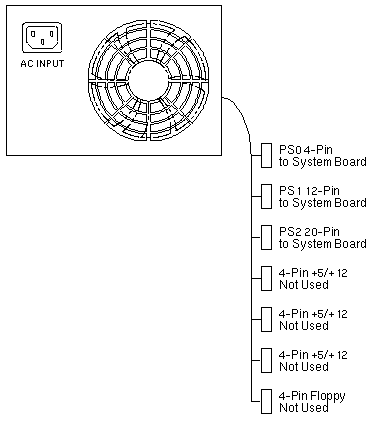

Samsung PSD-350DAG1
360 Watt Power Supply

300-1583
AC Input Power Supply

AC Input

100-240VAC 50/60Hz 8.0A/4.0A

DC Output

+3.3V +5V +12V -12V +5Vsb
28.0A 32.0A 15.0A 0.5A 2.0A

Sun Blade 1500 Codename: Taco

Notes

  1. The combined output of +3.3 and +5 can not exceed 180 Watts.
  2. The combined output of +3.3, +5, and +12 can not exceed 330 Watts.
  3. The label was changed from 350W to 360W in October 2003 by WO_27680 . There was no functional change to the Power Supply.
