Sun SPARC Enterprise T5220 Server - Full Components List

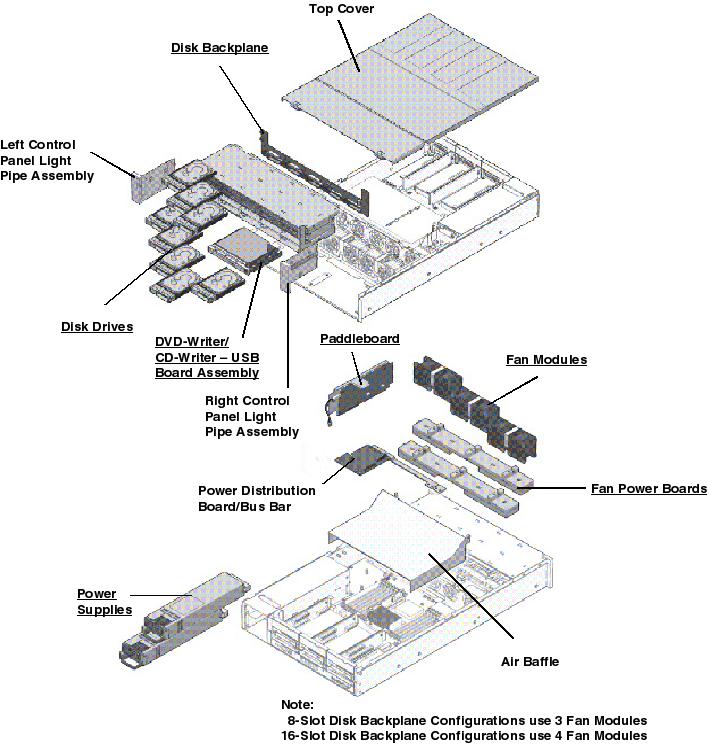

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[C] Buy
3V Lithium Coin Cell Battery
n/a
Cables
Option #
Manufacturing
Description
Previous
SEDX9SA2Z
[S]
560-2921 1
[F]
Mini SAS Cable Kit
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 710mm n/a
4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm n/a
X311L
[S]
Localized Power Cord Kit - North America/Asia
180-1097
[C] Buy
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black
n/a
X312E
[S]
Localized Power Code Kit - China
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M
n/a
X312F
[S]
Localized Power Cord Kit - Argentina
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black
n/a
X312G
[S]
Localized Power Cord Kit - Korea
180-1662
[C] Buy
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black
n/a
X312L
[S]
Localized Power Cord Kit - Continental Europe
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black
n/a
X314L
[S]
Localized Power Cord Kit - Swiss
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
X317L
[S]
Localized Power Cord Kit - U.K.
180-1997
[C] Buy
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black
n/a
X332A
[S]
Localized Power Cord Kit - Taiwan
180-2121
[C]
IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black
n/a
X383L
[S]
Localized Power Cord Kit - Danish
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black
n/a
X384L
[S]
Localized Power Cord Kit - Italian
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black
n/a
X386L
[S]
Localized Power Cord Kit - Australian
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black
n/a
n/a
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black
n/a
n/a
530-3100
RJ45F to DB9F Adapter
n/a
1 SAS Cable Kit SEDX9SA2Z/560-2921 is required to install SGXPCIESAS-R-INT-Z/375-3536.
Communication
Option #
Manufacturing
Description
Previous
X1236A-Z
[S]
375-3382
[C]
Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile
n/a
X4237A
[S]
375-3606
[C]
Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express
n/a
X6000A 2
[S]
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000
n/a
2 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec accelerationNOTE: X-Option X4237A (Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter) is supported in PCI Express slots 0, 2, 3 or 5.
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
501-7730
[F]
8-Slot Disk Backplane, PATA DVD
n/a
n/a
501-7760
[F]
16-Slot Disk Backplane, PATA DVD
n/a
n/a
511-1256
[F]
8-Slot Disk Backplane, SATA DVD
n/a
n/a
511-1257
[F]
16-Slot Disk Backplane, SATA DVD
n/a
n/a
542-0355 [F]
Backplane Retainer Clip Kit
n/a
Grey 2U Backplane Retainer Clip n/a
Disks
Option #
Manufacturing
Description
Previous
SESX3A11Z
[S]
540-7354 [C]
73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72G] n/a
Seagate ST973402SS [ST973402SSUN72G] n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G] n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G] n/a
n/a
SESX3A21Z
[S]
540-7361 [C]
73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks
n/a
Seagate ST973451SS [ST973451SSUN72G] n/a
n/a
SESX3C11Z 3
[S]
540-7355 [C]
146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
n/a
540-7868 [C]
146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
Seagate ST9146803SS [ST914603SSUN146G] n/a
Hitachi HUC103014CSS600 [H103014SCSUN146G] n/a
n/a
SESX3G11Z
[S]
540-7869 [C]
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9300603SS [ST930003SSUN300G] n/a
Hitachi HUC103030CSS600 [H103030SCSUN300G] n/a
n/a
SESX3G12Z
[S]
542-0388 [C] Buy
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk) n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
n/a
SESX3K11Z
[S]
542-0287 [C] Buy
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;
n/a
Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk) n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
SESX3Y11Z
[S]
540-7841 [C]
32GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk) n/a
n/a
3 Assembly 540-7868 became the primary component in option SESX3C11Z, and 540-7355 became the secondary component, in April 2009.
(WO_41247)
(WO_40981)
Ethernet
Option #
Manufacturing
Description
Previous
SE3X7XA1Z
[S]
501-7489 4
[C]
10GbE XAUI Card
n/a
SE3X7XT1Z
[S]
375-3301
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
n/a
7058828
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
375-3301
[C]
SE3X7XT2Z
[S]
375-3495
[C]
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)
n/a
SESX7XA1Z
[S]
501-7489 5
[C]
10GbE XAUI Card
n/a
SESX7XT1Z
[S]
375-3301
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
n/a
7058828
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
375-3301
[C]
SESX7XT2Z
[S]
375-3495
[C]
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)
n/a
X1027A-Z
[S]
7054890
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
X1106A-Z
[S]
375-3585
[C]
Intel PRO/10GbE-SR x8 PCI Express
n/a
X1107A-Z
[S]
375-3586
[C]
Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket
n/a
X4447A-Z
[S]
371-2348
Bracket Standard
n/a
7055021
[C]
Quad Port GbE PCI Express, UTP
511-1422
[C]
+
n/a
X5558A
[S]
7058828
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
375-3301
[C]
X5560A-Z
[S]
375-3495
[C]
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)
n/a
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
n/a
n/a
511-1422
[C]
Quad Port GbE PCI Express, UTP
501-7606
[C]
n/a
4 Requires one XFP Transceiver5 Requires one XFP Transceiver
Fan
Option #
Manufacturing
Description
Previous
n/a
541-2068 [C]
CPU Dual Fan Assembly w/ Plastic Fingerguards
n/a
n/a
n/a
541-2211
[F]
Fan Power Board
n/a
n/a
n/a
n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
SG-XPCIE1FC-EM4
[S]
375-3396
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053428
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-EM8-Z
[S]
371-4295
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053433
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF4
[S]
375-3355
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF8-Z
[S]
371-4324
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE2FC-EM4
[S]
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
7053427
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-EM8-Z
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF4
[S]
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-QF8-Z
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
Graphics
Option #
Manufacturing
Description
Previous
X3000A
[S]
375-3545
[C]
XVR-300 x8 Graphics Accelerator
n/a
530-3474 [C]
DVI-A(M) to HD15F Adapter, 49mm
n/a
530-3998 6
[C]
DMS-59 to Dual DVI-I Cable, 215mm
530-3459 [C]
X4240A
[S]
605-4668
XVR-300X16 Graphics Accelerator
n/a
XVR-300 Graphics Accelerator n/a
DVI-A(M) to HD15F Adapter, 49mm n/a
DMS-59 to Dual DVI-I Cable, 215mm 530-3459 [C]
6 Sun custom overmold to fit systems using the Jake and Elwood chassis.7 Sun custom overmold to fit systems using the Jake and Elwood chassis.
I/O
Option #
Manufacturing
Description
Previous
SELX8LK1Z
[S]
Copper Link Card Kit w/ 2 × Cards & 4M Cable
501-7041
[C]
Copper Link Card
n/a
7060403 [C]
Copper Link Cable, 4M
n/a
n/a
541-2108
[C]
x16/x8 PCI Express Riser Card Assembly
n/a
n/a
x16/x8 PCI Express Riser Card n/a
n/a
n/a
541-2109
[C]
x8/x8 XAUI Riser Card Assembly
n/a
n/a
n/a
n/a
IDPROM
Socket
Manufacturing
Component Type
Host ID
J7901
525-2344 [F]
System Configuration PROM
84xxxxxx
Memory
Option #
Manufacturing
Description
Previous
SESX2A1Z
[S]
2GB Memory Expansion (2 × 1GB) X-Option
501-7952
[C]
1GB DDR2-667/PC2-5300 1.8V FBDIMM
n/a
SESX2A2Z
[S]
2GB Memory Expansion (2 × 1GB) X-Option
511-1264
[C]
1GB DDR2-667/PC2-5300 1.8V FBDIMM
n/a
SESX2B1Z
[S]
4GB Memory Expansion (2 × 2GB) X-Option
501-7953
[C]
2GB DDR2-667/PC2-5300 1.8V FBDIMM
n/a
SESX2B2Z
[S]
4GB Memory Expansion (2 × 2GB) X-Option
511-1161
[C]
2GB DDR2-667/PC2-5300 1.8V FBDIMM
n/a
SESX2C1Z
[S]
8GB Memory Expansion (2 × 4GB) X-Option
501-7954
[C]
4GB DDR2-667/PC2-5300 1.8V FBDIMM
n/a
SESX2D1Z
[S]
16GB Memory Expansion (2 × 8GB) X-Option
511-1262
[C]
8GB DDR2-667/PC2-5300 1.8V FBDIMM
n/a
n/a
7059409
[C]
2GB DDR2-667/PC2-5300 1.8V FBDIMM
n/a
n/a
7059410
[C]
4GB DDR2-667/PC2-5300 1.8V FBDIMM
n/a
Power
Option #
Manufacturing
Description
Previous
SEDX9PS31Z
[S]
300-2030
[C]
Type A227 750 Watt AC Input Power Supply
n/a
SEDX9PS32Z
[S]
300-2232
[C]
Type A227 750 Watt AC Input Power Supply
n/a
SEUX9PS51Z
[S]
300-2235
[C]
Type A249 1100/1200 Watt AC Input Power Supply
n/a
n/a
300-2105
[C]
Type D204 1200 Watt DC Input Power Supply
n/a
n/a
300-2138
[C]
Type A235 1100/1200 Watt AC Input Power Supply
n/a
n/a
541-2073
[F]
Power Distribution Board/Bus Bar Assembly
n/a
n/a
n/a
n/a
Horizontal Power Distribution Board n/a
Vertical Power Distribution Board n/a
n/a
541-4370 8
[F]
Power Distribution Board/Bus Bar Assembly
n/a
n/a
n/a
Horizontal Power Distribution Board n/a
n/a
Vertical Power Distribution Board n/a
8 PDB Assembly 541-4370 only supports a SATA DVD. A PATA DVD is not supported.
Rack
Option #
Manufacturing
Description
Previous
SESX9CA1Z
[S]
371-2742 [C]
1U/2U Cable Management Arm
n/a
SESX9RK1Z
[S]
371-2741 [C]
1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm
n/a
SESX9RK2Z
[S]
371-2740 [C]
1U/2U Snap-In Slide Rail Rackmount Kit, 730mm
n/a
Removable Media
Option #
Manufacturing
Description
Previous
SESX9DV2Z
541-3493
[F]
Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
8x SATA DVD Writer/24x CD-Writer n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer
390-0443
n/a
SESX9DV1Z
[S]
541-2110
[F]
PATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
8x PATA DVD-Writer/24x CD-Writer n/a
n/a
n/a
n/a
541-2732 [F]
USB Assembly
n/a
n/a
n/a
n/a
SCSI
Option #
Manufacturing
Description
Previous
SG-XPCIE2SCSIU320Z
[S]
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
SG-XPCIE8SAS-E-Z
[S]
7050793
[C]
PCI Express 8-Port Host Adapter
375-3487
[C]
SGX-SAS6-R-INT-Z
[S]
7047503
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
375-3701
[C]
7050794
[C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
371-4982 [C]
SGXPCIESAS-R-EXT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3537
[C]
8-Port SAS RAID External HBA
n/a
SGXPCIESAS-R-INT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3536
9
10
[C]
8-Port SAS Adaptec RAID HBA
n/a
XTA-FAS-S3IE96GB
[S]
541-3731
96GB PCI Express Flash Accelerator F20 SAS HBA
n/a
Energy Storage Module (ESM) n/a
511-1275
[C]
24GB Solid State Flash Memory Module, FW D21Y
371-4415
[C]
n/a
371-4415
[C]
24GB Solid State Flash Memory Module
n/a
n/a
371-4982 [C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
n/a
n/a
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3487
[C]
PCI Express 8-Port Host Adapter
n/a
n/a
375-3701
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
-
330-4433
Clear Plastic Air Duct
NS
341-3569
2U Power Supply Unit Filler Panel
NS
341-3573
Ventilated 8-Disk Filler Panel
NS
530-2889
RJ45 to DB25 Serial Port Adapter
NS
530-3459 [C]
DMS-59 to Dual DVI-I Cable, 215mm
NS
530-3623 [F]
Shielded RJ45 to RJ45 Cable, 4M
NS
530-3927 [F]
PDB to System Board Ribbon Cable
NS
541-2069
Enclosure Assembly
NS
NS
NS
NS
NS
NS
NS
NS
NS
Left Side Endcap Lightpipe Assembly
NS
NS
NS
NS
NS
Right Side Endcap Lightpipe
NS
541-2213
[F]
Connector Board Assembly, PATA DVD
NS
NS
Connector Board (Paddle Card), PATA DVD
NS
NS
541-2629
2.5" Disk Drive Filler Panel
NS
541-2636 [F]
Lightpipe Assembly
NS
Right Side Endcap Lightpipe
NS
Left Side Endcap Lightpipe Assembly
NS
NS
NS
NS
541-2738
PCI Cross Beam
NS
NS
NS
541-3513 [F]
Connector Board Assembly, SATA DVD
NS
NS
Connector Board (Paddle Card), SATA DVD
NS
NS
F530-3896 [F]
4x Mini SAS Cable, SFF-8087 to SFF-8087, 440mm
NS
NS
4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm
NS
11 Used with 1U server12 Used with 1U server
