16-Slot Disk Backplane

501-7760
See PATA/SATA Compatibility Table

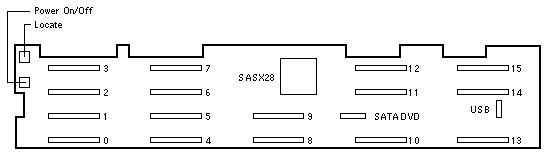

Front View

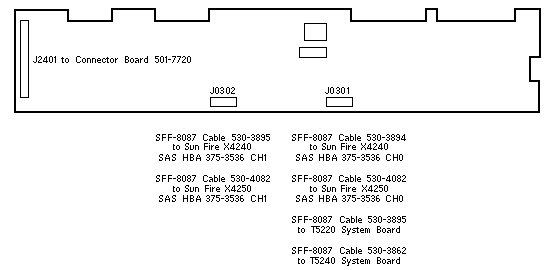

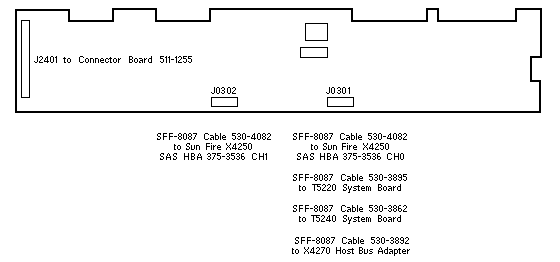

Rear View

Notes

1. The Intel 32GB SSD requires LSI Expander boot code 525-2495-05 on 501-7760-07.
   Install Patch 141043-01. The change was added in March 2009. (WO_40860)
2. Install Solaris 10 umountall Patch 126419-02 and kernel patch 138888-05, reboot,
   then install Patch 141043-01.
3. The SPARC Enterprise T5240 requires 220V AC input with 1.4GHz and 1.6GHz
   processors.

References

1. Sun Storage 7110 Unified Storage System Installation Guide, 820-3756.
2. Sun Storage 7110 Unified Storage System Service Manual, 820-4159.
3. Sun Fire X4240 Server Documentation.
4. Sun Fire X4250 Server Documentation.
5. Sun SPARC Enterprise T5220 Server.
6. Sun SPARC Enterprise T5240 Server.

Notes

1. The SPARC Enterprise T5240 requires 220V AC input with 1.4GHz and 1.6GHz processors.

References

1. Sun Fire X4250 Server Documentation.
2. Sun Fire X4270 Server Documentation.
3. Sun SPARC Enterprise T5220 Server.
4. Sun SPARC Enterprise T5240 Server.
