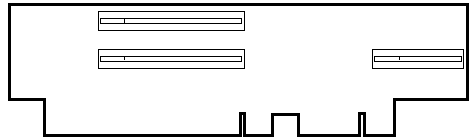

2-Slot x8 PCI Express/XAUI Riser

501-7719	541-2109
PCI Express/XAUI Riser	PCI Express/XAUI Riser FRU 501-7719 + Bracket 541-2531

Sun Fire X4240 Codename: Dorado 2U Sun Fire X4440 Codename: Tucana SPARC Enterprise T5220 Codename: Huron 2U SPARC Enterprise T5240 Codename: Maramba 2U Storage 7110 Codename: Iwashi Storage 7410 Codename: Toro Storage 7410 SAS 2.0 Codename: Amber Road SAS2.0

T5220 Notes

1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
2. Slot 0/3 and 1/4 PCI Express Channels are electrically four lanes wide.
3. One x8/x16 form-factor PCI Express Riser is installed in Slot 2/5.
4. Slot 2/5 PCI Express Channel is electrically eight lanes wide.

T5240 Notes

1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
2. Slot 0/3 and 1/4 PCI Express Channels are electrically eight lanes wide.
3. One x8/x16 form-factor PCI Express Riser is installed in Slot 2/5.
4. Slot 2/5 PCI Express Channel is electrically eight lanes wide.

Sun Fire X4440 Notes

1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
2. One x8/x16 form-factor PCI Express Riser is installed in Slot 2/5.
3. Slot 0, 1, 3, and 4 PCI Express Channels are electrically eight lanes wide.
4. Slot 2 PCI Express Channel is electrically sixteen lanes wide.
5. Slot 5 PCI Express Channel is electrically four lanes wide.

References

1. Sun Fire X4240 Server Documentation.
2. Sun Fire X4440 Server Documentation.
3. Sun SPARC Enterprise T5220 Server Documentation.
4. Sun SPARC Enterprise T5240 Server Documentation.
5. Sun Storage 7X10 Unified Storage Documentation.
