2-Slot x8/x16 PCI Express Riser

501-7715	541-2108

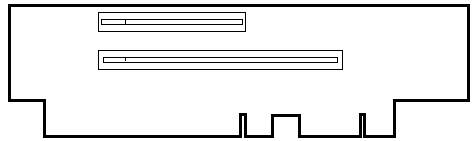

x8/x16 PCI Express Riser	PCI Express Riser FRU 501-7715 + Bracket 541-2531

SPARC Enterprise T5220 Codename: Huron 2U SPARC Enterprise T5240 Codename: Maramba 2U

T5220 Notes

1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
2. Slot 0/3 and 1/4 PCI Express Channels are electrically four lanes wide.
3. One x8/x16 form-factor PCI Express Riser is installed in Slot 2/5.
4. Slot 2/5 PCI Express Channel is electrically eight lanes wide.

T5240 Notes

1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
2. Slot 0/3 and 1/4 PCI Express Channels are electrically eight lanes wide.
3. One x8/x16 form-factor PCI Express Riser is installed in Slot 2/5.
4. Slot 2/5 PCI Express Channel is electrically eight lanes wide.

References

1. Sun SPARC Enterprise T5220 Server Documentation.
2. Sun SPARC Enterprise T5240 Server Documentation.
