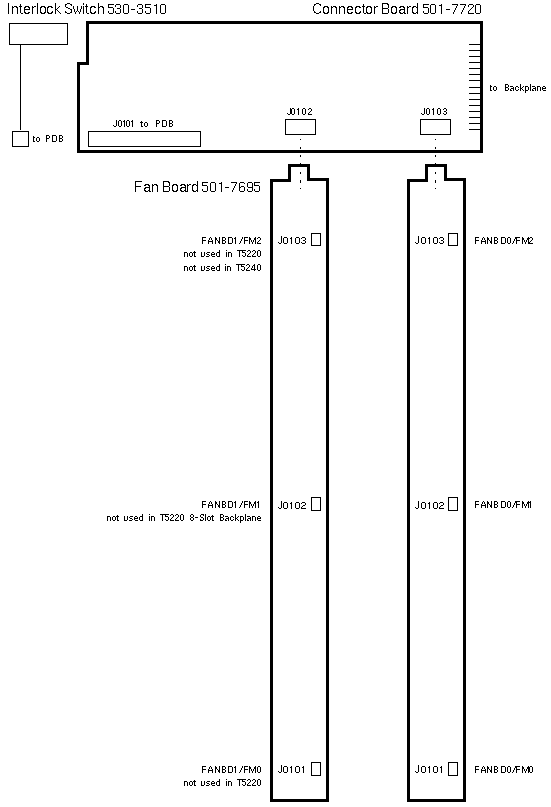

Front Connector Assembly 501-7695 541-2211 Fan Board Fan Board FRU see Fan Board Assembly PATA SATA 501-7720 541-2213 511-1255 541-3513 Connector Board Connector Board FRU w Interlock Switch Connector Board Connector Board FRU w Interlock Switch See PATA/SATA Compatibility Table

Sun Fire X4240 Codename: Dorado 2U Sun Fire X4250 Codename: Doradi 2U Sun Fire X4270Codename: Lynx 2U Elwood Sun Fire X4440 Codename: Tucana Sun Fire X4450 Codename: Tucani SPARC Enterprise T5220 Codename: Huron 2U SPARC Enterprise T5240 Codename: Maramba 2U Storage 7110 Codename: Iwashi Storage 7410 Codename: Toro

Fan Board Top Cover 330-4463-03 Notes

1. 541-2211-03 Rev 50 with 330-4463-03 was released in July 2007. (WO_37257)
2. FRU F541-2211-03 Rev 50 with 330-4463-03 was released in July 2007. (WO_37257)

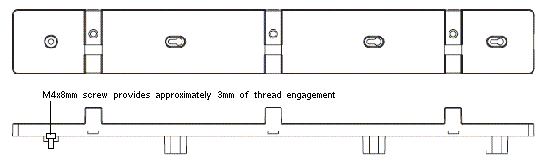

3. 541-2211-03 Rev 50 is fastened with M4x8mm screw 240-5460.
4. FRU F541-2211-03 Rev 50 is fastened with M4x8mm screw 240-5460.
5. The Revision level is not included on the shipping box or on the assembly.

Fan Board Top Cover 330-4463-04 Notes

1. 541-2211-03 Rev 51 with 330-4463-04 was released in May 2008. (WO_39036)

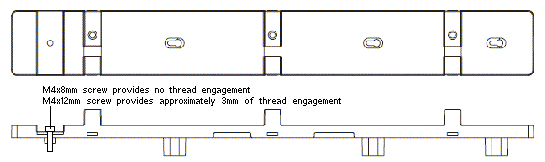

2. 541-2211-03 Rev 51 and Rev 52 are fastened with M4x12mm screw 240-5459.
3. 541-2211-04 Rev 50 with 501-7695-04 is fastened with M4x12mm screw 240-5459.
4. FRU F541-2211-03 Rev 51 is fastened with M4x12mm screw 240-5459.
5. FRU F541-2211-03 Rev 51 does not include M4x12mm screw 240-5459.
6. Screw 240-5459 was added to F541-2211-04 Rev 50 in March 2009. (WO_40906)
7. FRU F541-2211-03 labeled "WO 41390" includes M4x12mm screw 240-5459.
8. FRU F541-2211-04 Rev 50 includes assembly 541-2211-04 with 501-7695-04.
9. The Revision level is not included on the shipping box or on the assembly.
