Sun Fire X4250 Server - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-2210 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
X6390A [S] 3.33GHz Dual-Core Xeon X5260
310-0153 [F] Xeon Heatsink n/a
371-3948 [F] 3.33 GHz CPU, Xeon X5260, Dual Core, 80W n/a
X6391A [S] 2.33GHz Quad-Core Xeon E5410
310-0153 [F] Xeon Heatsink n/a
371-3950 [F] 2.33GHz CPU, Xeon E5410 Quad Core, 80W n/a
X6392A [S] 2.83GHz Quad-Core Xeon E5440
310-0153 [F] Xeon Heatsink n/a
371-3949 [F] 2.83GHz CPU, Xeon E5440 Quad Core, 80W n/a
X6393A [S] 3.16GHz Quad-Core Xeon X5460
310-0153 [F] Xeon Heatsink n/a
371-3952 [F] 3.16GHz CPU, Xeon X5460 Quad Core, 1333MHz FSB, 120W n/a
X6394A [S] 2.5GHz Quad-Core Xeon L5420
310-0153 [F] Xeon Heatsink n/a
371-3951 [F] 2.5GHz CPU, Xeon L5420 Quad Core, 1333MHz FSB, 50W n/a
X6395A [S] 3.00GHz Quad-Core Xeon E5450
310-0153 [F] Xeon Heatsink n/a
371-4146 [F] 3.00GHz CPU, Xeon E5450 Quad Core, 80W n/a
X6396A [S] 3.5GHz Dual-Core Xeon X5270
310-0153 [F] Xeon Heatsink n/a
371-4388 [F] 3.5GHz CPU, Xeon X5270 Dual Core, 80W n/a
X6397A [S] 2.66GHz Quad-Core Xeon L5430
310-0153 [F] Xeon Heatsink n/a
371-4389 [F] 2.66GHz CPU, Xeon L5430 Quad Core, 50W n/a
X6398A [S] 3.33GHz Quad-Core Xeon X5470
310-0153 [F] Xeon Heatsink n/a
371-4390 [F] 3.33GHz CPU, Xeon X5470 Quad Core, 120W n/a
n/a 350-1271 [F] Thermal Grease FRU w/ Alcohol Wipe n/a
  • Alcohol Wipe Cleaner
 n/a
  • X23-7783D Thermal Grease Syringe - 0.5gm (0.25 - 0.30cc)
 n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 530-4082 [C] 4x Mini SAS Cable Pair n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
X1236A-Z [S] 375-3382 [C] Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile n/a
X4217A-Z [S] 375-3549 [C] Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile n/a
X6000A 1 [S] 375-3424 [C] PCI Express Sun Crypto Accelerator 6000 n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 501-7760 [F] 16-Slot Disk Backplane, PATA DVD n/a
n/a 511-1257 [F] 16-Slot Disk Backplane, SATA DVD n/a
n/a 542-0355 [F] Backplane Retainer Clip Kit n/a
  • 330-5301
  • Grey 2U Backplane Retainer Clip
 n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
XRA-SS2CF-146G10K [S] 540-7355 [C] 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Fujitsu MBB2147RC [MBB2147RCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-SS2CF-73G10K [S] 540-7354 [C] 73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Fujitsu MAY2073RC [MAY2073RCSUN72G]
    (73GB - 10000 RPM - SAS Disk)
 n/a
  • Seagate ST973402SS [ST973402SSUN72G]
    (73GB - 10000 RPM - SAS Disk)
 n/a
  • Fujitsu MBB2073RC [MBB2073RCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101473CSS300 [H101473SCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-SS2CF-73G15K [S] 540-7361 [C] 73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks n/a
  • Seagate ST973451SS [ST973451SSUN72G]
    (73GB - 15000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-ST2CF-32G2SSD [S] 540-7841 [C] 32GB Solid State SATA Drive Assembly n/a
  • Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRB-SS2CF-146G10K [S] 540-7868 [C] 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Seagate ST9146803SS [ST914603SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC103014CSS600 [H103014SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 540-7869 [C] 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9300603SS [ST930003SSUN300G]
    (300GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC103030CSS600 [H103030SCSUN300G]
    (300GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIEFCOE2-Q-SR [S] 7053422 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR 375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S] 7053423 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach 375-3682 [C]
X1027A-Z [S] 7054890 [C] PCI Express Dual 10-Gigabit Ethernet Fiber 501-7283 [C]
X1106A-Z [S] 375-3585 [C] Intel PRO/10GbE-SR x8 PCI Express n/a
X1107A-Z [S] 375-3586 [C] Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket n/a
X4446A-Z [S] 7054739 [C] PCI Express Quad Gigabit Ethernet UTP 375-3481 [C]
X5558A [S] 7058828 [C] 10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) 375-3301 [C]
X5560A-Z [S] 375-3495 [C] 10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR) n/a
X7280A-2 [S] 371-0905 [C] PCI Express Dual Gigabit Ethernet UTP n/a
X7281A-2 [S] 7056733 [C] PCI Express Dual Gigabit Ethernet MMF 371-0904 [C]
n/a 371-0904 [C] PCI Express Dual Gigabit Ethernet MMF n/a
n/a 375-3301 [C] 10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) n/a
n/a 375-3481 [C] PCI Express Quad Gigabit Ethernet UTP n/a
n/a 375-3681 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR n/a
n/a 375-3682 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach n/a
n/a 501-7283 [C] PCI Express Dual 10-Gigabit Ethernet Fiber n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-2211 [F] Fan Power Board n/a
  • 330-4463
  • Top Bracket
n/a
  • 330-4464
  • Bottom Bracket
 n/a
  • 501-7695
  • Fan Board
 n/a
n/a 541-2940 [C] CPU Dual Fan Assembly w/ Metal Fingerguards n/a
  • 310-0119
  • Delta Fan, 60×38mm, 2U
 n/a
n/a 541-3290 [C] CPU Dual Fan Assembly w/ Metal Fingerguards n/a
  • 310-0210
  • Japan Servo Fan, 60×38mm, 2U
n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE1FC-EM4 [S] 375-3396 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
7053428 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-QF4 [S] 375-3355 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE2FC-EM4 [S] 375-3397 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
7053427 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FC-EM8-Z [S] 7053434 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex 371-4306 [C]
SG-XPCIE2FC-QF4 [S] 375-3356 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
n/a 371-4306 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 341-4139 PCI Filler Panel n/a
n/a 540-7692 [C] x8 PCI Express Riser Pair n/a
  • x8 PCI Express Riser Pair
 n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
X6381A [S] 540-7347 [C] Qty 2 - 2GB DIMMs (4GB Memory Assembly) n/a
  • 2GB Registered ECC DDR2-667/PC2-5300 DIMM
 n/a
X6382A [S] 540-7348 [C] Qty 2 - 4GB DIMMs (8GB Memory Assembly) n/a
  • 4GB Registered ECC DDR2-667/PC2-5300 DIMM
 n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
X6328A [S] 300-1897 [C] Type A217 1050 Watt AC Input Power Supply n/a
n/a 541-2073 [F] Power Distribution Board/Bus Bar Assembly n/a
  • 341-3166
  • Bus Bar Left
 n/a
  • 341-3167
  • Bus Bar Right
 n/a
  • 371-2484
  • PDB Signal Cable
 n/a
  • Horizontal Power Distribution Board
 n/a
  • Vertical Power Distribution Board
 n/a
n/a 541-4370 2 [F] Power Distribution Board/Bus Bar Assembly n/a
  • 341-3166
  • Bus Bar Left
 n/a
  • 341-3167
  • Bus Bar Right
 n/a
  • Horizontal Power Distribution Board
 n/a
  • 371-2484
  • PDB Signal Cable
 n/a
  • Vertical Power Distribution Board
 n/a
2 PDB Assembly 541-4370 only supports a SATA DVD. A PATA DVD is not supported.
NOTE: Order Thermal Grease Kit PN#350-1271 when ordering a replacement Power Distribution Board PN#501-7696.
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
X6324A [S] 371-2742 [C] 1U/2U Cable Management Arm n/a
X6325A [S] 371-2740 [C] 1U/2U Snap-In Slide Rail Rackmount Kit, 730mm n/a
X6326A [S] 371-2741 [C] 1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
X6323A [S] 541-2110 [C] PATA DVD-Writer/CD-Writer - USB Board Assembly n/a
  • 330-4418
  • DVD Tray
 n/a
  • 8x PATA DVD-Writer/24x CD-Writer
 n/a
  • 501-7698
  • USB Board
 n/a
  • 541-2111
  • DVD Bezel
 n/a
X6386A [S] 541-3493 [C] Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly n/a
  • 330-5056
  • DVD Tray
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 n/a
  • 8x SATA DVD Writer/24x CD-Writer
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 390-0443
  • 501-7698
  • USB Board
 n/a
n/a 541-2732 [C] USB Assembly n/a
  • 330-4418
  • DVD Tray
 n/a
  • 341-4072
  • DVD Filler Panel
 n/a
  • 501-7698
  • USB Board
 n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE2SCSIU320Z [S] 7050790 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter 375-3357 [C]
SG-XPCIE8SAS-E-Z [S] 7050793 [C] PCI Express 8-Port Host Adapter 375-3487 [C]
SG-XPCIE8SAS-I-Z [S] 7064052 [C] PCI Express 8-Port SAS Controller 371-3255 [C]
SGXPCIESAS-R-EXT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3537 [C] 8-Port SAS RAID External HBA n/a
SGXPCIESAS-R-INT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3536 3 [C] 8-Port SAS Adaptec RAID HBA n/a
n/a 371-3255 [C] PCI Express 8-Port SAS Controller n/a
n/a 375-3357 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter n/a
n/a 375-3487 [C] PCI Express 8-Port Host Adapter n/a
3 Reference Alert article
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 540-7779 [F] System Board Assembly/FRU n/a
  • 375-3598
  • System Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a
  • n/a
  • System Board Tray
 n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

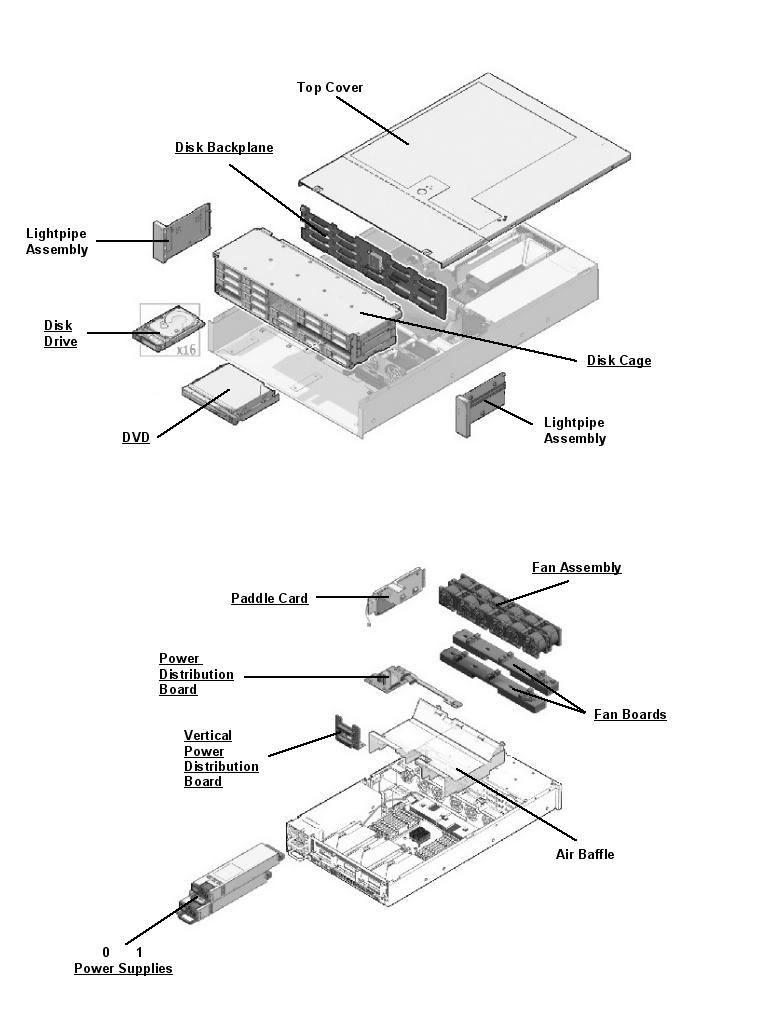

Exploded View

Sun Fire X4250 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
NS 371-2484 PDB Signal Cable
NS 380-1602 X4250-S1-AA Base Assembly
  • 341-4139
  • PCI Filler Panel
NS
  • 540-7618
  • Chassis Subassembly
NS
    • 541-2738
    • PCI Cross Beam
NS
      • 341-3575
      • PCI Cross Beam
NS
      • 341-3990
      • End Cap
NS
    • 541-2956
    • Enclosure Subassembly
NS
      • 541-2075 [F]
      • Bus Bar Set
NS
        • 341-3096
        • Long Red Bus Bar
NS
        • 341-3104
        • Short Blue Bus Bar
NS
      • Connector Board Assembly, PATA DVD
NS
        • 341-3097
        • Bracket
NS
        • 501-7720
        • Connector Board (Paddle Card), PATA DVD
NS
        • 530-3510
        • Interlock Switch Cable
NS
      • 541-2628
      • Chassis Subassembly
NS
        • 541-1988
        • Top Cover
NS
        • 541-2212
        • Disk Cage
NS
        • 541-2958
        • Chassis Subassembly
NS
  • 541-2956
  • Enclosure Subassembly
NS
    • 541-2075 [F]
    • Bus Bar Set
NS
      • 341-3096
      • Long Red Bus Bar
NS
      • 341-3104
      • Short Blue Bus Bar
NS
    • Connector Board Assembly, PATA DVD
NS
      • 341-3097
      • Bracket
NS
      • 501-7720
      • Connector Board (Paddle Card), PATA DVD
NS
      • 530-3510
      • Interlock Switch Cable
NS
    • 541-2628
    • Chassis Subassembly
NS
      • 541-1988
      • Top Cover
NS
      • 541-2212
      • Disk Cage
NS
      • 541-2958
      • Chassis Subassembly
NS 530-3927 [F] PDB to System Board Ribbon Cable
NS 541-2629 2.5" Disk Drive Filler Panel
NS 541-3513 [F] Connector Board Assembly, SATA DVD
NS
  • 341-3097
  • Bracket
NS
  • Connector Board (Paddle Card), SATA DVD
NS
  • 530-3510
  • Interlock Switch Cable
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
