Power One A217
1050 Watt Power Supply

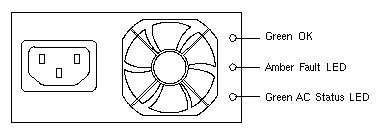

AC Input Labelling

DC Output

Efficiency of 300-1897

110V	20% Load	>83%
	50% Load	88%
	100% Load	85%
230V	20% Load	>84%
	50% Load	>88%
	100% Load	88%

Storage 7110 Codename: Iwashi Storage 7410 Codename: Toro Storage 7410 SAS 2.0 Codename: Amber Road SAS2.0 Sun Fire X4240 Codename: Dorado 2U Sun Fire X4250 Codename: Doradi 2U Sun Fire X4270 Codename: Lynx 2U Elwood Sun Fire X4275 Codename: Lynx 2U Hyde Sun Fire X4440 Codename: Tucana Sun Fire X4450 Codename: Tucani Oracle Exadata V2 Codename: Quicksilver

Notes

1. Power Supply Efficiency affects the current draw in AC Watts from the branch circuit. As efficiency increases, the current draw in AC Watts decreases.
2. To calculate maximum theoretical current draw in AC Watts, multiply the maximum power supply output in DC Watts by the reciprocal of the power supply efficiency.
3. Theoretical values are typically higher than published values which are based on measured outputs under controlled test conditions.
