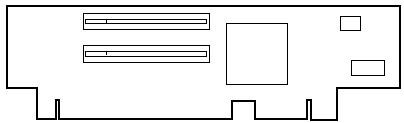

2-Slot x8/x8 PCI Express Riser

<a href="../../Systems/SupportHeaders/IO_SunFireX4250_PCI_Expr_Riser.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-4112 540-7692

x8/x8 PCI Express Riser PCI Express Riser FRU
371-7692 + Bracket

Sun Fire X4250 Codename: Doradi 2U

Notes

Three x8/x8 PCI Express Risers are installed in Slot 0, Slot 1, and Slot 2.
Slot 0 and Slot 1 PCI Express Channels are electrically eight lanes wide.
Slot 2 PCI Express Channel is electrically four lanes wide.

References

Sun Fire X4250 Server Documentation.
