8-Port 3Gbps Serial Attached SCSI HBA

Options SG-PCIE8SAS-Z / SG-XPCIE8SAS-I-Z

371-2253	371-3255	7064052
LSI SAS3081E-S x8 PCI Express not supported on: SF X4150	LSI SAS3081E-S x8 PCI Express L3-01139-03C B2 Silicone	LSI SAS3081E-S x8 PCI Express L3-01139-04A B2 Silicone

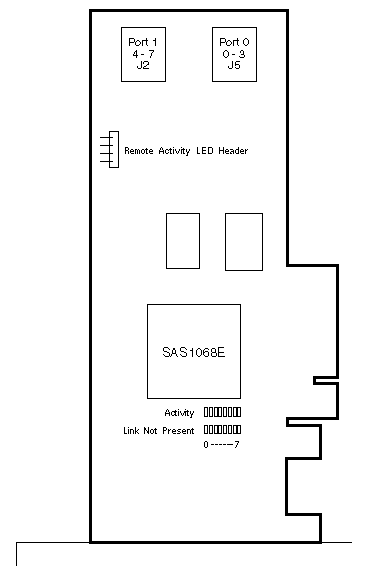

Additional Information & Views

Notes

1. The minimum Solaris operating system is Solaris 10 6/06 x64.
2. Install the SAS3081E in Ultra 40 M2 Slot PCI-E0.
3. Connect the Red SAS cable to Port 0 and the Ultra 40 M2 Lower Disk Backplane.
4. Connect the Orange SAS cable to Port 1 and the Ultra 40 M2 Upper Disk Backplane.
5. Option SG-PCIE8SAS-Z includes SAS Cable Kit 371-2349.
6. Cable Kit 371-2349 includes an LED cable and 250 mm and 400 mm SAS Cables.
7. Option SG-PCIE8SAS-Z does not include documentation.
8. The SAS3081E supports SAS and SATA.
9. The 371-3255-03 includes Solid State Drive BIOS and firmware support. (WO_40963)
10. The 371-2253 is not compatible with Sun Fire X4150/4250/X4450.
11. The 371-2253 is not compatible with Netra X4250/X4450.

References

1. Sun StorageTek PCI Express SAS 8-Channel Internal HBA Installation Guide
