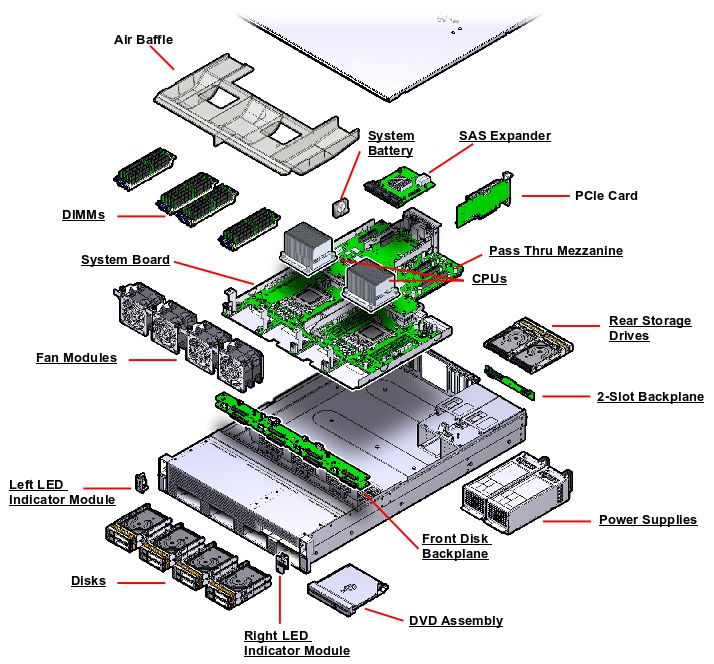

Sun Server X3-2L / Sun Fire X4270 M3 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
150-3993
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
n/a
7020776 [F]
CPU Heatsink
n/a
n/a
7026168
CPU Installation/Removal Tool
n/a
n/a
7026878
[F]
2.9GHz Intel 8-core Xeon E5-2690, 135W
n/a
n/a
7026881
[F]
2.2GHz Intel 8-core Xeon E5-2660, 95W
n/a
n/a
7026882
[F]
2.5GHz Intel 6-core Xeon E5-2640, 95W
n/a
n/a
7026883
[F]
2.4GHz Intel 4-Core Xeon E5-2609, 80W
n/a
NOTE: CPU Installation/Removal Tool ships with each CPU FRU
Cables
Option #
Manufacturing
Description
Previous
7102869 Buy
7039990 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 10M
n/a
7102870 Buy
7039999 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 20M
n/a
7102871 Buy
7040001 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 50M
n/a
X2121A-1M-N Buy
530-4444 [C]
10Gbps QSFP to QSFP Cable, 1m
n/a
X2121A-2M Buy
530-4567 [C]
10Gbps QSFP to QSFP Cable, 2m
n/a
X2121A-3M-N Buy
530-4445 [C]
10Gbps QSFP to QSFP Cable, 3m
n/a
X2121A-5M-N Buy
530-4446 [C]
10Gbps QSFP to QSFP Cable, 5m
n/a
X2130A-1M-N Buy
530-4441 [C]
10Gbps SFP+ TwinX Cable, 1m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
n/a
530-4037
2-Slot 10-Pin Disk Backplane Power Cable
n/a
n/a
7014226 [C]
Interlock Cable, 125mm
n/a
n/a
7014930
Rear Disk Data Cable, SATA to 90° SATA, 400mm
n/a
n/a
7014931
Rear Disk Data Cable, SATA to 90° SATA, 320mm
n/a
n/a
7015654 1
Disk Data Cable, SFF-8087 to iPass+ HD, 203mm
n/a
n/a
7047255 [F]
8-Slot Backplane Cable Kit
n/a
n/a
Disk Data Cable, SFF-8087 to SFF-8643, 650mm n/a
Dual Backplane Power Cable 7014920
n/a
n/a
7047257 [F]
12-Slot Backplane Cable Kit
n/a
n/a
4-Slot Disk Backplane Power Cable n/a
Disk Data Cable, iPass+ HD to iPass+ HD, 600mm n/a
Dual Backplane Power Cable 7014920
n/a
n/a
7047258 [F]
24-Slot Backplane Cable Kit
n/a
n/a
n/a
Disk Data Cable, SFF-8087 to SFF-8643, 620mm n/a
Disk Data Cable, SFF-8087 to iPass+ HD, 740 mm n/a
Disk Data Cable, SFF-8087 to iPass+ HD, 711mm n/a
n/a
1 FRU|CRU part 7014391 "SAS Expander Assembly" includes quantity 1 7015654 "Disk Data Cable".
Chassis
Option #
Manufacturing
Description
Previous
n/a
7310026
Left Ear Assembly
n/a
Communication
Option #
Manufacturing
Description
Previous
X4242A
[S]
7092767
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
375-3696
[C]
n/a
375-3696
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
350-1817
12-Slot 3.5" Disk Cage
n/a
n/a
n/a
n/a
n/a
7014619
2.5" Lightpipe Assembly
n/a
n/a
7039835
8-Slot 2.5" Disk Cage Assembly
n/a
n/a
n/a
n/a
Dual Backplane Power Cable n/a
n/a
Disk Backplane Right LED Indicator Module n/a
n/a
Front LED Indicator Module Cable n/a
4-Slot 2.5" Disk Backplane Assembly n/a
4-Slot 3.5" Disk Backplane n/a
7014619
Disk Backplane Left LED Indicator Module 7017223 [F]
n/a
n/a
7039836
24-Slot Disk Cage Assembly
n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
SAS Expander w/o Heatsink n/a
n/a
n/a
n/a
24-Slot 2.5" Disk Backplane Assembly n/a
n/a
24-Slot 2.5" Disk Backplane n/a
Disk Backplane Right LED Indicator Module n/a
n/a
Front LED Indicator Module Cable n/a
Disk Backplane Left LED Indicator Module 7017223 [F]
n/a
n/a
n/a
7045664
12-Slot 3.5" Disk Cage Assembly
n/a
n/a
n/a
n/a
n/a
n/a
SAS Expander w/o Heatsink n/a
n/a
n/a
4-Slot Disk Backplane Power Cable n/a
n/a
Disk Backplane Right LED Indicator Module n/a
n/a
4-Slot 3.5" Disk Backplane Assembly n/a
n/a
4-Slot 3.5" Disk Backplane n/a
7014384
Disk Backplane Left LED Indicator Module 7017223 [F]
n/a
7047768 +
7045721
n/a
541-4672
n/a
n/a
Dual Backplane Power Cable 7014920
n/a
n/a
7045721
12-Slot 3.5" Disk Cage
350-1817
n/a
n/a
n/a
n/a
7047768
12-Slot 3.5" Disk Cage
7045721 +
350-1817
n/a
n/a
n/a
n/a
7052898 [F]
Left Ear Kit
n/a
n/a
Disk Backplane Left LED Indicator Module 7017223 [F]
n/a
n/a
7052899 [F]
Right Ear Kit
n/a
Disk Backplane Right LED Indicator Module n/a
n/a
Front LED Indicator Module Cable n/a
n/a
7310865
XATO 12-Slot 3.5" Disk Cage
n/a
2-Slot 10-Pin Disk Backplane Power Cable n/a
2-Slot Rear Disk Cage Assembly n/a
n/a
n/a
Rear Disk Data Cable, SATA to 90° SATA, 400mm n/a
Rear Disk Data Cable, SATA to 90° SATA, 320mm n/a
Disk Data Cable, iPass+ HD to iPass+ HD, 600mm n/a
Disk Data Cable, SFF-8087 to iPass+ HD, 203mm n/a
12-Slot Backplane Cable Kit n/a
n/a
4-Slot Disk Backplane Power Cable n/a
Disk Data Cable, iPass+ HD to iPass+ HD, 600mm n/a
Dual Backplane Power Cable 7014920
n/a
12-Slot 3.5" Disk Cage Assembly n/a
n/a
n/a
n/a
Disk Backplane Right LED Indicator Module n/a
n/a
Front LED Indicator Module Cable n/a
Disk Backplane Left LED Indicator Module 7017223 [F]
n/a
n/a
n/a
n/a
n/a
4-Slot 3.5" Disk Backplane Assembly n/a
n/a
n/a
2 FRU|CRU part 7014391 includes a quantity of 1 7015654 "Disk Data Cable".3 FRU|CRU part 7014391 includes a quantity of 1 7015654 "Disk Data Cable".4 Packaged FRU 7019623 includes 7023515 plus cables 7014930, 7014931, and 530-4037.5 FRU|CRU part 7014391 "SAS Expander Assembly" includes quantity 1 7015654 "Disk Data Cable".
Disks
Option #
Manufacturing
Description
Previous
7101423
[S]
7017183 [C]
100GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk) n/a
n/a
7101469
[S]
7017184 [C]
300GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk) n/a
n/a
7102760
[S]
7010036 [C]
3TB - 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB - 7200 RPM - SAS Disk) n/a
Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB - 7200 RPM - SAS Disk) n/a
Coral 3.5" Disk Drive Bracket n/a
XRA-SS1CR600G15K-N
[S]
542-0166 [C]
600GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST3600057SS [ST360057SSUN600G] n/a
Coral 3.5" Disk Drive Bracket n/a
542-0428 [C]
600GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST3600057SS [ST360057SSUN600G] n/a
Hitachi HUS156060VLS600 [HUS1560SCSUN600G] n/a
Coral 3.5" Disk Drive Bracket n/a
XRA-SS2CF-600G10K2
[S]
542-0287 [C] Buy
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;
n/a
Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk) n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
XRB-SS2CF-300G10K2
[S]
542-0388 [C] Buy
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk) n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7048474
[C]
+
7100481 Buy
7070202
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7014747
[C]
7100488 Buy
7070006
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
7014776
[C]
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
375-3617
[C]
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
X5562A-Z Buy
135-1205
[C]
10Gb/Sec Long Wave SFP+ Transceiver
n/a
7105381
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
7105382
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
SG-XPCIEFCOE2-Q-SR
[S]
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
SG-XPCIEFCOE2-Q-TA
[S]
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
X2124A
[S]
7326504
[C]
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
135-1204
[C]
n/a
135-1204
[C]
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a
n/a
375-3617
[C]
Dual 10-Gigabit Ethernet SFP+ LP
n/a
n/a
375-3681
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
n/a
375-3682
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
7014741
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
n/a
7014747
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a
n/a
7014776
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
n/a
7048474
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7014741
[C]
Fan
Option #
Manufacturing
Description
Previous
n/a
7045042 [C]
Dual Counter Rotating Fan Module
n/a
80×80mm Counter Rotating Fan n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
SG-XPCIE2FC-EM8-N
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF8-N
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
Memory
Option #
Manufacturing
Description
Previous
7100790
[S]
7020486
[C]
8GB DDR3-1600 DIMM, 1.35V
n/a
7100792
[S]
7038750
[C]
32GB DDR3-1066/DDR3-1333 DIMM, 1.35V
n/a
7100794
[S]
7018701
[C]
16GB DDR3-1600 DIMM, 1.35V
n/a
n/a
7038488
[C]
4GB USB 2.0 Flash Drive
n/a
Power
Option #
Manufacturing
Description
Previous
n/a
7044130
[C]
Type A258 1000 Watt AC Input Power Supply
n/a
Rack
Option #
Manufacturing
Description
Previous
n/a
350-1287 [C]
1U/2U Cable Management Arm
n/a
n/a
350-1719 [C]
1U/2U Snap-In Slide Rail Rackmount Kit
n/a
n/a
7042273 [C]
1U/2U Cable Management Arm (Snap-in)
350-1287 [C]
Removable Media
Option #
Manufacturing
Description
Previous
n/a
541-4688 [C]
Slot-Load DVD Assembly
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
7081551
[C]
Tray-Load DVD Assembly
n/a
n/a
8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer n/a
n/a
SCSI
Option #
Manufacturing
Description
Previous
7104482
[S]
7070787
[C]
Flash Accelerator F40 400GB Solid State Memory
7026993
[C]
7105387
[S]
8-Port 6Gbps SAS-2 PCI Express HBA
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
SGX-SAS6-EXT-Z
[S]
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
SGX-SAS6-INT-Z
[S]
7047852
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3640
[C]
SGX-SAS6-R-INT-Z
[S]
7047503
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
375-3701
[C]
7050794
[C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
371-4982 [C]
n/a
371-4982 [C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
n/a
n/a
375-3640
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3641
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3701
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
n/a
n/a
7014391 10
[C]
SAS Expander Assembly
n/a
n/a
SAS Expander w/o Heatsink n/a
n/a
n/a
n/a
7026993
[C]
Flash Accelerator F40 400GB Solid State Memory
n/a
10 FRU|CRU part 7014391 includes a quantity of 1 7015654 "Disk Data Cable".
System Board
Option #
Manufacturing
Description
Previous
n/a
7039830
[F]
X3-2L System Board Assembly
n/a
n/a
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
7049382
[F]
X3-2L System Board Assembly
7039830
[F]
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
7027349
NOTE: CPU Installation/Removal Tool ships with each System Board FRU
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
-
240-4674
PCI Express Filler Panel
NS
350-1288
DIMM Slot Filler
NS
541-3066
3.5" Disk Filler Panel
NS
541-4666
X4270 M3 Base Assembly
NS
NS
NS
NS
NS
7012293
Fan Door for 12-Slot 2.5" Disk Configuration
NS
NS
7014216
Rear Disk Filler Panel
NS
7015920
Fan Door for 8-Slot 2.5" Disk Configuration
NS
7019246
Air Baffle
NS
7051126 15
Sun Server X3-2L / X4270 M3 Base Assembly
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
11 7068666 supercedes 350-1811.12 7068328 supercedes 7014160.13 7068666 supercedes 350-1811.15 7051126 supercedes 541-4666.
