Sun Fire X4270 Server - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 150-3993 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
X5861A-2U [S] 371-4298 [F] 2.93GHz Intel Quad-Core Xeon X5570, 8MB, 95W n/a
541-3310 [F] Xeon Heatsink w/Grease n/a
  • 240-6751
  • Spring Screw
 n/a
  • 310-0211
  • Pre-greased Heatsink
 n/a
X5862A-2U [S] 371-4299 [F] 2.80GHz Intel Quad-Core Xeon X5560, 8MB, 95W n/a
541-3310 [F] Xeon Heatsink w/Grease n/a
  • 240-6751
  • Spring Screw
 n/a
  • 310-0211
  • Pre-greased Heatsink
 n/a
X5863A-2U [S] 371-4300 [F] 2.53GHz Intel Quad-Core Xeon E5540, 8MB, 80W n/a
541-3310 [F] Xeon Heatsink w/Grease n/a
  • 240-6751
  • Spring Screw
 n/a
  • 310-0211
  • Pre-greased Heatsink
 n/a
X5864A-2U [S] 371-4302 [F] 2.26GHz Intel Quad-Core Xeon L5520, 8MB, 60W n/a
541-3310 [F] Xeon Heatsink w/Grease n/a
  • 240-6751
  • Spring Screw
 n/a
  • 310-0211
  • Pre-greased Heatsink
 n/a
X5865A-2U [S] 371-4477 [F] 2.26GHz Intel Quad-Core Xeon E5520, 8MB, 80W n/a
541-3310 [F] Xeon Heatsink w/Grease n/a
  • 240-6751
  • Spring Screw
 n/a
  • 310-0211
  • Pre-greased Heatsink
 n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
X311L [S] Localized Power Cord Kit - North America/Asia
180-1097 [C] Buy IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black n/a
X312E [S] Localized Power Code Kit - China
180-1982 [C] IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M n/a
X312F [S] Localized Power Cord Kit - Argentina
180-1999 [C] IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black n/a
X312G [S] Localized Power Cord Kit - Korea
180-1662 [C] Buy IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black n/a
X312L [S] Localized Power Cord Kit - Continental Europe
180-1993 [C] IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black n/a
X314L [S] Localized Power Cord Kit - Swiss
7049124 [C] IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black 180-1994 [C]
X317L [S] Localized Power Cord Kit - U.K.
180-1997 [C] Buy IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black n/a
X332A [S] Localized Power Cord Kit - Taiwan
180-2121 [C] IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black n/a
X383L [S] Localized Power Cord Kit - Danish
180-1995 [C] IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black n/a
X384L [S] Localized Power Cord Kit - Italian
180-1996 [C] IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black n/a
X386L [S] Localized Power Cord Kit - Australian
180-1998 [C] IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black n/a
n/a 180-1994 [C] IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
X1236A-Z [S] 375-3382 [C] Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile n/a
X4217A-Z [S] 375-3549 [C] Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile n/a
X4237A [S] 375-3606 [C] Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express n/a
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 511-1257 [F] 16-Slot Disk Backplane, SATA DVD n/a
n/a 542-0355 [F] Backplane Retainer Clip Kit n/a
  • 330-5301
  • Grey 2U Backplane Retainer Clip
 n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
XRA-SS2CF-146G10K [S] 540-7355 [C] 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Fujitsu MBB2147RC [MBB2147RCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-SS2CF-146G10K2 [S] 542-0217 [C] 146GB - 10000 RPM SAS2 SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9146803SS [ST914603SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC103014CSS600 [H103014SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-SS2CF-73G15K [S] 540-7361 [C] 73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks n/a
  • Seagate ST973451SS [ST973451SSUN72G]
    (73GB - 15000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-ST2CF-32G2SSD [S] 540-7841 [C] 32GB Solid State SATA Drive Assembly n/a
  • Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-ST2CF-500G7K [S] 542-0184 [C] 500GB - 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9500530NS [ST95000NSSUN500G]
    (500GB - 7200 RPM - SATA Disk)
 n/a
  • Marlin Bracket
 n/a
XRB-SS2CF-146G10K [S] 540-7868 [C] 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Seagate ST9146803SS [ST914603SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC103014CSS600 [H103014SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 540-7869 [C] 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9300603SS [ST930003SSUN300G]
    (300GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC103030CSS600 [H103030SCSUN300G]
    (300GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
X1109A-Z Buy 7051223 [C] Dual 10-Gigabit PCI Express Ethernet SFP+ LP 375-3617 [C]
SG-XPCIEFCOE2-Q-SR [S] 7053422 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR 375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S] 7053423 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach 375-3682 [C]
X1106A-Z [S] 375-3585 [C] Intel PRO/10GbE-SR x8 PCI Express n/a
X1107A-Z [S] 375-3586 [C] Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket n/a
X4446A-Z [S] 7054739 [C] PCI Express Quad Gigabit Ethernet UTP 375-3481 [C]
X7280A-2 [S] 371-0905 [C] PCI Express Dual Gigabit Ethernet UTP n/a
X7281A-2 [S] 7056733 [C] PCI Express Dual Gigabit Ethernet MMF 371-0904 [C]
n/a 371-0904 [C] PCI Express Dual Gigabit Ethernet MMF n/a
n/a 375-3481 [C] PCI Express Quad Gigabit Ethernet UTP n/a
n/a 375-3617 [C] Dual 10-Gigabit Ethernet SFP+ LP n/a
n/a 375-3681 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR n/a
n/a 375-3682 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-2211 [F] Fan Power Board n/a
  • 330-4463
  • Top Bracket
n/a
  • 330-4464
  • Bottom Bracket
 n/a
  • 501-7695
  • Fan Board
 n/a
n/a 541-3290 [C] CPU Dual Fan Assembly w/ Metal Fingerguards n/a
  • 310-0210
  • Japan Servo Fan, 60×38mm, 2U
n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE1FC-EM4 [S] 375-3396 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
7053428 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-EM8-Z [S] 371-4295 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
7053433 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-QF4 [S] 375-3355 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-QF8-Z [S] 371-4324 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE2FC-EM4 [S] 375-3397 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
7053427 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FC-EM8-Z [S] 7053434 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex 371-4306 [C]
SG-XPCIE2FC-QF4 [S] 375-3356 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FC-QF8-Z [S] 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
n/a 371-4306 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 341-4139 PCI Filler Panel n/a
n/a 541-2884 [C] x8/x8 PCI Express Riser Assembly n/a
  • x8/x8 PCI Express Riser
 n/a
  • 541-2531
  • Bracket
 n/a
n/a 541-3356 [C] x8/x8 Switched PCI Express Riser Assembly n/a
  • x8/x8 Switched PCI Express Riser
 n/a
  • 541-2531
  • Bracket
 n/a
n/a 7049269 [C] x8/x8 PCI Express Riser Assembly 541-2884 [C]
  • 541-2531
  • Bracket
 n/a
  • 7049268
  • x8/x8 PCI Express Riser
 501-7964
n/a 7049272 [C] x8/x8 Switched PCI Express Riser Assembly 541-3356 [C]
  • 541-2531
  • Bracket
 n/a
  • 7049271
  • x8/x8 Switched PCI Express Riser
 n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
X4680A [S] 375-3590 [C] 16GB Compact Flash n/a
X5866A [S] 371-4282 [C] 2GB Registered DDR3-1066 / DDR3-1333 DIMM n/a
X5867A [S] 371-4283 [C] 4GB Registered DDR3-1066 / DDR3-1333 DIMM n/a
X5868A [S] 371-4285 [C] 8GB Registered DDR3-1066 DIMM n/a
X5869A [S] 371-4287 [C] 2GB Registered DDR3-1333 DIMM n/a
X5870A [S] 371-4288 [C] 4GB Registered DDR3-1333 DIMM n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
X6328A [S] 300-1897 [C] Type A217 1050 Watt AC Input Power Supply n/a
n/a 541-2073 [F] Power Distribution Board/Bus Bar Assembly n/a
  • 341-3166
  • Bus Bar Left
 n/a
  • 341-3167
  • Bus Bar Right
 n/a
  • 371-2484
  • PDB Signal Cable
 n/a
  • Horizontal Power Distribution Board
 n/a
  • Vertical Power Distribution Board
 n/a
n/a 541-4370 1 [F] Power Distribution Board/Bus Bar Assembly n/a
  • 341-3166
  • Bus Bar Left
 n/a
  • 341-3167
  • Bus Bar Right
 n/a
  • Horizontal Power Distribution Board
 n/a
  • 371-2484
  • PDB Signal Cable
 n/a
  • Vertical Power Distribution Board
 n/a
1 PDB Assembly 541-4370 only supports a SATA DVD. A PATA DVD is not supported.
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
X6324A [S] 371-2742 [C] 1U/2U Cable Management Arm n/a
X6325A [S] 371-2740 [C] 1U/2U Snap-In Slide Rail Rackmount Kit, 730mm n/a
X6326A [S] 371-2741 [C] 1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
X8325A [S] 541-3493 [C] Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly n/a
  • 330-5056
  • DVD Tray
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 n/a
  • 8x SATA DVD Writer/24x CD-Writer
 n/a
  • 8x Slot-Load SATA DVD-Writer/24x CD-Writer
 390-0443
  • 501-7698
  • USB Board
 n/a
n/a 541-2732 [C] USB Assembly n/a
  • 330-4418
  • DVD Tray
 n/a
  • 341-4072
  • DVD Filler Panel
 n/a
  • 501-7698
  • USB Board
 n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE2SCSIU320Z [S] 7050790 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter 375-3357 [C]
SG-XPCIE8SAS-E-Z [S] 7050793 [C] PCI Express 8-Port Host Adapter 375-3487 [C]
SG-XPCIE8SAS-I-Z [S] 7064052 [C] PCI Express 8-Port SAS Controller 371-3255 [C]
SGX-SAS6-EXT-Z [S] 7047853 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) 375-3641 [C]
SGXPCIESAS-R-EXT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3537 [C] 8-Port SAS RAID External HBA n/a
SGXPCIESAS-R-INT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3536 2 [C] 8-Port SAS Adaptec RAID HBA n/a
n/a 371-3255 [C] PCI Express 8-Port SAS Controller n/a
n/a 375-3357 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter n/a
n/a 375-3487 [C] PCI Express 8-Port Host Adapter n/a
n/a 375-3641 [C] 8-Port 6Gbps SAS-2 PCI Express HBA (LSI) n/a
2 Reference Alert article
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-2542 [F] System Board Assembly n/a
  • System Board
 n/a
    • 3V Lithium Coin Cell Battery
n/a
  • 541-2543
  • System Board Tray
 n/a

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

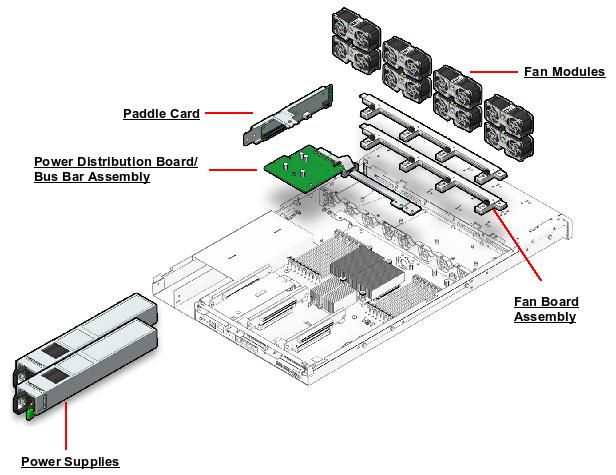

Sun Fire X4270 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
NS 341-3569 2U Power Supply Unit Filler Panel
NS 350-1288 DIMM Slot Filler
NS 371-2484 PDB Signal Cable
NS 530-3892 4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm
NS 530-3927 [F] PDB to System Board Ribbon Cable
NS 530-4228 [C] SFF8087 to SFF8087 Mini-SAS Cable, 690mm
NS 599-3475 X4270-S1-AA Base Assembly (-02)
NS
  • 330-4687
  • Clear Plastic Air Duct
NS
  • 341-3626
  • Perforated Filler Panel above HDD9
  • 341-4139
  • PCI Filler Panel
NS
  • 541-3441
  • Enclosure Assembly (-01)
NS
    • 540-7837
    • Chassis Subassembly (-01)
NS
      • 541-2212
      • Disk Cage
NS
        • 541-2863
        • Left Ear 2U
NS
        • 541-2864
        • Right Ear 2U
NS
      • 541-3239
      • Perforated Top Cover
NS
        • 150-4065
        • Interlock Switch Magnet
NS
      • 541-3373
      • Base Chassis Assembly
NS
    • 541-2075 [F]
    • Bus Bar Set
NS
      • 341-3096
      • Long Red Bus Bar
NS
      • 341-3104
      • Short Blue Bus Bar
NS
    • 541-2738
    • PCI Cross Beam
NS
      • 341-3575
      • PCI Cross Beam
NS
      • 341-3990
      • End Cap
NS
    • 541-3513 [C]
    • Connector Board Assembly, SATA DVD
NS
      • 341-3097
      • Bracket
NS
      • Connector Board (Paddle Card), SATA DVD
NS
      • 530-3510
      • Interlock Switch Cable
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
