Options 4650A / 4651A / 4652A / 4653A / 4654A
Options 5866A / 5867A / 5868A / 5869A / 5870A

371-4282	371-4283	371-4285

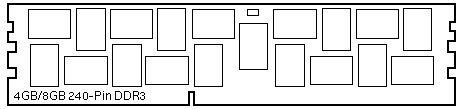

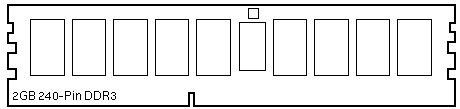

DDR3-1066/PC3-8500 DDR3-1333/PC3-10600 1-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 2GB Registered DIMM 2GB Option 4650A/5866A	DDR3-1066/PC3-8500 DDR3-1333/PC310600 2-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 4GB Registered DIMM 4GB Option 4651A/5867A	DDR3-1066/PC3-8500 2-Rank/2Gbit SDRAM 1.5V VDD/VDDQ 8GB Registered DIMM 8GB Option 4652A/5868A

371-4287	371-4288
DDR3-1333/PC3-10600 1-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 2GB Registered DIMM 2GB Option 4653A/5869A	DDR3-1333/PC3-10600 2-Rank/1Gbit SDRAM 1.5V VDD/VDDQ 4GB Registered DIMM 4GB Option 4654A/5870A

Sun Blade X6270 Codename: Virgo Sun Fire X4170 Codename: Lynx 1U Sun Fire X4270 Codename: Lynx 2U Elwood Sun Fire X4275 Codename: Lynx 2U Hyde Netra X4270 Codename: Aurigi-DC Oracle Exadata V2 Codename: Quicksilver

Sun Blade X4170/X4270/X4275 and X6270 Notes

1. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
2. Install memory filler panel 350-1288 in all unused slots.
3. Install the first three DIMMs in CPU0 and CPU1 slots D8, D5, and D2.
4. Install the second three DIMMs in CPU0 and CPU1 slots D7, D4, and D1.
5. Install the last three DIMMs in CPU0 and CPU1 slots D6, D3, and D0.
6. Use of the same DIMM size and speed is recommended for maximum performance.

References

1. Sun Blade X6270 Server Module Documentation.
2. Sun Fire X4170 Server Documentation.
3. Sun Fire X4270 Server Documentation.
4. Sun Fire X4275 Server Documentation.
