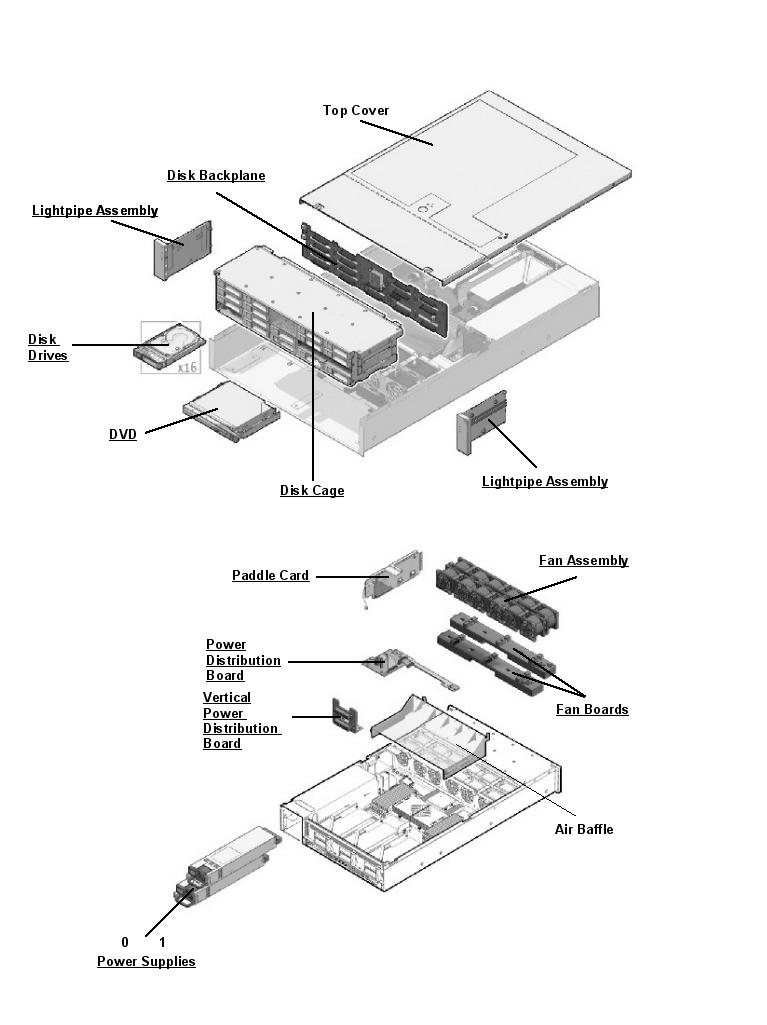

Sun Fire X4240 - Full Components List

Batteries CPU Module Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Rack Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-4277 [C]	3V Lithium coin battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
6335A [S]	Single Processor HyperTransport Terminator
	310-0128	Opteron Heatsink	n/a
	371-2481	HyperTransport Termination Adapter	n/a
X4285A [S]	540-7602 [F]	HyperTransport Bridge Card & Risers for Quad Core CPU	n/a
	270-7916	Hyper-Transport Bridge Risers (×2)	n/a
	501-7915	Hyper-Transport Bridge Card	n/a
X5352A [S]	2.9GHz Quad-Core AMD Opteron 2389
	310-0128	Opteron Heatsink	n/a
	371-4641 [F]	2.9 GHz CPU, Opteron 2389 Quad Core, C2 Stepping, 75W	n/a
X5380A [S]	2.1GHz 6-Core AMD Opteron 2425 HE
	310-0128	Opteron Heatsink	n/a
	371-4678 [F]	2.1GHz CPU, Opteron 2425 HE 6-Core, D0 Stepping, 55W	n/a
X5381A [S]	2.4GHz 6-Core AMD Opteron 2431
	310-0128	Opteron Heatsink	n/a
	371-4680 [F]	2.4 GHz CPU, Opteron 2431 6-Core, D0 Stepping, 75W	n/a
X5382A [S]	2.6GHz 6-Core AMD Opteron 2435
	310-0128	Opteron Heatsink	n/a
	371-4681 [F]	2.6 GHz CPU, Opteron 2435 6-Core, D0 Stepping, 75W	n/a
X5383A [S]	2.8GHz 6-Core AMD Opteron 2439 SE
	310-0128	Opteron Heatsink	n/a
	371-4682 [F]	2.8GHz CPU, Opteron 2439 SE, 6-Core, D0 Stepping, 105W	n/a
X5392A [S]	2.2GHz 6-Core AMD Opteron 2427
	310-0128	Opteron Heatsink	n/a
	371-4679 [F]	2.2 GHz CPU, Opteron 2427 6-Core, D0 Stepping, 75W	n/a
X6300A [S]	2.6GHz Dual-Core AMD Opteron 2218HE
	310-0128	Opteron Heatsink	n/a
	371-2684 [F]	2.6GHz AMD Dual Core Opteron 2218HE, F3 Stepping, 68W	n/a
X6301A [S]	3.0GHz Dual-Core AMD Opteron 2222
	310-0128	Opteron Heatsink	n/a
	371-2502 [F]	3.0 GHz CPU, Opteron 2222 Dual Core, F3 Stepping, 95W	n/a
X6302A [S]	3.2GHz Dual-Core AMD Opteron 2224 SE
	310-0180	Opteron Heatsink	n/a
	371-3487 [F]	3.2 GHz CPU, Opteron 2224SE Dual Core, F3 Stepping, 120W	n/a
X6305A [S]	2.3GHz Quad-Core AMD Opteron 2356
	310-0128	Opteron Heatsink	n/a
	371-4042 [F]	2.3 GHz CPU, Opteron 2356 Quad Core, B3 Stepping, 75W	n/a
X6306A 1 [S]	2.5GHz Quad-Core AMD Opteron 2360SE, 105W
	310-0180	Opteron Heatsink	n/a
	371-4101 [F]	2.5 GHz CPU, Opteron 2360SE Quad Core, B3 Stepping, 105W	n/a
X6307A [S]	1.9GHz Quad-Core AMD Opteron 2347HE
	310-0128	Opteron Heatsink	n/a
	371-4095 [F]	1.9 GHz CPU, Opteron 2347HE Quad Core, B3 Stepping, 55W	n/a
X8252A [S]	2.3 GHz CPU, Opteron 2376HE Quad Core, 55W
	310-0128	Opteron Heatsink	n/a
	371-4502 [F]	2.3 GHz CPU, Opteron 2376 HE Quad Core, C2 Stepping, 55W	n/a
X8253A [S]	2.5GHz Quad-Core AMD Opteron 2380
	310-0128	Opteron Heatsink	n/a
	371-4432 [F]	2.5 GHz CPU, Opteron 2380 Quad Core, C2 Stepping, 75W	n/a
X8254A [S]	2.7GHz AMD Quad Core Opteron 2384
	310-0128	Opteron Heatsink	n/a
	371-4438 [F]	2.7 GHz CPU, Opteron 2384 Quad Core, C2 Stepping, 75W	n/a

1 Opteron 2360SE Option X6306A requires Fan 541-3290 and Perforated Top Cover 541-3355. Fan and Top Cover upgrades are not available. NOTE: Six-Core Opteron requires Motherboard 540-7952 and X4240 Server Software 3.x.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
4282A [S]	596-7337	Internal SAS Cable Option	n/a
	530-3894	4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 560mm	n/a
	530-3895	4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm	n/a
4283A [S]	596-7338	Internal SATA Cable Option	n/a
	530-3892	4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm	n/a
	530-3894	4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 560mm	n/a
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X332A [S]	Localized Power Cord Kit - Taiwan
	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1236A-Z [S]	375-3382 [C]	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X4217A-Z [S]	375-3549 [C]	Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X6000A 2 [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

2 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7760 [F]	16-Slot Disk Backplane, PATA DVD	n/a
n/a	542-0355 [F]	Backplane Retainer Clip Kit	n/a
	330-5301	Grey 2U Backplane Retainer Clip	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2CF-146G10K [S]	540-7355 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS2CF-73G10K [S]	540-7354 [C]	73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-SS2CF-73G15K [S]	540-7361 [C]	73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0382	Seagate ST973451SS [ST973451SSUN72G] (73GB - 15000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRA-ST2CF-32G2SSD [S]	540-7841 [C]	32GB Solid State SATA Drive Assembly	n/a
	371-4196	Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
XRB-SS2CF-146G10K [S]	540-7868 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
n/a	540-7869 [C]	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0449	Seagate ST9300603SS [ST930003SSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIEFCOE2-Q-SR [S]	7053422 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S]	7053423 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	375-3682 [C]
X1027A-Z [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X1106A-Z [S]	375-3585 [C]	Intel PRO/10GbE-SR x8 PCI Express	n/a
X1107A-Z [S]	375-3586 [C]	Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket	n/a
X4446A-Z [S]	7054739 [C]	PCI Express Quad Gigabit Ethernet UTP	375-3481 [C]
X5558A [S]	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
X5560A-Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
n/a	375-3481 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
n/a	375-3681 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR	n/a
n/a	375-3682 [C]	Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2211 [F]	Fan Power Board	n/a
	330-4463	Top Bracket	n/a
	330-4464	Bottom Bracket	n/a
	501-7695	Fan Board	n/a
n/a	541-2940 [C]	CPU Dual Fan Assembly w/ Metal Fingerguards	n/a
	310-0119	Delta Fan, 60×38mm, 2U	n/a
n/a	541-3290 [C]	CPU Dual Fan Assembly w/ Metal Fingerguards	n/a
	310-0210	Japan Servo Fan, 60×38mm, 2U	n/a

NOTE: Opteron 2360SE Option X6306A requires Fan 541-3290. Fan 541-3290 production began in August 2008 in Chassis 540-7788.

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM8-Z [S]	371-4295 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053433 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF8-Z [S]	371-4324 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-2109 [C]	x8/x8 XAUI Riser Card Assembly	n/a
	341-4139	PCI Filler Panel	n/a
	501-7719	x8/x8 XAUI Riser Card	n/a
	541-2736	Riser Bracket	n/a
n/a	541-2299 [C]	x16/x4 Riser	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X4287A [S]	F541-3419 [C]	16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs) [SKU]	n/a
	371-4387	8GB DDR2-667 dual-rank Memory DIMM	n/a
X6320A [S]	F540-7598 [C]	2GB (2 × 1GB) Memory [SKU]	n/a
	371-3845	1 GB Registered ECC DDR2-667 DIMM	n/a
X6321A [S]	F540-7599 [C]	4GB (2 × 2GB) Memory [SKU]	n/a
	371-3846	2GB Registered ECC DDR2-667 DIMM	n/a
X6321A-C [S]	F540-7829 [C]	4GB (2 × 2GB) Memory [SKU]	n/a
	371-4160	2GB Registered ECC Single Rank DDR2-667 DIMM	n/a
X6322A [S]	F540-7600 [C]	8GB (2 × 4GB) Memory [SKU]	n/a
	371-3847	4GB Registered ECC DDR2-667 DIMM	n/a
n/a	371-3651	Memory Slot Filler, EBS93011010	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
X6328A [S]	300-1897 [C]	Type A217 1050 Watt AC Input Power Supply	n/a
n/a	541-2073 [F]	Power Distribution Board/Bus Bar Assembly	n/a
	341-3166	Bus Bar Left	n/a
	341-3167	Bus Bar Right	n/a
	371-2484	PDB Signal Cable	n/a
	501-7697	Horizontal Power Distribution Board	n/a
	501-7951	Vertical Power Distribution Board	n/a
n/a	541-4370 3 [F]	Power Distribution Board/Bus Bar Assembly	n/a
	341-3166	Bus Bar Left	n/a
	341-3167	Bus Bar Right	n/a
	371-2484	PDB Signal Cable	n/a
	501-7951	Vertical Power Distribution Board	n/a

3 PDB Assembly 541-4370 only supports a SATA DVD. A PATA DVD is not supported.

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X6324A [S]	371-2742 [C]	1U/2U Cable Management Arm	n/a
X6325A [S]	371-2740 [C]	1U/2U Snap-In Slide Rail Rackmount Kit, 730mm	n/a
X6326A [S]	371-2741 [C]	1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X6323A [S]	541-2110 [C]	PATA DVD-Writer/CD-Writer - USB Board Assembly	n/a
	330-4418	DVD Tray	n/a
	390-0337	8x PATA DVD-Writer/24x CD-Writer	n/a
	501-7698	USB Board	n/a
	541-2111	DVD Bezel	n/a
n/a	541-2732 [C]	USB Assembly	n/a
	330-4418	DVD Tray	n/a
	341-4072	DVD Filler Panel	n/a
	501-7698	USB Board	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SG-XPCIE8SAS-I-Z [S]	7064052 [C]	PCI Express 8-Port SAS Controller	371-3255 [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3537 [C]	8-Port SAS RAID External HBA	n/a
SGXPCIESAS-R-INT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3536 4 [C]	8-Port SAS Adaptec RAID HBA	n/a
n/a	371-3255 [C]	PCI Express 8-Port SAS Controller	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a

4 Reference Alert article
System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-7952 5 [F]	Motherboard	n/a
	150-4277 [C]	3V Lithium coin battery	n/a
n/a	541-2297 [F]	Motherboard	n/a
	150-4277 [C]	3V Lithium coin battery	n/a

5 Six-Core Opteron requires Motherboard 540-7952 and X4240 Server Software 3.x.

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	330-4433 6	Clear Plastic Air Duct
NS	341-3569	2U Power Supply Unit Filler Panel
NS	530-3927 [F]	PDB to System Board Ribbon Cable
NS	541-2629	2.5" Disk Drive Filler Panel
NS	541-2636 [F]	Lightpipe Assembly
NS	330-4421	Right Side Endcap Lightpipe
NS	541-2126	Left Side Endcap Lightpipe Assembly
NS	330-4419	Lightpipe Button
NS	330-4420	Lightpipe Holder
NS	330-4424	Power Button
NS	541-2956	Enclosure Subassembly
NS	150-4065	Interlock Switch Magnet
NS	541-2075 [F]	Bus Bar Set
NS	341-3096	Long Red Bus Bar
NS	341-3104	Short Blue Bus Bar
NS	541-2213 [F]	Connector Board Assembly, PATA DVD
NS	341-3097	Bracket
NS	501-7720	Connector Board (Paddle Card), PATA DVD
NS	530-3510	Interlock Switch Cable
NS	541-2628	Chassis Subassembly
NS	541-1988	Top Cover
NS	150-4065	Interlock Switch Magnet
NS	541-2212	Disk Cage
NS	541-2958 7	Chassis Subassembly
NS	541-3372	Perforated Enclosure Assembly
NS	540-7788 8	Chassis Subassembly
NS	541-2212	Disk Cage
NS	541-3355	Perforated Top Cover
NS	150-4065	Interlock Switch Magnet
NS	541-3373	Base Chassis Assembly
NS	541-2075 [F]	Bus Bar Set
NS	341-3096	Long Red Bus Bar
NS	341-3104	Short Blue Bus Bar
NS	541-2213 [F]	Connector Board Assembly, PATA DVD
NS	341-3097	Bracket
NS	501-7720	Connector Board (Paddle Card), PATA DVD
NS	530-3510	Interlock Switch Cable
NS	541-2738	PCI Cross Beam
NS	341-3990	End Cap
NS	541-3513 [F]	Connector Board Assembly, SATA DVD
NS	341-3097	Bracket
NS	511-1255	Connector Board (Paddle Card), SATA DVD
NS	530-3510	Interlock Switch Cable
NS	F540-7610 [C]	SAS/SATA Cable Kit [SKU]
NS	530-3892	4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm
NS	530-3894	4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 560mm
NS	530-3895	4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm

6 Airduct for 2-Processor Configuration. 7 Base Chassis Assembly, Separate Fan Fingerguards 8 Chassis 540-7788 production began in August 2008 with Opteron 2360SE.
