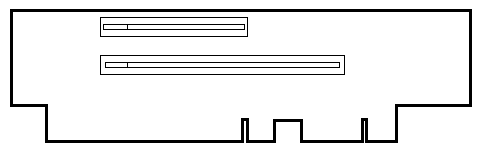

2-Slot x8/x16 PCI Express Riser

501-7624	541-2299
x8/x16 PCI Express Riser	PCI Express Riser FRU 501-7624 + Bracket 541-2531

Sun Fire X4240 Codename: Dorado 2U Sun Fire X4440 Codename: Tucana Sun Fire X4450 Codename: Tucani Storage 7110 Codename: Iwashi Storage 7410 Codename: Toro Storage 7410 SAS 2.0 Codename: Amber Road SAS2.0

Sun Fire X4240/X4440 Notes

1. Two x8 PCI Express/XAUI Risers are installed in Slot 0/3 and Slot 1/4.
2. One x8/x16 PCI Express Riser is installed in Slot 2/5.
3. Slot 0, 1, 3, and 4 PCI Express Channels are electrically eight lanes wide.
4. Slot 2 PCI Express Channel is electrically sixteen lanes wide.
5. Slot 5 PCI Express Channel is electrically four lanes wide.

Sun Fire X4450 Notes

1. Three x8/x16 PCI Express Risers are installed in Slot 0/3, Slot 1/4, and Slot 2/5.
2. Slot 0 and Slot 1 PCI Express Channels are electrically eight lanes wide.
3. Slot 3 and Slot 4 PCI Express Channels are electrically four lanes wide.
4. Slot 2 and Slot 5 PCI Express Channels are electrically four lanes wide.

References

1. Sun Fire X4240 Server Documentation.
2. Sun Fire X4440 Server Documentation.
3. Sun Fire X4450 Server Documentation.
4. Sun Storage 7110 Unified Storage System Installation Guide, 820-3756.
5. Sun Storage 7110 Unified Storage System Service Manual, 820-4159.
