Sun Fire X4600 M2 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
150-3993
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
X8096A-Z
[S]
501-7051
[C]
CPU Filler Board Assembly
n/a
X8107A-Z
[S]
541-2196
[C]
CPU/Memory Module (4 DIMM Slots/0MB, 1 Opteron Dual-Core 8216, 2.4 GHz, 95W CPU)
n/a
n/a
2.4 GHz CPU, Opteron 8216 Dual Core, F3 Stepping, 95W
n/a
CPU/Memory Board (4 DIMM Slots) n/a
X8108A-Z
[S]
541-1835
[C]
CPU/Memory Module (4 DIMM Slots/0MB, 1 Opteron Dual-Core 8218, 2.6 GHz, 95W CPU)
n/a
n/a
2.6 GHz CPU, Opteron 8218 Dual Core, F2 Stepping, 95W
n/a
CPU/Memory Board (4 DIMM Slots) n/a
X8109A-Z
[S]
541-2045
[C]
CPU/Memory Module (4 DIMM Slots/0MB, 1 Opteron Dual-Core 8220SE, 2.8 GHz, 120W CPU)
n/a
n/a
Opteron Dual-Core 8220SE, 2.8 GHz, F2 Stepping, 120W CPU
n/a
CPU/Memory Board (4 DIMM Slots) n/a
X8110A-Z
[S]
541-2197
[C]
CPU/Memory Module (4 DIMM Slots/0MB, 1 Opteron Dual-Core 8220, 2.8 GHz, 95W CPU)
n/a
n/a
2.8 GHz CPU, Opteron 8220 Dual Core, F3 Stepping, 95W
n/a
CPU/Memory Board (4 DIMM Slots) n/a
X8111A-Z
[S]
541-2403
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Dual-Core 8222, 3.0 GHz, 95W CPU)
n/a
n/a
3.0 GHz CPU, Opteron 8222 Dual Core, F3 Stepping, 95W
n/a
CPU/Memory Board (8 DIMM Slots) n/a
X8113A-Z
[S]
541-2262
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Dual-Core 8220, 2.8 GHz, 95W CPU)
n/a
n/a
2.8 GHz CPU, Opteron 8220 Dual Core, F3 Stepping, 95W
n/a
CPU/Memory Board (8 DIMM Slots) n/a
X8115A-Z
[S]
541-2744
[C]
CPU/Memory Module (4 DIMM Slots/0MB, 1 Opteron Dual-Core 8224SE, 3.2 GHz, 120W CPU)
n/a
n/a
Opteron Dual-Core 8224SE, 3.2 GHz, F3 Stepping, 120W CPU
n/a
CPU/Memory Board (4 DIMM Slots) n/a
X8226A-Z
[S]
541-1314
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Quad-Core 8347HE, 1.9 GHz, 55W CPU)
n/a
n/a
1.9 GHz CPU, Opteron 8347HE Quad Core, B3 Stepping, 55W
n/a
CPU/Memory Board (8 DIMM Slots) n/a
X8229A-Z
[S]
541-2785
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Quad-Core 8356, 2.3 GHz, 75W CPU)
n/a
n/a
2.3 GHz CPU, Opteron 8356 Quad Core, B3 Stepping, 75W n/a
CPU/Memory Board (8 DIMM Slots) n/a
X8233A-Z
[S]
541-2783
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Quad-Core 8360SE, 2.5 GHz, 105W CPU)
n/a
n/a
Opteron Quad-Core 8360SE, 2.5 GHz, B3 Stepping, 105W CPU
n/a
CPU/Memory Board (8 DIMM Slots) n/a
X8472A
[S]
541-3847
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Quad-Core 8376HE, 2.3 GHz, 55W CPU)
n/a
n/a
2.3 GHz CPU, Opteron 8376HE Quad Core, C2 Stepping, 55W
n/a
CPU/Memory Board (8 DIMM Slots) n/a
X8474A
[S]
541-3675
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Quad-Core 8380, 2.5 GHz, 75W CPU)
n/a
n/a
CPU/Memory Board (8 DIMM Slots) n/a
X8476A
[S]
541-3676
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Quad-Core 8384, 2.7 GHz, 75W CPU)
n/a
n/a
2.7 GHz CPU, Opteron 8384 Quad Core, C2 Stepping, 75W
n/a
CPU/Memory Board (8 DIMM Slots) n/a
X8478A
[S]
541-3867
[C]
CPU/Memory Module (8 DIMM Slots/0MB, 1 Opteron Quad-Core 8389, 2.9 GHz, 75W CPU)
n/a
n/a
2.9 GHz CPU, Opteron 8389 Quad Core, C2 Stepping, 75W n/a
CPU/Memory Board (8 DIMM Slots) n/a
NOTE: BIOS downloads are available at: http://www.oracle.com/technetwork/systems/patches/firmware/release-history-jsp-138416.html#X4600
Cables
Option #
Manufacturing
Description
Previous
X311L
[S]
Localized Power Cord Kit - North America/Asia
180-1097
[C] Buy
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black
n/a
X312E
[S]
Localized Power Code Kit - China
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M
n/a
X312F
[S]
Localized Power Cord Kit - Argentina
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black
n/a
X312G
[S]
Localized Power Cord Kit - Korea
180-1662
[C] Buy
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black
n/a
X312L
[S]
Localized Power Cord Kit - Continental Europe
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black
n/a
X314L
[S]
Localized Power Cord Kit - Swiss
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
X317L
[S]
Localized Power Cord Kit - U.K.
180-1997
[C] Buy
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black
n/a
X332A
[S]
Localized Power Cord Kit - Taiwan
180-2121
[C]
IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black
n/a
X383L
[S]
Localized Power Cord Kit - Danish
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black
530-1819
[C]
X384L
[S]
Localized Power Cord Kit - Italian
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black
n/a
X386L
[S]
Localized Power Cord Kit - Australian
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black
n/a
n/a
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black
n/a
n/a
530-1819
[C]
Localized Power Cord Kit - Danish
n/a
n/a
530-3100
RJ45F to DB9F Adapter
n/a
Communication
Option #
Manufacturing
Description
Previous
X1236A-Z
[S]
375-3382
[C]
Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile
n/a
X1333A-4
[S]
375-3418
[C]
Infiniband PCI-X Card
n/a
X4217A-Z
[S]
375-3549
[C]
Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile
n/a
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
501-7049
[F]
4-Slot Disk Backplane
n/a
Disks
Option #
Manufacturing
Description
Previous
XRA-SS2CD-146G10KZ
[S]
540-7151 [C]
146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
n/a
Nemo Bracket with Insulator
n/a
XRA-SS2CD-300G10K
[S]
540-7865 [C]
300GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks
n/a
Seagate ST9300603SS [ST930003SSUN300G] n/a
Hitachi HUC103030CSS600 [H103030SCSUN300G] n/a
Nemo Bracket with Insulator
n/a
XRA-SS2CD-73G10KZ
[S]
540-6611 [C]
73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets
n/a
Seagate ST973401SS [ST973401SSUN72G] n/a
Fujitsu MAY2073RC [MAY2073RCSUN72G] n/a
Seagate ST973402SS [ST973402SSUN72G] n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G] n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G] n/a
n/a
Nemo Bracket with Insulator
n/a
XRA-SS2CD-73G15K
[S]
540-7360 [C]
73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks
n/a
Seagate ST973451SS [ST973451SSUN72G] n/a
n/a
XRB-SS2CD-146G10K
[S]
540-7864 [C]
146GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks
n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
Seagate ST9146803SS [ST914603SSUN146G] n/a
Hitachi HUC103014CSS600 [H103014SCSUN146G] n/a
Nemo Bracket with Insulator
n/a
Ethernet
Option #
Manufacturing
Description
Previous
X1027A-Z
[S]
7054890
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
X1106A-Z
[S]
375-3585
[C]
Intel PRO/10GbE-SR x8 PCI Express
n/a
X1107A-Z
[S]
375-3586
[C]
Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket
n/a
X4446A-Z
[S]
7054739
[C]
PCI Express Quad Gigabit Ethernet UTP
375-3481
[C]
X4447A-Z
[S]
371-2348
Bracket Standard
n/a
7055021
[C]
Quad Port GbE PCI Express, UTP
511-1422
[C]
+
n/a
X5544A-4
[S]
10Gb PCI-X Ethernet Adapter, no transceiver
501-7413
[C]
10Gb PCI-X Ethernet Adapter
n/a
Bracket Standard 10Gb PCI-X Ethernet n/a
Bracket Low-Profile 10Gb PCI-X Ethernet n/a
X5558A
[S]
7058828
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
375-3301
[C]
X5559A
[S]
375-3361
[C]
10Gb/sec XFP Optical Transceiver Single Mode Fibre
n/a
X5560A-Z
[S]
375-3495
[C]
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)
n/a
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
X7285A
[S]
371-0911
[C]
Low Profile PCI-X Dual Gigabit Ethernet UTP
n/a
X7286A
[S]
371-0912
[C]
Low Profile PCI-X Single Gigabit Ethernet MMF
n/a
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
375-3301
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
n/a
n/a
375-3481
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
n/a
n/a
511-1422
[C]
Quad Port GbE PCI Express, UTP
501-7606
[C]
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
371-0094 [C]
Fan Assembly
n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
SG-XPCI1FC-EM2
[S]
375-3304
[C]
2Gb PCI-X Single FC Host Adapter
n/a
SG-XPCI1FC-EM4-Z
[S]
375-3398
[C]
4Gb PCI-X Single FC Host Adapter
n/a
SG-XPCI1FC-QF4
[S]
375-3354
[C]
4Gb PCI-X Single FC Host Adapter
n/a
SG-XPCI1FC-QL2
[S]
375-3383
[C]
2Gb PCI-X Single FC Host Adapter
n/a
SG-XPCI1FC-QLC-Z
[S]
375-3364
[C]
Entry-Level 2Gb PCI-X Single FC Host Adapter
n/a
SG-XPCI2FC-EM2
[S]
375-3305
[C]
2Gb PCI-X Dual FC Host Adapter
n/a
SG-XPCI2FC-EM4-Z
[S]
7058528
[C]
4Gb PCI-X Dual FC Host Adapter
375-3399
[C]
SG-XPCI2FC-QF2-Z
[S]
375-3363
[C]
2Gb PCI/PCI-X Dual FC Host Adapter
n/a
n/a
SG-XPCI2FC-QF4
[S]
7060890
[C]
4Gb PCI-X Dual FC Host Adapter
375-3294
[C]
SG-XPCIE1FC-EM4
[S]
375-3396
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053428
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-EM8-Z
[S]
371-4295
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053433
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF4
[S]
375-3355
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF8-Z
[S]
371-4324
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE2FC-EM4
[S]
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
7053427
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-EM8-Z
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF4
[S]
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-QF8-Z
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
375-3294
[C]
4Gb PCI-X Dual FC Host Adapter
n/a
n/a
375-3399
[C]
4Gb PCI-X Dual FC Host Adapter
n/a
Memory
Option #
Manufacturing
Description
Previous
X8098A
[S]
8 GB (2 × 4GB DDR2-667 Registered ECC DIMMs) Option
F541-3367 [C]
Qty 2 - 4GB DDR2-667 Registered ECC DIMMs (8GB Memory Assembly) [SKU]
n/a
4 GB DDR2-667 Memory DIMM n/a
X8122A-Z 1
[S]
2 GB (2 × 1GB DDR2-667 Registered ECC DIMMs) Option
F541-2012 [C]
2 GB (2 × 1GB DDR2-667 Registered ECC DIMMs) [SKU]
n/a
1 GB DDR2-667 Memory DIMM n/a
X8123A-C-Z
[S]
4GB (2 × 2GB DDR2-667 Registered ECC single-rank DIMMs) Option
F541-3425 [C]
(2 × 2GB DDR2-667 Registered ECC single-rank DIMMs) [SKU]
n/a
2 GB DDR2-667 single-rank Memory DIMM n/a
X8123A-Z
[S]
4 GB (2 × 2GB DDR2-667 Registered ECC DIMMs) Option
F541-2013 [C]
4 GB (2 × 2GB DDR2-667 Registered ECC DIMMs) [SKU]
n/a
2 GB DDR2-667 Memory DIMM n/a
X8124A-Z
[S]
8 GB (2 × 4GB DDR2-667 Registered ECC DIMMs) Option
F541-2129 [C]
Qty 2 - 4GB DDR2-667 Registered ECC DIMMs (8GB Memory Assembly) [SKU]
n/a
4 GB DDR2-667 Memory DIMM n/a
X8356A
[S]
16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs) Option
F541-3419 [C]
16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs) [SKU]
n/a
8GB DDR2-667 dual-rank Memory DIMM n/a
1 1GB DIMMs are not supported in 4-core configurations.
Power
Option #
Manufacturing
Description
Previous
X4094A-Z
[S]
Power Supply (4 × 950W)
300-2013
[C]
Type A222 950 Watt AC Input Power Supply
n/a
X5009A-Z
[S]
Power Supply Upgrade Kit (4 × 1133W)
300-2158
[C]
Type A238 1133 Watt AC Input Power Supply
n/a
n/a
300-1971
[C]
Type A204 850 Watt AC Input Power Supply
n/a
n/a
501-7052
[F]
Power Distribution Board
n/a
Rack
Option #
Manufacturing
Description
Previous
X8094A-Z
[S]
371-0088 [C]
Cable Management Arm Assembly
n/a
X8095A-Z
[S]
370-7785 [C]
Rail Kit Assembly
n/a
X8495A
[S]
371-3838 [C]
Slide Rail Assembly
n/a
371-3839 [C]
Cable Management Arm Assembly
n/a
Removable Media
Option #
Manufacturing
Description
Previous
n/a
390-0320
[F]
8x DVD-ROM / 24x CD-Writer Assembly
n/a
SCSI
Option #
Manufacturing
Description
Previous
SG-XPCIE2SCSIU320Z
[S]
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
SG-XPCIE8SAS-E-Z
[S]
7050793
[C]
PCI Express 8-Port Host Adapter
375-3487
[C]
SGXPCI1SCSILM320-Z
[S]
375-3366
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
SGXPCIESAS-R-EXT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3537
[C]
8-Port SAS RAID External HBA
n/a
n/a
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3487
[C]
PCI Express 8-Port Host Adapter
n/a
System Board
Option #
Manufacturing
Description
Previous
n/a
501-7638
[F]
Motherboard
n/a
3V Lithium Coin Cell Battery
n/a
n/a
511-1155 [F]
Motherboard (Unisys only)
n/a
3V Lithium Coin Cell Battery
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

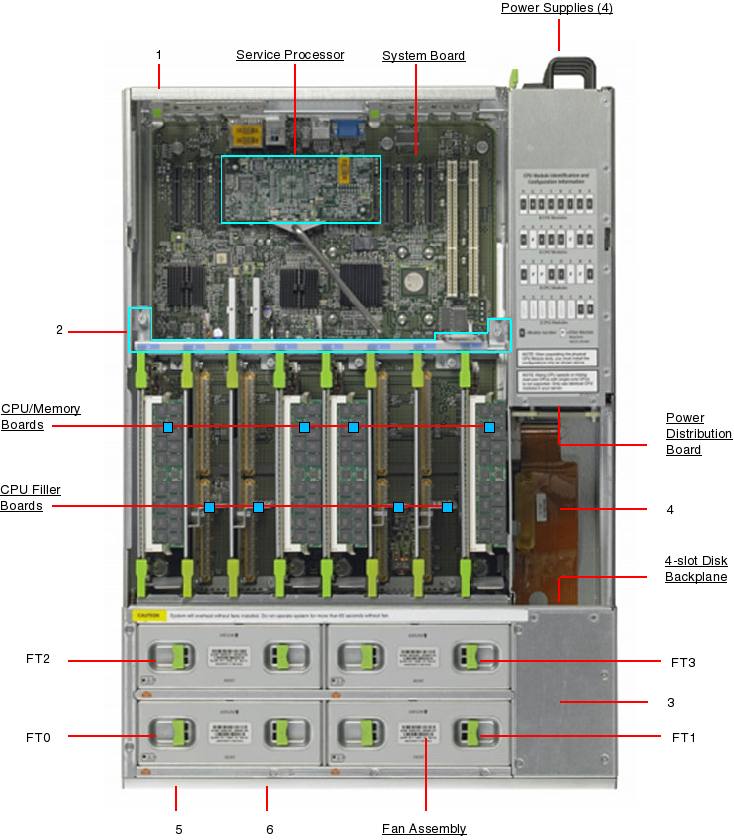

Code
Manufacturing Part#
Description
1
541-0327
Chassis Subassembly
-
1
2
3
1
541-1906
Chassis Subassembly
-
-
4
PDB to Motherboard to PATA DVD to Disk Backplane Flex Cable
5
MBD to USB to Front LED/Switch Board Flex Cable
1
599-3198
Base Chassis Assembly
-
6
NS
541-0605 [F]
Blank Disk Drive Filler
NS
594-4832 [F]
Narrow Aisle Removal (NAR) Kit, Option X1115A-Z
NS
NS
NS
NS
NS
F555-1944 [F]
Narrow Aisle Removal (NAR) Kit [SKU]
NS
NS
NS
NS
