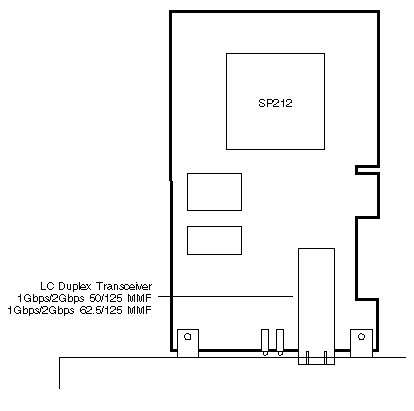

2Gigabit/Sec PCI-X Single FC Host Adapter

Codename: Prism

Options SG-XPCI1FC-QLC / SG-XPCI1FC-QLC-Z

375-3253	375-3364
Qlogic QLA210-Sun PCI/PCI-X 3.3V   32Bit   33/66/100/133MHz SG-XPCI1FC-QLC	Qlogic QLA210-Sun PCI/PCI-X 3.3V   32Bit   33/66/100/133MHz SG-XPCI1FC-QLC-Z

Additional Information & Views

Notes

1. Standard Profile PCI Bracket 240-4837 is installed on SG-XPCI1FC-QLC.
2. Low Profile PCI Bracket 240-4727 is included with SG-XPCI1FC-QLC.
3. The FRU includes Standard Bracket 240-4837 and Low Profile Bracket 240-4727.

Solaris Notes

1. The minimum Solaris operating system is Solaris 10 3/05 x86/x64.
2. The QLA210 device driver for Solaris 10 is in Patch 119131.
3. SunVTS 6.0 requires Patch 119275. Diagnostics are supported by qlctest.
4. Booting from a disk drive attached to the QLA210 is not supported.

Linux Notes

1. The minimum operating system is Red Hat Enterprise Linux 3.0 (AMD64 or IA32).
2. The minimum operating system is SuSE Linux Enterprise Server 8.0 (AMD64 or IA32).
3. The device driver is at www.qlogic.com/support/oem_detail_all.asp?oemid=124.

Windows Notes

1. The minimum operating system is Windows Server 2000 (IA32).
2. The minimum operating system is Windows Server 2003 (IA32).
3. The device driver is at www.qlogic.com/support/oem_detail_all.asp?oemid=124.

References

1. Sun StorageTek 2 Gb Fibre Channel PCI-X Entry-Level HBA, Single Port Documentation.
