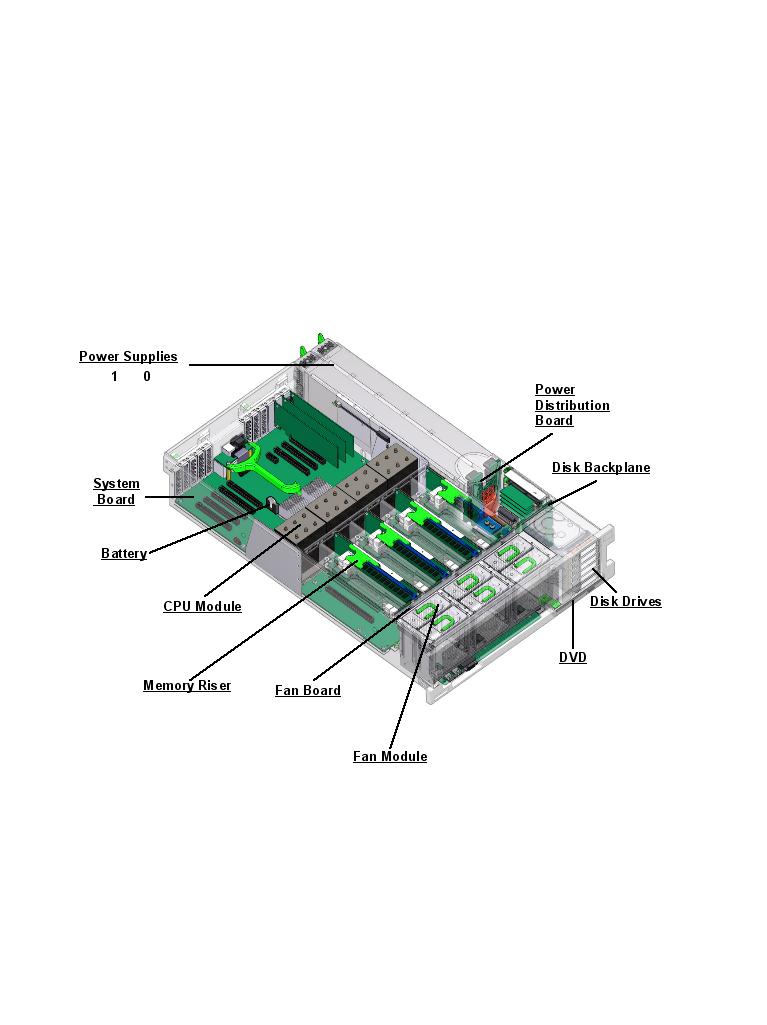

Sun Server X2-4 / Sun Fire X4470 M2 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
150-3993
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
7100143
[S]
2 x 2.0GHz 8-Core Xeon E7-4820 CPU Modules and one of the following CPU heat sinks:
310-0228 [F]
CPU Heatsink
n/a
371-5056
[F]
2.0GHz 8-Core Xeon E7-4820 CPU Module
n/a
7046121 [F]
CPU Heatsink
n/a
7100146
[S]
2 x 2.26GHz 10-Core Xeon E7-4860 CPU Modules and 1 of the following CPU heat sinks:
310-0228 [F]
CPU Heatsink
n/a
371-5054
[F]
2.26GHz 10-Core Xeon E7-4860 CPU Module
n/a
7046121 [F]
CPU Heatsink
n/a
7100150
[S]
2 x 2.4GHz 10-Core Xeon E7-4870 CPU Modules and 1 of the following CPU heat sinks:
310-0228 [F]
CPU Heatsink
n/a
371-5053
[F]
2.4GHz 10-Core Xeon E7-4870 CPU Module
n/a
7046121 [F]
CPU Heatsink
n/a
Cables
Option #
Manufacturing
Description
Previous
X2130A-1M-N Buy
530-4441 [C]
10Gbps SFP+ TwinX Cable, 1m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
X2130A-10M-N
[S]
530-4454 [C]
10Gbps SFP+ TwinX Cable, 10m
n/a
n/a
560-2951 [F]
Cable Kit
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 780mm n/a
Fan Board to System Board Signal Cable n/a
Fan Board to System Board Power Cable n/a
System Board to PDB Cable n/a
System Board to Disk Backplane Signal Cable n/a
System Board to Disk Backplane Power Cable n/a
SFF-8087 to SFF-8087/SATA Splitter Cable, 780mm n/a
Chassis
Option #
Manufacturing
Description
Previous
n/a
7049975
Base Assembly
n/a
n/a
Air Divider with Fault Remind Button n/a
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 780mm n/a
Fan Board to System Board Signal Cable n/a
Fan Board to System Board Power Cable n/a
System Board to PDB Cable n/a
System Board to Disk Backplane Signal Cable n/a
System Board to Disk Backplane Power Cable n/a
SFF-8087 to SFF-8087/SATA Splitter Cable, 780mm n/a
n/a
RJ45F to DB9F Adapter (Exploded View) n/a
n/a
7051575
Chassis Subassembly
n/a
n/a
Power Supply Chassis Cable Cover n/a
n/a
n/a
n/a
n/a
Power Distribution Board Cover n/a
AC Input Line Filter with Cable n/a
n/a
7067321
Chassis Subassembly
7051575
n/a
n/a
Power Supply Chassis Cable Cover n/a
n/a
n/a
n/a
Power Distribution Board Cover n/a
AC Input Line Filter with Cable n/a
Communication
Option #
Manufacturing
Description
Previous
X4242A
[S]
7092767
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
375-3696
[C]
n/a
375-3696
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a
Disks
Option #
Manufacturing
Description
Previous
7101423
[S]
7017183 [C]
100GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk) n/a
n/a
7101469
[S]
7017184 [C]
300GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk) n/a
n/a
XRA-SS2CF-600G10K2
[S]
542-0287 [C] Buy
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;
n/a
Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk) n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
XRA-ST2CF-32G2SSD
[S]
540-7841 [C]
32GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk) n/a
n/a
XRB-SS2CF-300G10K2
[S]
542-0388 [C] Buy
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk) n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7048474
[C]
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
375-3617
[C]
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
X5562A-Z Buy
135-1205
[C]
10Gb/Sec Long Wave SFP+ Transceiver
n/a
7105381
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
7105382
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
SG-XPCIEFCOE2-Q-SR
[S]
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
SG-XPCIEFCOE2-Q-TA
[S]
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
X4446A-Z-N
[S]
7054739
[C]
PCI Express Quad Gigabit Ethernet UTP
375-3481
[C]
X7281A-2-N
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
375-3481
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
375-3617
[C]
Dual 10-Gigabit Ethernet SFP+ LP
n/a
n/a
375-3681
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
n/a
375-3682
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
7014747
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a
n/a
7014776
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
n/a
7048474
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
541-3535
[F]
Fan Cage Assembly
n/a
Fan Board with USB and VGA n/a
530-4349 [F] Buy n/a
n/a
541-3539 [C]
92mm Fan Module
n/a
n/a
7051522
[F]
Fan Cage Assembly
541-3535
[F]
530-4349 [F] Buy n/a
Fan Board with USB and VGA 511-1243
n/a
7057262
[F]
Fan Cage Assembly
7051522
[F]
+
530-4349 [F] Buy n/a
Fan Board with USB and VGA n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
7105391
[S]
8Gigabit/Sec PCI Express Single FC Host Adapter
7053433
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-EM8-N
[S]
371-4295
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053433
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF8-N
[S]
371-4324
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE2FC-EM8-N
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF8-N
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
Memory
Option #
Manufacturing
Description
Previous
7100155 1
[S]
7011549 [C]
8GB Memory Assembly (2 × 4GB DDR3-1333 DIMMs)
n/a
4GB 1.35V DDR3L-1333 DIMM (2-rank) n/a
7100160 2
[S]
7011550 [C]
16GB Memory Assembly (2 × 8GB DDR3-1333 DIMMs)
n/a
8GB 1.35V DDR3L-1333 DIMM (2-rank) n/a
7100164
[S]
542-0434 [C]
Qty 2 - 16GB 1.35V DDR3-1066 DIMMs (32GB Memory Assembly)
n/a
16GB 1.35V DDR3L-1066 DIMM (4-rank) n/a
7100169
[S]
(2 x 8-DIMM) Memory Riser Assembly X-Option
7051516 [C]
Memory Riser Assembly
541-4438 [C]
Memory Riser Tray Assembly n/a
n/a
511-1672
7104926
[S]
7059236 [C]
32GB Memory Assembly (2 × 16GB DDR3L-1600 DIMMs)
n/a
16GB 1.35V DDR3L-1600 DIMM (2-rank) n/a
X2352A
[S]
330-4839
Memory Slot Filler
n/a
n/a
541-4438 [C]
Memory Riser Assembly
n/a
n/a
n/a
1 Pricelist describes this memory as '1066' which reflects that the DIMM operation is limited by the CPU QuickPath Interconnect (QPI) speed.2 Pricelist describes this memory as '1066' which reflects that the DIMM operation is limited by the CPU QuickPath Interconnect (QPI) speed.
Power
Option #
Manufacturing
Description
Previous
n/a
300-2228
[C]
Type A239A 2000 Watt AC Input Power Supply
n/a
n/a
300-2344
[C]
Type A239C 1030/2060 Watt AC Input Power Supply
n/a
n/a
541-3541
[F]
Power Distribution Board / Power Supply Backplane
n/a
n/a
n/a
n/a
7022322
[F]
Power Distribution Board / Power Supply Backplane
541-3541
[F]
n/a
n/a
n/a
7048278
[C]
Type A239C 1030/2060 Watt AC Input Power Supply
300-2344
[C]
n/a
7052431
[F]
Power Distribution Board / Power Supply Backplane
7022322
[F]
+
n/a
Power Distribution Board / Power Supply Backplane 7022323
n/a
7060596
[C]
Type A239E 2000 Watt AC Input Power Supply
7048278
[C]
+
n/a
7081064
[C]
Type A239A 2000 Watt AC Input Power Supply
7060596
[C]
+
Rack
Option #
Manufacturing
Description
Previous
X2364A
[S]
371-4812 [C] Buy
Cable Management Arm
n/a
X2365A
[S]
371-4791 [C] Buy
Tool-less Slide Rail Rack Mount Kit
n/a
Removable Media
Option #
Manufacturing
Description
Previous
X8370A
[S]
541-4272
[C]
Slot-Load DVD Assembly
n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
7013722
[C]
Slot-Load SATA DVD-Writer/CD-Writer
n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer
390-0443
n/a
7017475
[C]
Slot-Load SATA DVD-Writer/CD-Writer
n/a
Slot-Load SATA DVD-Writer/CD-Writer n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
SCSI
Option #
Manufacturing
Description
Previous
7105387
[S]
8-Port 6Gbps SAS-2 PCI Express HBA
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
SGX-SAS6-EXT-Z
[S]
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
SGX-SAS6-INT-Z
[S]
7047852
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3640
[C]
SGX-SAS6-R-INT-Z
[S]
7047503
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
375-3701
[C]
7050794
[C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
371-4982 [C]
XTA-FAS-S3IE96GB-N
[S]
541-3731
96GB PCI Express Flash Accelerator F20 SAS HBA
n/a
Energy Storage Module (ESM) n/a
n/a
24GB Solid State Flash Memory Module, FW D21Y
371-4415
[C]
n/a
371-4415
[C]
24GB Solid State Flash Memory Module
n/a
n/a
371-4982 [C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
n/a
n/a
375-3640
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3641
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3701
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
n/a
NOTE: Only install the 6Gigabit SAS RAID PCI Express HBA (SGX-SAS6-R-INT-Z) in slot 4.
System Board
Option #
Manufacturing
Description
Previous
n/a
541-4706 [F]
System Board Assembly
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7025254 [F]
System Board Assembly
541-4706 [F]
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7044431 [F]
System Board Assembly
7025254 [F]
+
541-4706 [F]
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7071038
[F]
System Board Assembly
7044431 [F]
+
7025254 [F]
[F]
3V Lithium Coin Cell Battery
n/a
n/a
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
530-3510
Interlock Switch Cable
NS
530-4348
System Board to Rear I/O Board Signal Cable
NS
599-3800
X4470 M2 Base Chassis Assembly
NS
NS
NS
RJ45F to DB9F Adapter (Exploded View)
NS
NS
Air Divider with Fault Remind Button
NS
4x Mini SAS Cable, SFF-8087 to SFF-8087, 780mm
NS
Fan Board to System Board Signal Cable
NS
Fan Board to System Board Power Cable
NS
System Board to PDB Cable
NS
System Board to Disk Backplane Signal Cable
NS
System Board to Disk Backplane Power Cable
NS
SFF-8087 to SFF-8087/SATA Splitter Cable, 780mm
NS
Fan Board with USB and VGA
530-4349 [F] Buy
Power Distribution Board / Power Supply Backplane
NS
Power Supply Chassis Cable Cover
NS
NS
NS
NS
NS
Power Distribution Board Cover
NS
AC Input Line Filter with Cable
NS
Chassis Assembly (replaced 541-4707)
NS
7022320
Chassis Subassembly
NS
Power Supply Chassis Cable Cover
NS
NS
NS
NS
NS
Power Distribution Board Cover
NS
AC Input Line Filter with Cable
