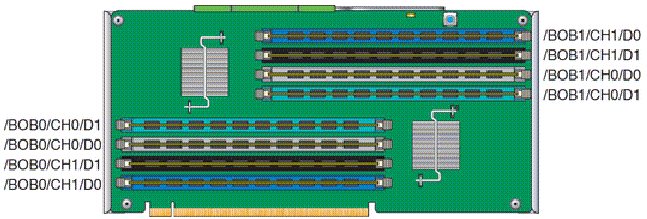

Memory Riser

Option X2350A
Option 7100169

511-1241	541-3819
Memory Riser Board	Memory Riser Assembly 511-1241 + Riser Tray X4470 Option X2350A
511-1667	541-4418
Memory Riser Board	Memory Riser Assembly 511-1667 + Riser Tray SPARC T3-2 No Option
511-1672	541-4438
Memory Riser Board	Memory Riser Assembly 511-1672 + Riser Tray Sun Server X2-4 / X4470 M2 Option 7100169 SPARC T4-2 No Option Netra SPARC T4-2 No Option
7051515	7051516
Memory Riser Board	Memory Riser Assembly 7051515 + Riser Tray Server X2-4 / X4470 M2 Option 7100169 SPARC T4-2 No Option Netra SPARC T4-2 No Option

Notes

1. Install DIMM Filler 330-4839 in all unused DIMM slots.
2. Riser 541-3819 replaced 541-4418 in the SPARC T3-2 in February 2011. (E0002674)

X4470 and X4470 M2 Installation Notes

1. Two, four, six, and eight DIMM configurations are supported.

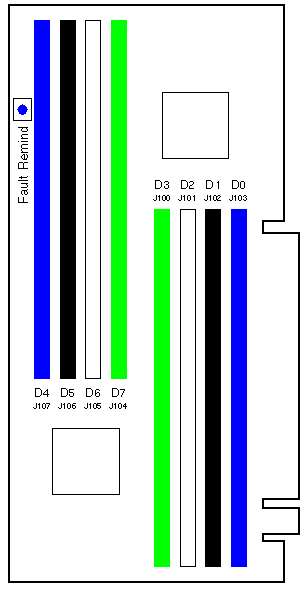

2. Install D0/D4 (blue), then D2/D6 (white), then D1/D5 (black), and then D3/D7 (green).

SPARC T3-2, SPARC T4-2, and Netra SPARC T4-2 Installation Notes

1. Install D0/D4 (blue) and D2/D6 (white) for a four DIMM configuration.
2. Install all DIMMS for an eight DIMM configuration.
3. Two DIMM configurations shown on the service label are not supported.
4. Two DIMM configurations are not supported.
