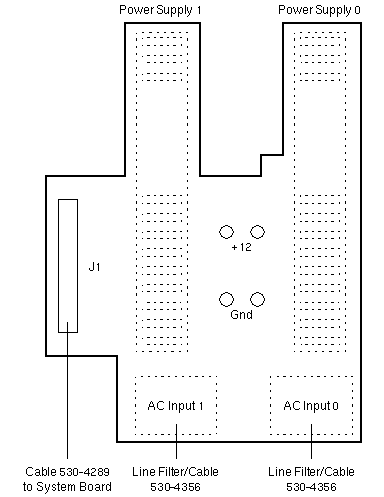

DC Power Distribution Board / Power Supply Backplane
| 371-4446 |
511-1242 |
541-3541 |
| Busbar |
PDB
FAB 271-1242 |
PDB Assembly/FRU |
| 371-4446 |
7022323 |
7022322 |
| Busbar |
PDB
FAB 7022193 |
PDB Assembly/FRU |
| 371-4446 |
7052430 |
7052431 |
| Busbar |
PDB
FAB 7022193 |
PDB Assembly/FRU |
| 371-4446 |
7052430 |
7300803 |
| Busbar |
PDB
FAB 7022193 |
PDB Assembly/FRU |
| 371-4446 |
7052430 |
7317314 |
| Busbar |
PDB
FAB 7022193 |
PDB Assembly/FRU |
| 371-4446 |
7307832 |
7303476 |
| Busbar |
PDB
FAB 7307831 |
PDB Assembly/FRU |
Sun Fire X4470 Codename: Callisto
Sun ZFS Storage 7420 Codename: Amber Road (Otoro)
Sun ZFS Storage 7720 Codename: Amber Road (Anago/Genesis)
SPARC T3-2 Codename: Solana |
Notes
- Tabs on the top and bottom of the snap-in Delta 3GENW3ES/-R AC Line Filter
prevent removal of cable 530-4356 from the chassis.
- Remove Air Divider 350-1406, 7052037, or 7093647, PDB Cover 350-1469 or 7068043,
the System Board and both Power Supplies before removing the PDB.
- The difference between 7052431 and 7300803 is mounting washers and nuts.
- The difference between 7300803 and 7317314 is HiPot testing and labeling.
|
