Options 7100155 / 7100160 / 7100164
Options 7100131 / 7100133 / 7100134 / 7103611

371-5023	7011452	7011456

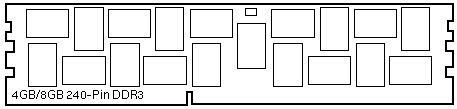

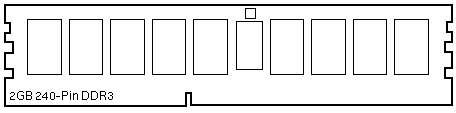

DDR3L-1066/PC3L-8500 4-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 16GB Registered DIMM 32GB FRU 542-0434 Sun Server X2-4 / X4470M2 Option 7100164 Sun Server X2-8 / X4800M2 Option 7100134	DDR3L-1333/PC3-10600 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 4GB Registered DIMM 8GB FRU 7011549 Sun Server X2-4 / X4470M2 Option 7100155 Sun Server X2-8 / X4800M2 Option 7100131	DDR3L-1333/PC3-10600 2-Rank/2Gbit SDRAM 1.35V VDD/VDDQ 8GB Registered DIMM 16GB FRU 7011550 Sun Server X2-4 / X4470M2 Option 7100160 Sun Server X2-8 / X4800M2 Option 7100133
7046137	7058861	7075659
DDR3L-1333/PC3L-10600 4-Rank/4Gbit SDRAM 1.35V VDD/VDDQ 32GB Registered DIMM 64GB FRU 7045464 Sun Server X2-8 / X4800M2 Option 7103611	DDR3L-1600/PC3L-12800 2-Rank/4Gbit SDRAM 1.35V VDD/VDDQ 16GB Registered DIMM 32GB FRU 7059236 Sun Server X2-8 / X4800M2 Option 7104926	DDR3L-1333/PC3L-10600 4-Rank/4Gbit SDRAM 1.35V VDD/VDDQ 16GB Registered DIMM 32GB FRU 7075661 Exalytics X2-4 Option 7106950

Exalytics In-Memory Machine X2-4 Notes

1. Exalytics X2-4 option 7106950 includes F40 7070787 and 64× 32GB DIMM 7075659.
   Exalytics X2-4 option 7106950 requires firmware >= SW 1.4

Sun Server X2-4 / Sun Fire X4470 M2 Notes

1. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
2. Install D0/D4 (blue), then D2/D6 (white), then D1/D5 (black), and then D3/D7 (green).
3. Mixing 2-rank and 4-rank DIMMs on the same riser is not supported.
4. 16GB DIMMs are not supported with system firmware 1.0 (SW 1.0).
5. Firmware 1.0.1 supports 1TB of 16GB DIMMs with Windows Server 2008 R2.

Sun Server X2-8 / Sun Fire X4800 M2 Notes

1. DIMM speed is limited by the CPU QuickPath Interconnect (QPI) speed.
2. Install the first DIMMs in Blue slots D0, D4, D8, and D12.
3. Install the second DIMMs in White slots D2, D6, D10, and D14.
4. Install the third DIMMs in Black slots D1, D5, D9, and D13.
5. Install the fourth DIMMs in Green slots D3, D7, D11, and D15.
6. Mixing 2-rank and 4-rank DIMMs in the same CMOD is not supported.

References

1. Sun Server X2-4 / Sun Fire X4470 M2 Server Documentation.
2. Sun Server X2-8 / Sun Fire X4800 M2 Server Documentation.
