6-Slot Disk Backplane

Sun Fire X4470 / Sun Fire X4470 M2 (Sun Server X2-4)

511-1246	7039459
MG9073 Controller FAB 271-1246 X4470	EPM570 Controller FAB 7039458 X4470 and X2-4

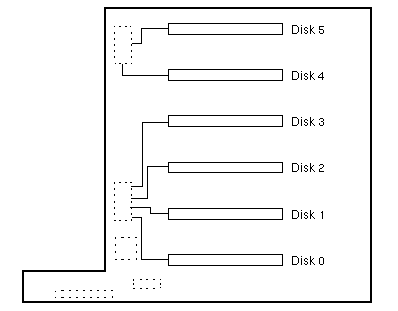

Front View

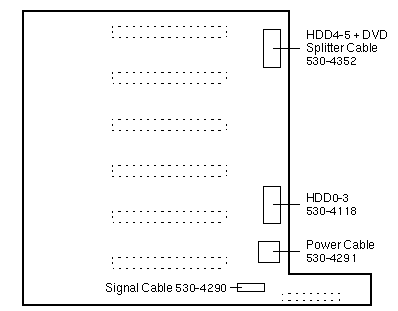

Rear View

Sun Fire X4470 Codename: Callisto Sun Fire X4470 M2 Codename: Callisto+

Notes

1. Cable Kit 560-2951 includes 530-4118, 530-4290, 530-4291, and 530-4352.

References

1. Sun Fire X4470 Server Documentation.
2. Sun Fire X4470 M2 Server Documentation.

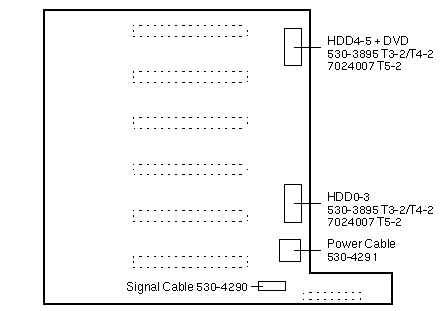

SPARC T3-2 Codename: Solana SPARC T4-2 Codename: Solana YF

Notes

1. Cable Kit 560-2963 includes 530-3895, 530-4290, and 530-4291.
2. Cable Kit 7070388 includes 530-3895, 530-4290, 530-4291, and 7024007.
3. ILOM 3.0.12.2.d, Patch 145667-02, sets the minimum power supply fan speed
   to 50% to prevent Disk Drive overheating in the SPARC T3-2. (BugID 15682969 [SUNBT7001959])

References

1. SPARC T3-2 Server Documentation.
2. SPARC T4-2 Server Documentation.
3. SPARC T5-2 Server Documentation.

Notes

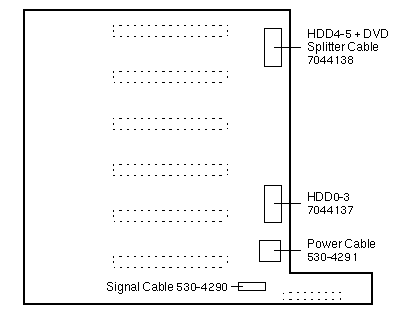

1. Cable Kit 7085487 includes 530-4290, 530-4291, 7044137, and 7044138.

References

1. Sun Server X4-4 Documentation.
