| 511-1740 |
541-4706 |
7025254 |
|

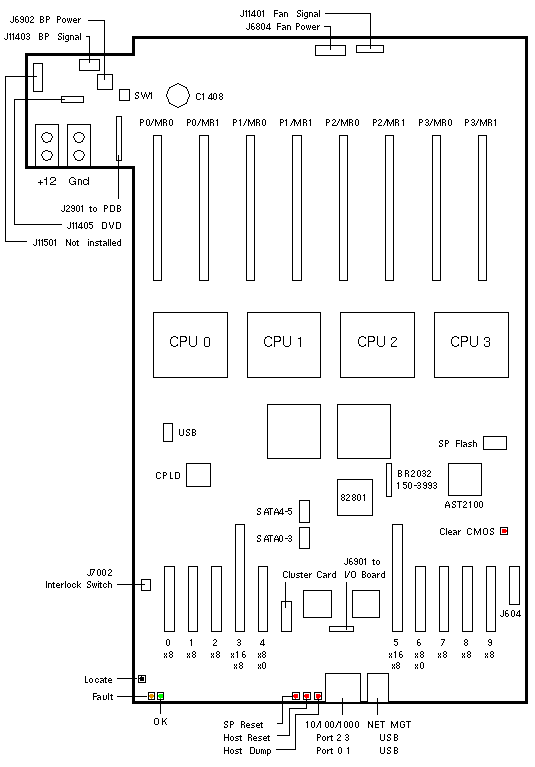

System Board |
Assembly/FRU
511-1740 +
Rear I/O Board 511-1245
Tray 341-5567
Pkg FRU 7012417 |
Assembly/FRU
511-1740 +
Rear I/O Board 511-1245
Tray 341-5567
Pkg FRU 7025255 |
Headers, Jumpers, LEDs, and Switches
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J1 |
1-2 |
Out |
Disable MP |
| J3 |
1-2 |
Out |
Not Documented |
| J17 |
1-2 |
Out |
MFG |
| J28 |
1-3 |
Out |
BIOS REC |
| J39 |
1-3 |
Out |
Not Documented |
| J40 |
1-3 |
Out |
DESC Override |
| J602 |
1-2 |
Out |
Not Documented |
| J603 |
1-2 |
Out |
SP Debug |
| J702 |
1-2 |
Out |
Not Documented |
| J705 |
1-2 |
Out |
FLA1 |
| J706 |
1-2 |
Out |
FLA0 |
| J901 |
1-3 |
Out |
Not Documented |
| J1302 |
1-2 |
Out |
SP Write Protect |
| J4449 |
1-2 |
Out |
Not Documented |
| J12101 |
1-2 |
In or Out |
IMON Slope Hi |
|
Jumper locations are not illustrated. The default setting is listed.
|
|
Sun Server X2-4 / Sun Fire X4470 M2 Codename: Callisto+ |
Notes
- The minimum Solaris operating system is Solaris 10 09/10.
- In a two CPU configuration, install P0 and P2 and install fillers in P1 and P3.
- A two CPU configuration will operate at low-line, 100-127Volt, AC input.
- A four CPU configuration requires high-line, 200-240Volt, AC input.
Thermal Grease Notes
- The System Board FRU includes four 250-1802 Cleaning Wipes, and four
310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
- Heatsink FRU F310-0228 includes Heatsink 310-0228, one 250-1802 Cleaning Wipe
and one 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringe. The Heatsink is
pre-greased with Shin-Etsu G751 or X23-7783D.
PCI Express Notes
- PCI Express Slots 3 and 4 have 16 shared lanes available. If an x8 card is installed
in Slot 3, Slot 4 has eight lanes available. If an x16 card is installed in Slot 3, no card
will operate in Slot 4.
- PCI Express Slots 5 and 6 have 16 shared lanes available. If an x8 card is installed
in Slot 5, Slot 6 has eight lanes available. If an x16 card is installed in Slot 5, no card
will operate in Slot 6.
- HBA 375-3640 is supported in Slot 2 only.
- HBA 375-3644 is supported in Slot 4 only. Use as an internal HBA is not supported.
- Refer to X4470 Product Notes for additional card and slot restrictions.
References
 Sun Server X2-4 / Sun Fire X4470 M2 Server Documentation.
| 7044422 |
7044431 |

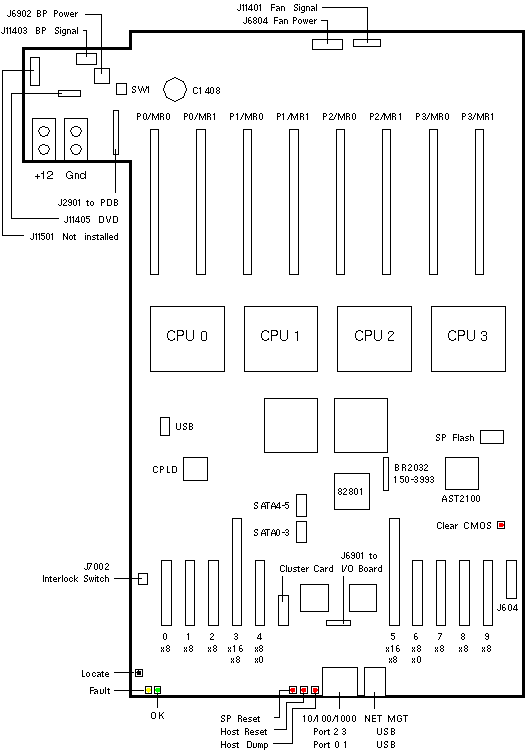

System Board
CPLD 1.6 |
Assembly/FRU
7044422 +
Rear I/O Board 7051520
Tray 341-5567 |
| 7071037 |
7071038 |
System Board
CPLD 1.7 |
Assembly/FRU
7071037 +
Rear I/O Board 7051520
Tray 341-5567 |
Headers, Jumpers, LEDs, and Switches
| LOCATION |
PINS |
SETTING |
DESCRIPTION |
| J1 |
1-2 |
Out |
Disable MP |
| J3 |
1-2 |
Out |
Not Documented |
| J17 |
1-2 |
Out |
MFG |
| J28 |
1-3 |
Out |
BIOS REC |
| J39 |
1-3 |
Out |
Not Documented |
| J40 |
1-3 |
Out |
DESC Override |
| J602 |
1-2 |
Out |
Not Documented |
| J603 |
1-2 |
Out |
SP Debug |
| J702 |
1-2 |
Out |
Not Documented |
| J705 |
1-2 |
Out |
FLA1 |
| J706 |
1-2 |
Out |
FLA0 |
| J901 |
1-3 |
Out |
Not Documented |
| J1302 |
1-2 |
Out |
SP Write Protect |
| J4449 |
1-2 |
Out |
Not Documented |
| J12101 |
1-2 |
In or Out |
IMON Slope Hi |
|
Jumper locations are not illustrated. The default setting is listed.
|
Notes
- The minimum Solaris operating system is Solaris 10 09/10.
- In a two CPU configuration, install P0 and P2 and install fillers in P1 and P3.
- A two CPU configuration will operate at low-line, 100-127Volt, AC input.
- A four CPU configuration requires high-line, 200-240Volt, AC input.
Thermal Grease Notes
- The System Board FRU includes four 250-1802 Cleaning Wipes, and four
310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
- Heatsink FRU F310-0228 includes Heatsink 310-0228, one 250-1802 Cleaning Wipe
and one 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringe. The Heatsink is
pre-greased with Shin-Etsu G751 or X23-7783D.
PCI Express Notes
- PCI Express Slots 3 and 4 have 16 shared lanes available. If an x8 card is installed
in Slot 3, Slot 4 has eight lanes available. If an x16 card is installed in Slot 3, no card
will operate in Slot 4.
- PCI Express Slots 5 and 6 have 16 shared lanes available. If an x8 card is installed
in Slot 5, Slot 6 has eight lanes available. If an x16 card is installed in Slot 5, no card
will operate in Slot 6.
- HBA 375-3640 is supported in Slot 2 only.
- HBA 375-3644 is supported in Slot 4 only. Use as an internal HBA is not supported.
- Refer to X4470 Product Notes for additional card and slot restrictions.
References
- Sun Server X2-4 / Sun Fire X4470 M2 Server Documentation.
|
