Sun Fire X4450 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
X6370A
[S]
2× 2.93 GHz Dual-Core Xeon E7220
310-0160 [F]
Xeon Heatsink
n/a
371-3455
[F]
2.93 GHz CPU, Xeon E7220, Dual Core, 80W
n/a
X6371A
[S]
2× 1.86 GHz Quad-Core Xeon L7345
310-0160 [F]
Xeon Heatsink
n/a
371-3456
[F]
1.86 GHz CPU, Xeon L7345 Quad Core, 50W
n/a
X6372A
[S]
2× 2.13 GHz Quad-Core Xenon E7320
310-0160 [F]
Xeon Heatsink
n/a
371-3457
[F]
2.13 GHz CPU, Xeon E7320 Quad Core, 80W
n/a
X6373A
[S]
2× 2.40 GHz Quad-Core Xenon E7340
310-0160 [F]
Xeon Heatsink
n/a
371-3458
[F]
2.40 GHz CPU, Xeon E7340 Quad Core, 80W
n/a
X6374A
[S]
2× 2.93 GHz Quad-Core Xenon E7350
310-0160 [F]
Xeon Heatsink
n/a
371-3459
[F]
2.93 GHz CPU, Xeon X7350 Quad Core, 130W
n/a
X6375A
[S]
2.13GHz Quad-Core Xeon E7420
310-0160 [F]
Xeon Heatsink
n/a
371-4362
[F]
2.13GHz CPU, Xeon E7420, Quad-Core, 90W
n/a
X6376A
[S]
2.40GHz Quad-Core Xeon E7440
310-0160 [F]
Xeon Heatsink
n/a
371-4363
[F]
2.40 GHz CPU, Xeon E7440 Quad Core, 90W
n/a
X6377A
[S]
2.13GHz 6-Core Xeon L7455
310-0160 [F]
Xeon Heatsink
n/a
371-4364
[F]
2.13 GHz CPU, Xeon L7445 Quad Core, 50W
n/a
X6378A
[S]
2.40GHz 6-Core Xeon E7450
310-0160 [F]
Xeon Heatsink
n/a
371-4365
[F]
2.40 GHz CPU, Xeon E7450 6-Core, 90W
n/a
X6379A
[S]
2.6GHz 6-Core Xeon X7460
310-0160 [F]
Xeon Heatsink
n/a
371-4367
[F]
2.6GHz CPU, Xeon X7460, 6-Core, 130W
n/a
Cables
Option #
Manufacturing
Description
Previous
X311L
[S]
Localized Power Cord Kit - North America/Asia
180-1097
[C] Buy
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black
n/a
X312E
[S]
Localized Power Code Kit - China
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M
n/a
X312F
[S]
Localized Power Cord Kit - Argentina
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black
n/a
X312G
[S]
Localized Power Cord Kit - Korea
180-1662
[C] Buy
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black
n/a
X312L
[S]
Localized Power Cord Kit - Continental Europe
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black
n/a
X314L
[S]
Localized Power Cord Kit - Swiss
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
X317L
[S]
Localized Power Cord Kit - U.K.
180-1997
[C] Buy
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black
n/a
X320A
[S]
Localized Power Cord Kit - North America/Asia
180-2164
[C] Buy
IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black
n/a
X333A-25-10-IL
[S]
Localized Power Cord Kit Israel
180-2130
[C] Buy
IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black
n/a
X333A-25-15-JP
[S]
Localized Power Cord Kit Japan
180-2243
[C] Buy
IEC 320 C13 to PSE 5-15P, 10A/125V, 2.5M, Black
n/a
X333A-25-15-TW
[S]
Localized Power Cord Kit - Taiwan
180-2333
[C]
IEC 320 C13 to CNS 690 - 15A/125V 2.5M Black
n/a
X333F-25-15-JP
[S]
Localized Power Cord Kit Japan
180-2244
[C] Buy
IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black
n/a
X340L
[S]
Power Kit for North America, L6-20 20A Twist Lock Plug
180-2070
[C]
NEMA L6-20P to IEC 320 C13 - 4.0M
n/a
X383L
[S]
Localized Power Cord Kit - Danish
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black
n/a
X384L
[S]
Localized Power Cord Kit - Italian
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black
n/a
X386L
[S]
Localized Power Cord Kit - Australian
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black
n/a
n/a
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black
n/a
Communication
Option #
Manufacturing
Description
Previous
X1236A-Z
[S]
375-3382
[C]
Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile
n/a
X4217A-Z
[S]
375-3549
[C]
Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile
n/a
X6000A 1
[S]
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000
n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
501-7730
[F]
8-Slot Disk Backplane, PATA DVD
n/a
n/a
511-1256
[F]
8-Slot Disk Backplane, SATA DVD
n/a
n/a
542-0355 [F]
Backplane Retainer Clip Kit
n/a
Grey 2U Backplane Retainer Clip n/a
Disks
Option #
Manufacturing
Description
Previous
XRA-SS2CF-146G10K
[S]
540-7355 [C]
146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
n/a
XRA-SS2CF-73G10K
[S]
540-7354 [C]
73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72G] n/a
Seagate ST973402SS [ST973402SSUN72G] n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G] n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G] n/a
n/a
XRA-SS2CF-73G15K
[S]
540-7361 [C]
73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks
n/a
Seagate ST973451SS [ST973451SSUN72G] n/a
n/a
XRA-ST2CF-32G2SSD
[S]
540-7841 [C]
32GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk) n/a
n/a
XRB-SS2CF-146G10K
[S]
540-7868 [C]
146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
Seagate ST9146803SS [ST914603SSUN146G] n/a
Hitachi HUC103014CSS600 [H103014SCSUN146G] n/a
n/a
n/a
540-7869 [C]
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9300603SS [ST930003SSUN300G] n/a
Hitachi HUC103030CSS600 [H103030SCSUN300G] n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
SG-XPCIEFCOE2-Q-SR
[S]
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
SG-XPCIEFCOE2-Q-TA
[S]
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
X1027A-Z
[S]
7054890
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
X1106A-Z
[S]
375-3585
[C]
Intel PRO/10GbE-SR x8 PCI Express
n/a
X1107A-Z
[S]
375-3586
[C]
Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket
n/a
X4446A-Z
[S]
7054739
[C]
PCI Express Quad Gigabit Ethernet UTP
375-3481
[C]
X5558A
[S]
7058828
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
375-3301
[C]
X5560A-Z
[S]
375-3495
[C]
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)
n/a
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
375-3301
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
n/a
n/a
375-3481
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
375-3681
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
n/a
375-3682
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
541-2068 2
[C]
CPU Dual Fan Assembly w/ Plastic Fingerguards
n/a
n/a
n/a
541-2211
[F]
Fan Power Board
n/a
n/a
n/a
n/a
n/a
541-2940 3
[C]
CPU Dual Fan Assembly w/ Metal Fingerguards
n/a
n/a
n/a
541-3290 4
[C]
CPU Dual Fan Assembly w/ Metal Fingerguards
n/a
Japan Servo
Fan, 60×38mm, 2U
n/a
2 Fan 541-2068 is used with 8-Slot PATA DVD Backplane.3 Fan 541-2940 is used with 8-Slot PATA DVD Backplane.4 Fan 541-3290 is used with 8-Slot SATA DVD Backplane.
Fibre Channel
Option #
Manufacturing
Description
Previous
SG-XPCIE1FC-EM4
[S]
375-3396
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053428
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-EM8-Z
[S]
371-4295
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053433
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF4
[S]
375-3355
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF8-Z
[S]
371-4324
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE2FC-EM4
[S]
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
7053427
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-EM8-Z
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF4
[S]
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-QF8-Z
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
I/O
Option #
Manufacturing
Description
Previous
n/a
341-4139
PCI Filler Panel
n/a
n/a
541-2299
[C]
x16/x4 Riser
n/a
Memory
Option #
Manufacturing
Description
Previous
X6380A
[S]
540-7346 [C]
Qty 2 - 1GB DIMMs (2GB Memory Assembly)
n/a
1GB Registered ECC DDR2-667/PC5300 DIMM n/a
X6381A
[S]
540-7347 [C]
Qty 2 - 2GB DIMMs (4GB Memory Assembly)
n/a
2GB Registered ECC DDR2-667/PC2-5300 DIMM n/a
X6382A
[S]
540-7348 [C]
Qty 2 - 4GB DIMMs (8GB Memory Assembly)
n/a
4GB Registered ECC DDR2-667/PC2-5300 DIMM n/a
X6437A
[S]
540-7820 [C]
Qty 2 - 8GB PC2-5300 DDR2 1.5V DIMMs (16GB Memory Assembly)
n/a
8GB PC2-5300 DDR2 1.5V DIMM n/a
n/a
371-3651
Memory Slot Filler, EBS93011010
n/a
n/a
540-7382
[C]
Memory Mezzanine Assembly
n/a
n/a
540-7592 5
[C]
Memory Riser Pair
n/a
Memory Riser 1, DAS93TH18D0 with Brackets n/a
Memory Riser 0, DA0S93TH8D0 with Brackets n/a
5 A 3mm allen wrench is needed to remove the four mounting screws to take these risers off the system board
Power
Option #
Manufacturing
Description
Previous
X6328A
[S]
300-1897
[C]
Type A217 1050 Watt AC Input Power Supply
n/a
X6385A
[S]
300-2138
[C]
Type A235 1100/1200 Watt AC Input Power Supply
n/a
n/a
300-2235
[C]
Type A249 1100/1200 Watt AC Input Power Supply
n/a
n/a
541-2073
[F]

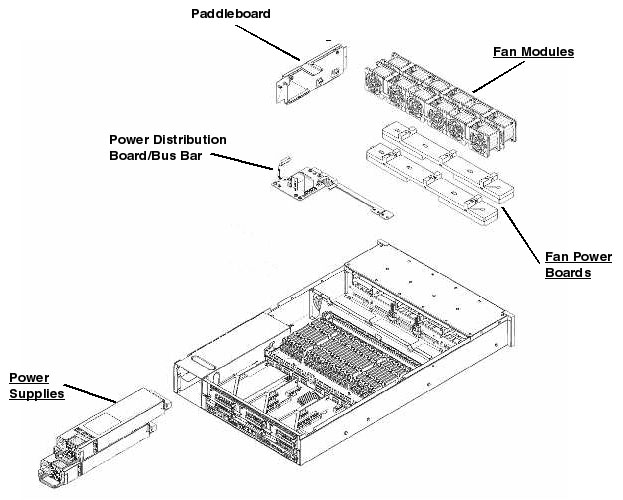

Power Distribution Board/Bus Bar Assembly
n/a
n/a
n/a
Horizontal Power Distribution Board n/a
Vertical Power Distribution Board n/a
n/a
541-4370 6
[F]
Power Distribution Board/Bus Bar Assembly
n/a
n/a
n/a
Vertical Power Distribution Board n/a
Horizontal Power Distribution Board n/a
6 PDB Assembly 541-4370 only supports a SATA DVD. A PATA DVD is not supported.
Rack
Option #
Manufacturing
Description
Previous
X6324A
[S]
371-2742 [C]
1U/2U Cable Management Arm
n/a
X6325A
[S]
371-2740 [C]
1U/2U Snap-In Slide Rail Rackmount Kit, 730mm
n/a
X6326A
[S]
371-2741 [C]
1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm
n/a
Removable Media
Option #
Manufacturing
Description
Previous
X6323A
[S]
541-2110
[C]
PATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
8x PATA DVD-Writer/24x CD-Writer n/a
n/a
n/a
X6386A
[S]
541-3493
[C]
Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
8x SATA DVD Writer/24x CD-Writer n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer
390-0443
n/a
SCSI
Option #
Manufacturing
Description
Previous
SG-XPCIE2SCSIU320Z
[S]
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
SG-XPCIE8SAS-E-Z
[S]
7050793
[C]
PCI Express 8-Port Host Adapter
375-3487
[C]
SG-XPCIE8SAS-I-Z
[S]
7064052
[C]
PCI Express 8-Port SAS Controller
371-3255
[C]
+
SGXPCIESAS-R-EXT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3537
[C]
8-Port SAS RAID External HBA
n/a
SGXPCIESAS-R-INT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3536
7
[C]
8-Port SAS Adaptec RAID HBA
n/a
n/a
371-2253
[C]
PCI Express 8-Port SAS Controller
n/a
n/a
371-3255
[C]
PCI Express 8-Port SAS Controller
371-2253
[C]
n/a
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3487
[C]
PCI Express 8-Port Host Adapter
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
380-1582
B15 Base Chassis Assembly
NS
PDB to System Board Ribbon Cable
NS
NS
NS
NS
NS
NS
NS
NS
Left Side Endcap Lightpipe Assembly
NS
NS
NS
NS
NS
Right Side Endcap Lightpipe
NS
NS
NS
Connector Board Assembly, PATA DVD
NS
NS
Connector Board (Paddle Card), PATA DVD
NS
NS
NS
NS
NS
NS
NS
Left Side Endcap Lightpipe Assembly
NS
NS
NS
NS
NS
Right Side Endcap Lightpipe
NS
NS
530-3972 [C]
4x Mini SAS Cable Pair
NS
541-2069 10
Enclosure Assembly
NS
NS
NS
NS
NS
NS
NS
NS
Left Side Endcap Lightpipe Assembly
NS
NS
NS
NS
NS
Right Side Endcap Lightpipe
NS
541-2636 [F]
Lightpipe Assembly
NS
Right Side Endcap Lightpipe
NS
Left Side Endcap Lightpipe Assembly
NS
NS
NS
NS
541-2738
PCI Cross Beam
NS
NS
NS
541-3513 [F]
Connector Board Assembly, SATA DVD
NS
NS
Connector Board (Paddle Card), SATA DVD
NS
8 Replaced by Chassis Subassembly 541-29589 Replaced by Chassis Subassembly 540-762810 Replaced by Enclosure Assembly 541-2956
