Sun Fire X4440 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 150-4277 [C] 3V Lithium coin battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
X4285A [S] 540-7602 [F] HyperTransport Bridge Card & Risers for Quad Core CPU n/a
  • 270-7916
  • Hyper-Transport Bridge Risers (×2)
 n/a
  • 501-7915
  • Hyper-Transport Bridge Card
 n/a
X5356A [S] 2.9GHz AMD Opteron Quad Core 8389
310-0128 Opteron Heatsink n/a
371-4611 [F] 2.9 GHz CPU, Opteron 8389 Quad Core, C2 Stepping, 75W n/a
X5360A [S] 16 DIMM Slot, 0MB, 2 × 2.9GHz AMD Opteron Quad Core 8389 CPU/Memory Mezzanine Card
310-0128 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-4611 [F] 2.9 GHz CPU, Opteron 8389 Quad Core, C2 Stepping, 75W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X5384A [S] 2.1GHz 6-Core AMD Opteron 8425 HE
310-0128 Opteron Heatsink n/a
371-4685 [F] 2.1GHz CPU, Opteron 8425 HE, 6-Core, D0 Stepping, 55W n/a
X5385A [S] 2.4GHz AMD Opteron 6-Core 8431
310-0128 Opteron Heatsink n/a
371-4683 [F] 2.4 GHz CPU, Opteron 8431 6-Core, D0 Stepping, 75W n/a
X5386A [S] 2.6GHz AMD Opteron 6-Core 8435
310-0128 Opteron Heatsink n/a
371-4684 [F] 2.6 GHz CPU, Opteron 8435 6-Core, D0 Stepping; 75W n/a
X5387A [S] 2.8GHz 6-Core AMD Opteron 8439 SE
310-0128 Opteron Heatsink n/a
371-4686 [F] 2.8GHz CPU, Opteron 8439 SE, 6-Core, D0 Stepping, 105W n/a
X5388A [S] 16 DIMM Slot, 0MB, 2 x 2.1GHz AMD Opteron 6-Core 8425 HE CPU/Memory Mezzanine Card
310-0128 Opteron Heatsink n/a
330-4622 Air Duct n/a
371-4685 [F] 2.1GHz CPU, Opteron 8425 HE, 6-Core, D0 Stepping, 55W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X5389A [S] 16 DIMM Slot, 0MB, 2 × 2.4 AMD Opteron 6-Core 8431 CPU/Memory Mezzanine Card
310-0128 Opteron Heatsink n/a
330-4622 Air Duct n/a
371-4683 [F] 2.4 GHz CPU, Opteron 8431 6-Core, D0 Stepping, 75W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X5390A [S] 16 DIMM Slot, 0MB, 2 × 2.6 AMD Opteron 6-Core 8435 CPU/Memory Mezzanine Card
310-0128 Opteron Heatsink n/a
330-4622 Air Duct n/a
371-4684 [F] 2.6 GHz CPU, Opteron 8435 6-Core, D0 Stepping; 75W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X5391A [S] 16 DIMM Slot, 0MB, 2 x 2.8GHz AMD Opteron 6-Core 8439 SE CPU/Memory Mezzanine Card
310-0128 Opteron Heatsink n/a
330-4622 Air Duct n/a
371-4686 [F] 2.8GHz CPU, Opteron 8439 SE, 6-Core, D0 Stepping, 105W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X6310A [S] 2.6GHz Dual-Core AMD Opteron 8218HE
310-0128 Opteron Heatsink n/a
371-2507 [F] 2.6 GHz CPU, Opteron 8218HE Dual Core, F3 Stepping, 68W n/a
X6311A [S] 3.0GHz AMD Opteron Dual Core 8222
310-0128 Opteron Heatsink n/a
371-2509 [F] 3.0 GHz CPU, Opteron 8222 Dual Core, F3 Stepping, 95W n/a
X6313A [S] 2.3GHz AMD Opteron Quad Core 8356
310-0128 Opteron Heatsink n/a
371-4044 [F] 2.3 GHz CPU, Opteron 8356 Quad Core, B3 Stepping, 75W n/a
X6314A [S] 16 DIMM Slot, 0MB, 2× 2.6GHz AMD Opteron Dual Core 8218HE CPU/Memory Mezzanine card
310-0128 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-2507 [F] 2.6 GHz CPU, Opteron 8218HE Dual Core, F3 Stepping, 68W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X6315A [S] 16 DIMM Slot, 0MB, 2× 3.0GHz AMD Opteron Dual Core 8222 CPU/Memory Mezzanine card
310-0128 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-2509 [F] 3.0 GHz CPU, Opteron 8222 Dual Core, F3 Stepping, 95W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X6317A [S] 16 DIMM Slot, 0MB, 2× 2.3GHz AMD Opteron Quad Core 8356 CPU/Memory Mezzanine Card
310-0128 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-4044 [F] 2.3 GHz CPU, Opteron 8356 Quad Core, B3 Stepping, 75W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X6336A [S] 3.2GHz AMD Opteron Dual Core 8224SE
310-0180 Opteron Heatsink n/a
371-3488 [F] Opteron Dual-Core 8224SE, 3.2 GHz, F3 Stepping, 120W CPU n/a
X6337A 1 [S] 2.5GHz AMD Opteron Quad Core 8360SE
310-0180 Opteron Heatsink n/a
371-4108 [F] Opteron Quad-Core 8360SE, 2.5 GHz, B3 Stepping, 105W CPU n/a
X6338A [S] 16 DIMM Slot, 0MB, 2× 3.2GHz AMD Opteron Dual-Core 8224SE CPU/Memory Mezzanine Card
310-0180 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-3488 [F] Opteron Dual-Core 8224SE, 3.2 GHz, F3 Stepping, 120W CPU n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X6339A 2 [S] 16 DIMM Slot, 0MB, 2× 2.5GHz AMD Opteron Quad Core 8360SE CPU/Memory Mezzanine card
310-0180 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-4108 [F] Opteron Quad-Core 8360SE, 2.5 GHz, B3 Stepping, 105W CPU n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X6340A [S] 1.9GHz AMD Opteron Quad Core 8347HE
310-0128 Opteron Heatsink n/a
371-4046 1.9 GHz CPU, Opteron 8347HE Quad Core, B3 Stepping, 55W n/a
X6342A [S] 2× 1.9GHz AMD Opteron Quad Core 8347SE
310-0128 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-4046 1.9 GHz CPU, Opteron 8347HE Quad Core, B3 Stepping, 55W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X8256A [S] 2.3 GHz CPU, Opteron 8376HE Quad Core
310-0128 Opteron Heatsink n/a
371-4503 [F] 2.3 GHz CPU, Opteron 8376HE Quad Core, C2 Stepping, 55W n/a
X8257A [S] 2.5GHz Quad-Core AMD Opteron 8380
310-0128 Opteron Heatsink n/a
371-4436 [F] 2.5 GHz CPU, Opteron 8380 Quad Core, C2 Stepping, 75W n/a
X8258A [S] 2.7GHz AMD Opteron Quad-Core 8384
310-0128 Opteron Heatsink n/a
371-4439 [F] 2.7 GHz CPU, Opteron 8384 Quad Core, C2 Stepping, 75W n/a
X8260A [S] 16 DIMM Slot, 0MB, 2 × 3.0GHz AMD Opteron Quad Core 8376HE CPU/Memory Mezzanine card
310-0128 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-4503 [F] 2.3 GHz CPU, Opteron 8376HE Quad Core, C2 Stepping, 55W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X8261A [S] 16 DIMM Slot, 0MB, 2 × 2.3GHz AMD Opteron Quad Core 8380 CPU/Memory Mezzanine Card
310-0128 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-4436 [F] 2.5 GHz CPU, Opteron 8380 Quad Core, C2 Stepping, 75W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
X8262A [S] 16 DIMM Slot, 0MB, 2 × 2.7GHz AMD Opteron Quad Core 8384 CPU/Memory Mezzanine Card
310-0128 Opteron Heatsink n/a
330-4644 [F] Air Duct n/a
371-4439 [F] 2.7 GHz CPU, Opteron 8384 Quad Core, C2 Stepping, 75W n/a
540-7953 [C] CPU/Memory Mezzanine Assembly 540-7597 [C]
  • 330-4622
  • Air Duct
 n/a
  • 541-2769
  • Tray
 n/a
541-2906 [C] HyperTransport Riser n/a
1 Opteron 8360SE Option X6337A requires Fan 541-3290 and Perforated Top Cover 541-3355. Fan and Top Cover upgrades are not available.
2 Opteron 8360SE Option X6339A requires Fan 541-3290 and Perforated Top Cover 541-3355. Fan and Top Cover upgrades are not available.
NOTE: Six-Core Opteron requires Motherboard 540-7952 and X4440 Server Software 3.x.
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
4282A [S] 596-7337 Internal SAS Cable Option n/a
  • 530-3894
  • 4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 560mm
n/a
  • 530-3895
  • 4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm
 n/a
4283A [S] 596-7338 Internal SATA Cable Option n/a
  • 530-3892
  • 4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm
 n/a
  • 530-3894
  • 4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 560mm
n/a
X311L [S] Localized Power Cord Kit - North America/Asia
180-1097 [C] Buy IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black n/a
X312E [S] Localized Power Code Kit - China
180-1982 [C] IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M n/a
X312F [S] Localized Power Cord Kit - Argentina
180-1999 [C] IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black n/a
X312G [S] Localized Power Cord Kit - Korea
180-1662 [C] Buy IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black n/a
X312L [S] Localized Power Cord Kit - Continental Europe
180-1993 [C] IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black n/a
X314L [S] Localized Power Cord Kit - Swiss
7049124 [C] IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black 180-1994 [C]
X317L [S] Localized Power Cord Kit - U.K.
180-1997 [C] Buy IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black n/a
X332A [S] Localized Power Cord Kit - Taiwan
180-2121 [C] IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black n/a
X383L [S] Localized Power Cord Kit - Danish
180-1995 [C] IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black n/a
X384L [S] Localized Power Cord Kit - Italian
180-1996 [C] IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black n/a
X386L [S] Localized Power Cord Kit - Australian
180-1998 [C] IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black n/a
n/a 180-1994 [C] IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
X1236A-Z [S] 375-3382 [C] Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile n/a
X4217A-Z [S] 375-3549 [C] Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile n/a
X6000A 3 [S] 375-3424 [C] PCI Express Sun Crypto Accelerator 6000 n/a
3 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 501-7730 [F] 8-Slot Disk Backplane, PATA DVD n/a
n/a 511-1256 [F] 8-Slot Disk Backplane, SATA DVD n/a
n/a 542-0355 [F] Backplane Retainer Clip Kit n/a
  • 330-5301
  • Grey 2U Backplane Retainer Clip
 n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
XRA-SS2CF-146G10K [S] 540-7355 [C] 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Fujitsu MBB2147RC [MBB2147RCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-SS2CF-73G10K [S] 540-7354 [C] 73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Fujitsu MAY2073RC [MAY2073RCSUN72G]
    (73GB - 10000 RPM - SAS Disk)
 n/a
  • Seagate ST973402SS [ST973402SSUN72G]
    (73GB - 10000 RPM - SAS Disk)
 n/a
  • Fujitsu MBB2073RC [MBB2073RCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101473CSS300 [H101473SCSUN72G]
    (73.4GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-SS2CF-73G15K [S] 540-7361 [C] 73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks n/a
  • Seagate ST973451SS [ST973451SSUN72G]
    (73GB - 15000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRA-ST2CF-32G2SSD [S] 540-7841 [C] 32GB Solid State SATA Drive Assembly n/a
  • Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
XRB-SS2CF-146G10K [S] 540-7868 [C] 146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9146802SS [ST914602SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC101414CSS300 [H101414SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Seagate ST9146803SS [ST914603SSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC103014CSS600 [H103014SCSUN146G]
    (146GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
n/a 540-7869 [C] 300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: n/a
  • Seagate ST9300603SS [ST930003SSUN300G]
    (300GB - 10000 RPM - SAS Disk)
 n/a
  • Hitachi HUC103030CSS600 [H103030SCSUN300G]
    (300GB - 10000 RPM - SAS Disk)
 n/a
  • Marlin 2.5" Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIEFCOE2-Q-SR [S] 7053422 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR 375-3681 [C]
SG-XPCIEFCOE2-Q-TA [S] 7053423 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach 375-3682 [C]
X1027A-Z [S] 7054890 [C] PCI Express Dual 10-Gigabit Ethernet Fiber 501-7283 [C]
X1106A-Z [S] 375-3585 [C] Intel PRO/10GbE-SR x8 PCI Express n/a
X1107A-Z [S] 375-3586 [C] Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket n/a
X4446A-Z [S] 7054739 [C] PCI Express Quad Gigabit Ethernet UTP 375-3481 [C]
X4447A-Z [S] 371-2348 [F] Bracket Standard n/a
7055021 [C] Quad Port GbE PCI Express, UTP 511-1422 [C]
  • 371-2207
  • Bracket Low-Profile
 n/a
X5558A [S] 7058828 [C] 10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) 375-3301 [C]
X5560A-Z [S] 375-3495 [C] 10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR) n/a
X7280A-2 [S] 371-0905 [C] PCI Express Dual Gigabit Ethernet UTP n/a
X7281A-2 [S] 7056733 [C] PCI Express Dual Gigabit Ethernet MMF 371-0904 [C]
n/a 371-0904 [C] PCI Express Dual Gigabit Ethernet MMF n/a
n/a 375-3301 [C] 10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) n/a
n/a 375-3481 [C] PCI Express Quad Gigabit Ethernet UTP n/a
n/a 375-3681 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR n/a
n/a 375-3682 [C] Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach n/a
n/a 501-7283 [C] PCI Express Dual 10-Gigabit Ethernet Fiber n/a
n/a 511-1422 [C] Quad Port GbE PCI Express, UTP n/a
  • 371-2207
  • Bracket Low-Profile
 n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-2211 [F] Fan Power Board n/a
  • 330-4463
  • Top Bracket
n/a
  • 330-4464
  • Bottom Bracket
 n/a
  • 501-7695
  • Fan Board
 n/a
n/a 541-2940 [C] CPU Dual Fan Assembly w/ Metal Fingerguards n/a
  • 310-0119
  • Delta Fan, 60×38mm, 2U
 n/a
n/a 541-3290 4 [C] CPU Dual Fan Assembly w/ Metal Fingerguards n/a
  • 310-0210
  • Japan Servo Fan, 60×38mm, 2U
n/a
4 Opteron 8360SE Option X6337A requires Fan 541-3290. Opteron 8360SE Option X6339A requires Fan 541-3290.
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE1FC-EM4 [S] 375-3396 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
7053428 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-EM8-Z [S] 371-4295 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
7053433 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-QF4 [S] 375-3355 [C] 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE1FC-QF8-Z [S] 371-4324 [C] 8Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE2FC-EM4 [S] 375-3397 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
7053427 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FC-EM8-Z [S] 7053434 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex 371-4306 [C]
SG-XPCIE2FC-QF4 [S] 375-3356 [C] 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FC-QF8-Z [S] 371-4325 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
n/a 371-4306 [C] 8Gigabit/Sec PCI Express Dual FC Host Adapter n/a
I/O
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 541-2109 [C] x8/x8 XAUI Riser Card Assembly n/a
  • 501-7719
  • x8/x8 XAUI Riser Card
 n/a
  • 541-2736
  • Riser Bracket
 n/a
n/a 541-2299 [C] x16/x4 Riser n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
X4287A [S] F541-3419 [C] 16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs) [SKU] n/a
  • 8GB DDR2-667 dual-rank Memory DIMM
 n/a
X6320A [S] F540-7598 [C] 2GB (2 × 1GB) Memory [SKU] n/a
  • 1 GB Registered ECC DDR2-667 DIMM
 n/a
X6321A [S] F540-7599 [C] 4GB (2 × 2GB) Memory [SKU] n/a
  • 2GB Registered ECC DDR2-667 DIMM
 n/a
X6321A-C [S] F540-7829 [C] 4GB (2 × 2GB) Memory [SKU] n/a
  • 2GB Registered ECC Single Rank DDR2-667 DIMM
 n/a
X6322A [S] F540-7600 [C] 8GB (2 × 4GB) Memory [SKU] n/a
  • 4GB Registered ECC DDR2-667 DIMM
 n/a
n/a 371-3651 Memory Slot Filler, EBS93011010 n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
X6328A [S] 300-1897 [C] Type A217 1050 Watt AC Input Power Supply n/a
n/a 541-2073 [F] Power Distribution Board/Bus Bar Assembly n/a
  • 341-3166
  • Bus Bar Left
 n/a
  • 341-3167
  • Bus Bar Right
 n/a
  • Horizontal Power Distribution Board
 n/a
  • Vertical Power Distribution Board
 n/a
n/a 541-4370 5 [F] Power Distribution Board/Bus Bar Assembly n/a
  • 341-3166
  • Bus Bar Left
 n/a
  • 341-3167
  • Bus Bar Right
 n/a
  • Vertical Power Distribution Board
 n/a
5 PDB Assembly 541-4370 only supports a SATA DVD. A PATA DVD is not supported.
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
X6324A [S] 371-2742 [C] 1U/2U Cable Management Arm n/a
X6325A [S] 371-2740 [C] 1U/2U Snap-In Slide Rail Rackmount Kit, 730mm n/a
X6326A [S] 371-2741 [C] 1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
X6323A [S] 541-2110 [C] PATA DVD-Writer/CD-Writer - USB Board Assembly n/a
  • 330-4418
  • DVD Tray
 n/a
  • 8x PATA DVD-Writer/24x CD-Writer
 n/a
  • 501-7698
  • USB Board
 n/a
  • 541-2111
  • DVD Bezel
 n/a
n/a 541-2732 [C] USB Assembly n/a
  • 330-4418
  • DVD Tray
 n/a
  • 341-4072
  • DVD Filler Panel
 n/a
  • 501-7698
  • USB Board
 n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIE2SCSIU320Z [S] 7050790 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter 375-3357 [C]
SG-XPCIE8SAS-E-Z [S] 7050793 [C] PCI Express 8-Port Host Adapter 375-3487 [C]
SG-XPCIE8SAS-I-Z [S] 7064052 [C] PCI Express 8-Port SAS Controller 371-3255 [C]
SGXPCIESAS-R-EXT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3537 [C] 8-Port SAS RAID External HBA n/a
SGXPCIESAS-R-INT-Z [S] 371-3253 [C] Lithium Ion Battery Module n/a
375-3536 6 [C] 8-Port SAS Adaptec RAID HBA n/a
n/a 371-2253 [C] PCI Express 8-Port SAS Controller n/a
n/a 371-3255 [C] PCI Express 8-Port SAS Controller 371-2253 [C]
n/a 375-3357 [C] Dual-Channel Ultra320 LVD SCSI PCI Express Adapter n/a
n/a 375-3487 [C] PCI Express 8-Port Host Adapter n/a
6 Reference Alert article
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 540-7952 7 [F] Motherboard n/a
  • 3V Lithium coin battery
 n/a
n/a 541-2297 [F] Motherboard n/a
  • 3V Lithium coin battery
 n/a
7 Six-Core Opteron requires Motherboard 540-7952 and X4440 Server Software 3.x.

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

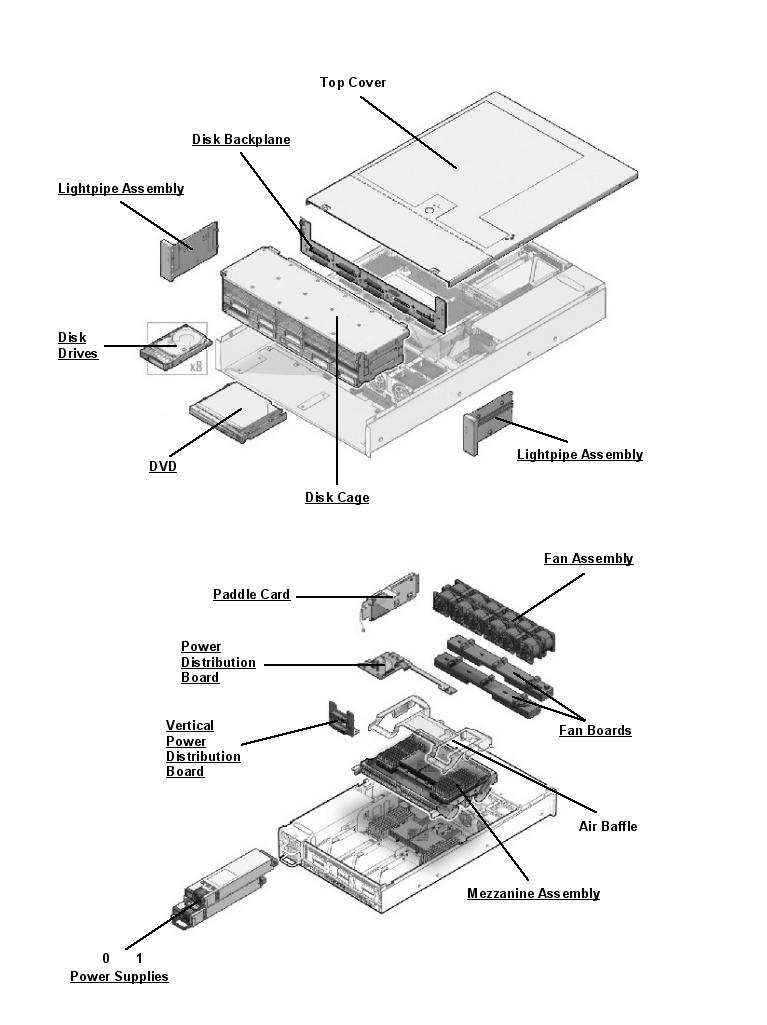

Sun Fire X4440 Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
NS 530-3927 [F] PDB to System Board Ribbon Cable
NS 540-7618 Chassis Subassembly
NS
  • 541-2956
  • Enclosure Subassembly
NS
    • 150-4065
    • Interlock Switch Magnet
NS
    • 541-2075 [F]
    • Bus Bar Set
NS
      • 341-3096
      • Long Red Bus Bar
NS
      • 341-3104
      • Short Blue Bus Bar
NS
    • Connector Board Assembly, PATA DVD
NS
      • 341-3097
      • Bracket
NS
      • 501-7720
      • Connector Board (Paddle Card), PATA DVD
NS
      • 530-3510
      • Interlock Switch Cable
NS
    • 541-2628
    • Chassis Subassembly
NS
      • 541-1988
      • Top Cover
NS
        • 150-4065
        • Interlock Switch Magnet
NS
      • 541-2212
      • Disk Cage
NS
      • 541-2958
      • Chassis Subassembly
NS 541-2636 [F] Lightpipe Assembly
NS
  • 330-4421
  • Right Side Endcap Lightpipe
NS
  • 541-2126
  • Left Side Endcap Lightpipe Assembly
NS
    • 330-4419
    • Lightpipe Button
NS
    • 330-4420
    • Lightpipe Holder
NS
    • 330-4424
    • Power Button
NS 541-3372 Perforated Enclosure Assembly
NS
  • 540-7788 8
  • Chassis Subassembly
NS
    • 541-2212
    • Disk Cage
NS
    • 541-3355
    • Perforated Top Cover
NS
      • 150-4065
      • Interlock Switch Magnet
NS
    • 541-3373
    • Base Chassis Assembly
NS
  • 541-2075 [F]
  • Bus Bar Set
NS
    • 341-3096
    • Long Red Bus Bar
NS
    • 341-3104
    • Short Blue Bus Bar
NS
  • Connector Board Assembly, PATA DVD
NS
    • 341-3097
    • Bracket
NS
    • 501-7720
    • Connector Board (Paddle Card), PATA DVD
NS
    • 530-3510
    • Interlock Switch Cable
NS 541-3513 [F] Connector Board Assembly, SATA DVD
NS
  • 341-3097
  • Bracket
NS
  • Connector Board (Paddle Card), SATA DVD
NS
  • 530-3510
  • Interlock Switch Cable
NS F540-7610 [F] SAS/SATA Cable Kit [SKU]
NS
  • 530-3892
  • 4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm
NS
  • 530-3894
  • 4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 560mm
NS
  • 530-3895
  • 4x Mini SAS Cable, SFF-8087 to SFF-8087, 530mm
8 Chassis 540-7788 production began in August 2008 with Opteron 2360SE.
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
