Sun Fire E20K (post July 2006) - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|
Backplane/Centerplane
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
370-5877 1
|
Starcat Service Cart, for storage of FRUs during centerplane replacement |
n/a |
| n/a |
501-7341 [F]
|
Logic Centerplane |
n/a |
| n/a |
501-7350
[F]
|
Power Centerplane |
n/a |
| n/a |
501-7535 |
Centerplane Support Board Assembly |
n/a |
|
- Centerplane Support Board FRU
|
n/a |
| n/a |
501-7540 |
System Expander Assembly |
n/a |
|
- System Expander Board FRU
|
n/a |
| n/a |
501-7686 [F]
|
Fan Backplane |
501-7346 [F]
|
| n/a |
540-6790 [F]
|
System Controller/Centerplane Support Board Carrier Plate |
n/a |
| n/a |
541-1396 2
[F]
|
Carrier Plate (Slots 1 2 3 6 7 8 10 11 12 15 16 17) |
n/a |
| n/a |
541-1398 3
|
Carrier Plate (Slots 0 9) |
n/a |
| n/a |
541-1399 4
[F]
|
Carrier Plate (Slots 4 5 13 14) |
n/a |
1 For centerplane replacements, it is highly recommended to order Starcat Service Carts. See How To article 1006123.1 - Service Cart Ordering Procedure
- 12K/20K: one service cart recommended
- 15K/25K: two service carts recommended
2 Required to support 1.2GHz and higher US IV Uniboards
3 Required to support 1.2GHz and higher US IV Uniboards
4 Required to support 1.2GHz and higher US IV Uniboards
NOTE: PN501-7551 was shipped in early release systems, but was replaced with PN501-7351, They use different ASICs.
|
|
Blade
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
XUSBRDT-5240-128Z
[S]
|
594-5253
|
Sun Fire USBRDT 5240 Uniboard with 128 GB Memory (32 x 4GB), 2 CPUs (1.2GHz, 8-core UltraSPARC T2+), and 2 Drives |
n/a |
|
XUSBRDT-5240-64Z
[S]
|
594-5252
|
Sun Fire USBRDT 5240 Uniboard with 64 GB Memory (32 x 4GB), 2 CPUs (1.2GHz, 8-core UltraSPARC T2+), and 2 Drives |
n/a |
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X3800A
[S]
|
AC Input Power Cable Option (North American, Asian) |
|
180-1943
[F]
|
AC Input Power Cable, Harting Han 6HsB to NEMA L6-30P (North American, Asian) |
n/a |
|
X3806A
[S]
|
Watertight Power Cord (US), Blue 30A Watertight IEC 309 to Han 6HsB |
|
180-2058
[F]
[S]
|
Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB (US) |
n/a |
|
X3807A
[S]
|
Watertight Power Cord (US), Blue 30A Watertight IEC 309 to Han 6HsB |
|
180-2059
[F]
[S]
|
Power Cord, Blue 30A Watertight IEC 309 to Han 6HsB (US) |
n/a |
|
X3808A
[S]
|
Watertight Power Cord (INTL), Blue 32A Watertight IEC 309 to Han 6HsB |
|
180-2063
[F]
|
Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB (INTL) |
n/a |
|
X3809A
[S]
|
Watertight Power Cord (INTL), Blue 32A Watertight IEC 309 to Han 6HsB |
|
180-2064
[F]
|
Power Cord, Blue 32A Watertight IEC 309 to Han 6HsB (INTL) |
n/a |
|
X3848A
[S]
|
AC Input Power Cable, Harting Han 6HsB to IEC309 (International) |
|
180-1944
[F]
|
AC Input Power Cable, Harting Han 6HsB to IEC309 (INTL) |
n/a |
|
X3858A
[S]
|
AC Power Cord, Han 6HsB to NEMA L6-30P (US) 4M |
|
180-1954
[F]
|
Han 6HsB to NEMA L6-30P,4M (US) |
n/a |
|
X3859A
[S]
|
Han 6HsB to Blue 32A IEC309 (Intl) |
|
180-1955
[F]
|
Han 6HsB to Blue 32A IEC309 (INTL) |
n/a |
|
Communication
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X1355A-2
[S]
|
371-0982 |
2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable |
n/a |
|
375-3296
[F]
|
Quad Port High Speed Serial Interface PCI-X (HSI/U) |
n/a |
|
Disks
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
390-0252
[F]
|
Fujitsu MAW3073NC [MAW3073NCSUN73G]
(73.4GB - 10000 RPM - SCSI Disk) |
n/a |
| n/a |
390-0265
[F]
|
Hitachi HUS103073FL3800 [HUS10733ASUN72]
(73.4GB - 10000 RPM - SCSI Disk) |
n/a |
| n/a |
390-0275
[F]
|
Seagate ST373207LC [ST373207LSUN72G]
(73.4GB - 10000 RPM - SCSI Disk) |
n/a |
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
4455A-4
[S]
|
375-3301
[F]
|
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) |
n/a |
|
501-7414
|
10Gb/sec PCI-X Ethernet Adapter |
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
4466A
[S]
|
375-3361
[F]
|
10Gb/sec XFP Optical Transceiver Single Mode Fibre |
n/a |
|
501-7414
|
10Gb/sec PCI-X Ethernet Adapter |
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
5544A-4
[S]
|
375-3301
[F]
|
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) |
n/a |
|
501-7413
[F]
|
10Gb PCI-X Ethernet Adapter |
n/a |
|
- Bracket Standard 10Gb PCI-X Ethernet
|
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
6644A
[S]
|
375-3361
[F]
|
10Gb/sec XFP Optical Transceiver Single Mode Fibre |
n/a |
|
501-7413
[F]
|
10Gb PCI-X Ethernet Adapter |
n/a |
|
- Bracket Standard 10Gb PCI-X Ethernet
|
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
X4150A-2
[S]
|
501-7415
[F]
|
GigaSwift Ethernet UTP (GCS) |
n/a |
|
X4151A-2
[S]
|
501-7430
[F]
|
GigaSwift Ethernet MMF (GFS) |
n/a |
|
X4445A
[S]
|
501-6738
[F]
|
Quad GigaSwift PCI-X Ethernet (QGE-X) |
n/a |
|
X5544A-4
[S]
|
10Gb PCI-X Ethernet Adapter, no transceiver |
|
501-7413
[F]
|
10Gb PCI-X Ethernet Adapter |
n/a |
|
- Bracket Standard 10Gb PCI-X Ethernet
|
n/a |
|
- Bracket Low-Profile 10Gb PCI-X Ethernet
|
n/a |
|
X5558A
[S]
|
7058828
[F]
|
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) |
375-3301
[F]
|
|
X5559A
[S]
|
375-3361
[F]
|
10Gb/sec XFP Optical Transceiver Single Mode Fibre |
n/a |
|
X5560A-Z
[S]
|
375-3495
[F]
|
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR) |
n/a |
|
X7285A
[S]
|
371-0911
[F]
|
Low Profile PCI-X Dual Gigabit Ethernet UTP |
n/a |
|
X7286A
[S]
|
371-0912
[F]
|
Low Profile PCI-X Single Gigabit Ethernet MMF |
n/a |
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
540-6795 [F]
|
Fan Tray |
n/a |
|
Fibre Channel
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCI1FC-EM2
[S]
|
375-3304
[F]
|
2Gb PCI-X Single FC Host Adapter |
n/a |
|
SG-XPCI1FC-EM4-Z
[S]
|
375-3398
[F]
|
4Gb PCI-X Single FC Host Adapter |
n/a |
|
SG-XPCI1FC-QF4
[S]
|
375-3354
[F]
|
4Gb PCI-X Single FC Host Adapter |
n/a |
|
SG-XPCI1FC-QL2
[S]
|
375-3383
[F]
|
2Gb PCI-X Single FC Host Adapter |
n/a |
|
SG-XPCI2FC-EM2
[S]
|
375-3305
[F]
|
2Gb PCI-X Dual FC Host Adapter |
n/a |
|
SG-XPCI2FC-EM4-Z
[S]
|
7058528
[F]
|
4Gb PCI-X Dual FC Host Adapter |
375-3399
[F]
|
|
SG-XPCI2FC-QF2-Z
[S]
|
375-3363
[F]
|
2Gb PCI/PCI-X Dual FC Host Adapter |
n/a |
|
|
n/a |
|
SG-XPCI2FC-QF4
[S]
|
7060890
[F]
|
4Gb PCI-X Dual FC Host Adapter |
375-3294
[F]
|
| n/a |
375-3294
[F]
|
4Gb PCI-X Dual FC Host Adapter |
n/a |
| n/a |
375-3399
[F]
|
4Gb PCI-X Dual FC Host Adapter |
n/a |
|
I/O
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X4576A-Z
[S]
|
501-7483
|
hsPCI+ Assembly |
n/a |
|
|
n/a |
|
|
n/a |
|
- hsPCI+ I/O Board without PCI Cassettes
|
n/a |
|
X4577A-Z
[S]
|
501-7895 |
hsPCI-X Assembly |
n/a |
|
|
n/a |
|
|
n/a |
|
- hsPCI-X I/O Board without Cassettes
|
501-7602
|
| n/a |
501-7602
|
hsPCI-X Assembly |
n/a |
|
- hsPCI-X I/O Board without Cassettes
|
n/a |
|
|
n/a |
|
|
n/a |
| n/a |
501-7874
[F]
|
hsPCI+ I/O Board without PCI Cassettes |
n/a |
5 501-7394 requires the following SMS 1.4.1 patches: 117371-07 or higher and 117866-09. SMS 1.5 has integrated support.
|
|
Memory
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X7051A-Z
[S]
|
2 GB (4 × 512MB SDRAM DIMMs) Memory Option |
|
501-7385
[F]
|
512MB SDRAM DIMM |
n/a |
|
X7056A-Z
[S]
|
4 GB (4 × 1GB SDRAM DIMMs) |
|
501-7386
[F]
|
1GB SDRAM DIMM |
n/a |
|
X7058A-Z
[S]
|
8 GB (4 × 2GB SDRAM DIMMs) Memory Option |
|
540-6489
[F]
|
2GB SDRAM DIMM Assembly |
n/a |
|
|
n/a |
| n/a |
F511-1030 6
[F]
|
Package of 25 × 512MB SDRAM DIMMs [SKU] |
n/a |
|
|
n/a |
| n/a |
F511-1031 7
[F]
|
Package of 25 × 1GB SDRAM DIMMs [SKU] |
n/a |
|
|
n/a |
6
See FAB article1000920.1 (formerly 201233) for details.
7 See FAB article1000920.1 (formerly 201233) for details.
NOTE: 1.8GHz US IV+ Uniboards and 2GB DIMMs minimally require SMS 1.6
|
|
Miscellaneous
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X4610A-Z
[S]
|
541-1418 [F]
|
Top (Slot 0) CPU Board Filler Panel |
n/a |
|
X4615A-Z
[S]
|
541-1417 [F]
|
Bottom (Slot 1) Filler Panel |
n/a |
| n/a |
340-5614 |
Top Honeycomb Filter |
n/a |
| n/a |
340-5615 |
Front Honeycomb Filter |
n/a |
| n/a |
341-2778 |
Air Filter Cover |
n/a |
| n/a |
370-4364 8
[F]
|
Air Filter (x6) |
n/a |
8 FRU includes 6 filters, enough to do the periodic maintenance.
|
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| C-HE-PWR2-KIT-Z 9
|
Power Supply Upgrade Kit for 1.95GHz USIV+ |
|
300-1813
[F]
|
Type A211 4000/5100 Watt AC Input Power Supply |
n/a |
| n/a |
300-1917
[F]
[S]
|
Type A196 4000/4700 Watt AC Input Power Supply
|
n/a |
9 Upgrade Kit required for 1.95GHz USIV+ on 12K, 15K, and first- and second-generation E20K and E25K.
|
|
Rack
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X8888-Z
[S]
|
594-2705 |
Cabinet Hold Down Kit |
n/a |
|
- Door Bracket Vertical Restraint
|
n/a |
|
|
n/a |
|
X8889-Z
[S]
|
594-2706 |
Cable Management Kit |
n/a |
| n/a |
541-1400 [F]
|
Kick Plate |
n/a |
| n/a |
541-1410 [F]
|
Front Door Assembly |
n/a |
| n/a |
541-1412 [F]
|
Rear Door Assembly |
n/a |
| n/a |
541-1698 [F]
|
Rear Plenum Panel |
n/a |
| n/a |
541-1699 [F]
|
Front Plenum Panel |
n/a |
|
Removable Media
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
380-1324
[F]
|
DAT 72 Internal Tape Drive, 5.25 inch/68 pin SCSI |
n/a |
| n/a |
390-0287
|
16x ATAPI DVD-ROM |
n/a |
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
501-7490 10
[F]
|
Dual GigabitEthernet / Dual SCSI PCI Adapter |
n/a |
|
System Board
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
XUS4BD-444-1950-Z
[S]
|
CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 16GB |
|
540-7132
|
CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 16GB |
n/a |
|
XUS4BD-444-1950C-Z
[S]
|
Capacity On Demand (COD) Uniboard w/4× US IV+ 1.95GHz, 16GB
|
|
540-7132
|
CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 16GB |
n/a |
|
XUS4BD-448-1950-Z
[S]
|
CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 32GB
|
|
540-7133
|
CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 32GB |
n/a |
|
XUS4BD-448-1950C-Z
[S]
|
Capacity On Demand (COD) Uniboard w/4× US IV+ 1.95GHz, 32GB |
|
540-7133
|
CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 32GB |
n/a |
|
XUS4BD-482-1800-Z
[S]
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz,
16GB |
|
540-6754
|
CPU/Memory Uniboard w/4× US IV+
1.8GHz, 16GB |
n/a |
|
540-7071
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 16GB |
n/a |
|
540-7201
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 16GB |
n/a |
|
540-7528
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 16GB |
n/a |
|
540-7535
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 16GB |
n/a |
|
XUS4BD-482-1800C-Z
[S]
|
Capacity On Demand (COD) Uniboard w/4×
unlicensed US IV+ 1.8GHz, 16GB |
|
540-6754
|
CPU/Memory Uniboard w/4× US IV+
1.8GHz, 16GB |
n/a |
|
540-7071
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 16GB |
n/a |
|
540-7201
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 16GB |
n/a |
|
540-7528
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 16GB |
n/a |
|
540-7535
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 16GB |
n/a |
|
XUS4BD-484-1350-Z
[S]
|
540-6831
|
CPU/Memory Uniboard w/ 4× US IV 1.35GHz, 32GB |
n/a |
|
XUS4BD-484-1800-Z
[S]
|
CPU/Memory Uniboard w/4× US IV+ Cu 1.8GHz,
32GB |
|
540-6755
|
CPU/Memory Uniboard w/4× US IV+
1.8GHz, 32GB |
n/a |
|
540-7072
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 32GB |
n/a |
|
540-7202
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 32GB |
n/a |
|
540-7529
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 32GB |
n/a |
|
540-7536
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 32GB |
n/a |
|
XUS4BD-484-1800C-Z
[S]
|
Capacity On Demand (COD) Uniboard w/ 4×
unlicensed US IV+ 1.8GHz, 32GB |
|
540-6755
|
CPU/Memory Uniboard w/4× US IV+
1.8GHz, 32GB |
n/a |
|
540-7072
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 32GB |
n/a |
|
540-7202
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 32GB |
n/a |
|
540-7529
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 32GB |
n/a |
|
540-7536
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 32GB |
n/a |
|
XUS4BD-488-1350-Z
[S]
|
CPU/Memory Uniboard w/4× US IV 1.35GHz,
64GB |
|
540-7024
|
CPU/Memory Uniboard w/4× US IV
1.35GHz, 64GB |
n/a |
|
XUS4BD-488-1350C-Z
[S]
|
Capacity On Demand (COD) Uniboard w/ 4×
unlicensed US IV 1.35GHz, 64GB |
|
540-7024
|
CPU/Memory Uniboard w/4× US IV
1.35GHz, 64GB |
n/a |
|
XUS4BD-488-1500-Z
[S]
|
CPU/Memory Uniboard w/4× US IV+ 1.5GHz,
64GB |
|
540-6802
|
CPU/Memory Uniboard w/4× US IV+
1.5GHz, 64GB |
n/a |
|
XUS4BD-488-1500C-Z
[S]
|
Capacity On Demand (COD) Uniboard w/ 4×
unlicensed US IV+ 1.5GHz, 64GB |
|
540-6802
|
CPU/Memory Uniboard w/4× US IV+
1.5GHz, 64GB |
n/a |
|
XUS4BD-488-1800-Z
[S]
|
CPU/Memory Uniboard w/4× US IV+ Cu 1.8GHz,
64GB |
|
540-6756
|
CPU/Memory Uniboard w/4× US IV+
1.8GHz, 64GB |
n/a |
|
540-7073
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 64GB |
n/a |
|
540-7203
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 64GB |
n/a |
|
540-7530
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 64GB |
n/a |
|
540-7537
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 64GB |
n/a |
|
XUS4BD-488-1800C-Z
[S]
|
Capacity On Demand (COD) Uniboard w/ 4×
unlicensed US IV+ 1.8GHz, 64GB |
|
540-6756
|
CPU/Memory Uniboard w/4× US IV+
1.8GHz, 64GB |
n/a |
|
540-7073
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 64GB |
n/a |
|
540-7203
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 64GB |
n/a |
|
540-7530
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 64GB |
n/a |
|
540-7537
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 64GB |
n/a |
| n/a |
540-6753
[F]
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz,
0MB |
n/a |
| n/a |
540-6803
[F]
|
CPU/Memory Uniboard w/ 4× US IV 1.35GHz, 0GB
|
n/a |
| n/a |
540-6832
[F]
|
CPU/Memory Uniboard w/ 4× US IV+ 1.5GHz, 0MB |
n/a |
| n/a |
540-7123
[F]
|
CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 0MB |
n/a |
| n/a |
540-7527
[F]
|
CPU/Memory Uniboard w/4× US IV+ 1.8GHz, 0MB |
n/a |
| n/a |
F540-7123
|
CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 0MB |
n/a |
|
- CPU/Memory Uniboard w/4× US IV+ 1.95GHz, 0MB
|
n/a |
NOTE: The minimum operating system required for the 1.5GHz UltraSPARC IV+ Uniboards is Solaris 9 9/05 or Solaris 10 3/05 HW1
NOTE: 1.95GHz US IV+ Uniboards require SMS 1.6 plus patches 123300-05 (or higher) and 124319-02 (or higher)
NOTE: The minimum operating system required for the 1.8GHz UltraSPARC IV+ Uniboards is Solaris 9 9/05 or Solaris 10 3/05 HW1
NOTE: COD Right-To-Use (RTU) licenses must be ordered separately to activate.
NOTE: 1.95GHz US IV+ Uniboards require OBP 5.20.4 or higher
NOTE: The minimum operating system required for the 1.35GHz UltraSPARC IV Uniboards is Solaris 8 2/04, Solaris 9 4/04 or Solaris 10 3/05 HW1
NOTE: 1.95GHz US IV+ Uniboards in 1st and 2nd generation E20K (-BASE, -BASE-2, and -BASE-2-Z) require Power Supply Upgrade C-HE-PWR2-KIT-Z
NOTE: 1.8GHz US IV+ Uniboards and 2GB DIMMs minimally require SMS 1.6
|
|
System Controller
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
330-4277 |
ATAPI to SCSI Adapter Bracket |
n/a |
| n/a |
501-7493 |
System Control Board Assembly |
n/a |
|
- 512MB Memory Module for System Controller,
Single Wide
|
n/a |
|
- System Controller Board FRU
|
n/a |
|
- System Controller Motherboard
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
|
- System Controller CPU Board (CP2140) with
650MHz CPU, 1GB Memory
|
n/a |
|
- System Controller CPU Board (CP2140) with
650MHz CPU, 0MB (requires memory)
|
n/a |
|
- System Controller CPU Board (CP2140) with
650MHz CPU, 0MB (requires memory)
|
n/a |
| n/a |
501-7745 |
System Control Board Assembly |
n/a |
|
- 512MB Memory Module for System Controller,
Single Wide
|
n/a |
|
- System Controller CPU Board (CP2140) with
650MHz CPU, 1GB Memory
|
n/a |
|
- System Controller CPU Board (CP2140) with
650MHz CPU, 0MB (requires memory)
|
n/a |
|
- System Controller CPU Board (CP2140) with
650MHz CPU, 0MB (requires memory)
|
n/a |
|
- System Controller Board FRU
|
n/a |
|
|
n/a |
|
- System Controller Motherboard
|
n/a |
|
|
n/a |
|
|
n/a |
|
|
n/a |
| n/a |
540-6752 11
|
System Control Peripheral Assembly with 2 disk drives, 1 tape drive, and 1 DVD-ROM |
n/a |
|
- ATAPI to SCSI Adapter Bracket
|
330-4277 |
|
|
n/a |
|
- System Control Peripheral Board (w/o drives)
|
n/a |
|
- System Control Peripheral Board SCSI Cable
|
n/a |
|
- Internal ATAPI DVD-ROM Power Cable
|
n/a |
|
- System Control Peripheral Board Power Cable
|
n/a |
11 2 disk drives, a tape drive, and a DVD-ROM are installed on the System Control Peripheral Board 501-7355. See Disks and Removable Media for additional information.
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|

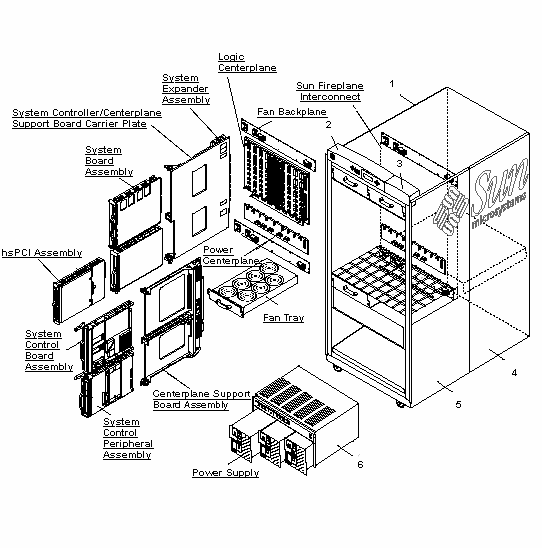

| Code |
Manufacturing Part# |
Description |
| - |
530-3623 [F]
|
Shielded RJ45 to RJ45 Cable, 4M |
| 1 |
541-1392 |
Processor Cabinet |
| 2 |
|
|
| 3 |
|
- Top Cap / Frame Manager Extension, 250mm
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
|
|
|
|
|
|
| 1 |
599-3114
|
Sun Fire E20K Assembly (E20K-BASE-2-Z) |
|
|
|
|
|
|
| 1 |
599-3269
|
Sun Fire E20K Assembly (E20K-BASE-3-Z) |
|
|
|
|
|
|
| 3 |
541-0098 13
[F]
|
Top Cap / Frame Manager Extension, 250mm |
| 4 |
341-2785 [F]
|
Right Logo Side Panel |
| 5 |
341-2784 [F]
|
Left Logo Side Panel |
| 6 |
371-1343 |
Power Supply Chassis |
| 6 |
371-2539 [F]
|
Power Supply Chassis |
| NS |
250-1453 |
9/16" x 1/2" Open End Wrench |
| NS |
250-1639 [F]
|
18 in. lb Preset Carrier Torque Screwdriver |
| NS |
250-1640 [F]
|
Magnetic Screwdriver with 7 1/4" Shaft for Fan Backplane |
| NS |
330-3797 |
AC Power Key / Door Key |
| NS |
530-2799 |
Ethernet Cable |
| NS |
530-3045 [F]
|
System Control Peripheral Board SCSI Cable |
| NS |
530-3618 [F]
|
System Control Serial Cable, DIN-8 to DB-25 |
| NS |
540-6751 |
Power Cabinet Assembly [Base 2] |
|
|
- Type A196 4000/4700 Watt AC Input Power Supply
|
|
|
|
|
|
|
| NS |
540-7141 14
|
Power Cabinet Assembly [Base 3] |
|
|
- Type A211 4000/5100 Watt AC Input Power Supply
|
| NS |
|
- A211 Power Supply Chassis
|
|
|
|
|
|
|
| NS |
565-1879 |
Cable Accessory Kit |
| NS |
|
|
| NS |
|
- Front Expander Power Cable
|
| NS |
|
- Rear Expander Power Cable
|
| NS |
|
- Upper Front Fan I2C Cable
|
| NS |
|
- Lower Front Fan I2C Cable
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
- Internal Frame Manager Power Cable
|
| NS |
|
- External Frame Manager Power Cable
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
| NS |
|
|
12 Can be substituted with 541-0098
13 Can be substituted with 541-1404
14 Required for 1.95GHz UltraSPARC IV+ Uniboards
|
|
