hsPCI-X I/O Board

Option 4577A-Z

501-7602 501-7357 501-7895 501-7873
PCI I/O Assembly
w 3.3v 501-7365
w 5.0v 501-7364
June 2006
see Notes		 FRU Assembly
w/o PCI Cassettes
270-6082-06
June 2006		 PCI I/O Assembly
w 3.3v 501-7365
w 5.0v 501-7364
May 2007		 FRU Assembly
w/o PCI Cassettes
270-6082-07
May 2007

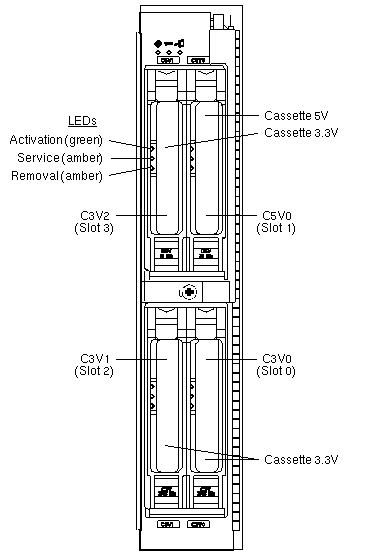

Front View

I/O Slots

SLOT NUMBER FREQUENCY BIT
SIZE		 COLOR
CODE		 VOLTAGE
C5V0 (Slot 1) 33 MHz 64-bit Blue 5VDC
C3V2 (Slot 3) 90 MHz 64-bit Yellow 3.3VDC
C3V0 (Slot 0) 90 MHz 64-bit Yellow 3.3VDC
C3V1 (Slot 2) 90 MHz 64-bit Yellow 3.3VDC

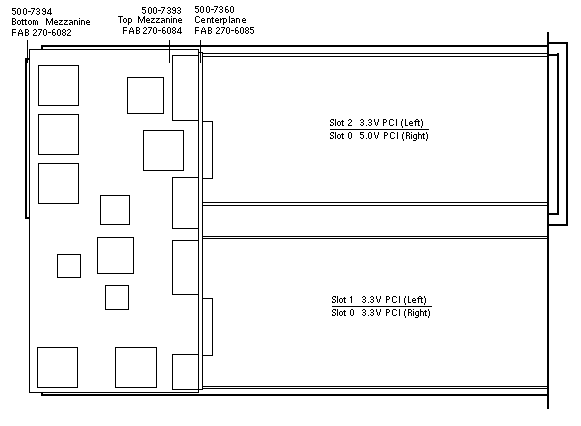

Side View

Notes

  1. When installing 501-7602 in the 15K, the system needs to be running SMS 1.6.

References

  1. Sun Fire 12K Server Documentation.
  2. Sun Fire 15K Server Documentation.
  3. Sun Fire E20K Server Documentation.
  4. Sun Fire E25K Server Documentation.
